In this article, we compare three models of DJI Mavic 3 series drones: the Mavic 3 Enterprise, Mavic 3 Thermal and Mavic 3 Multispectral. We present their features, functions and fields in which they can be used.
Drone DJI Mavic 3 Multispectral (Mavic 3M)
Producer:DJI
SKU:27191
4 772,90 €

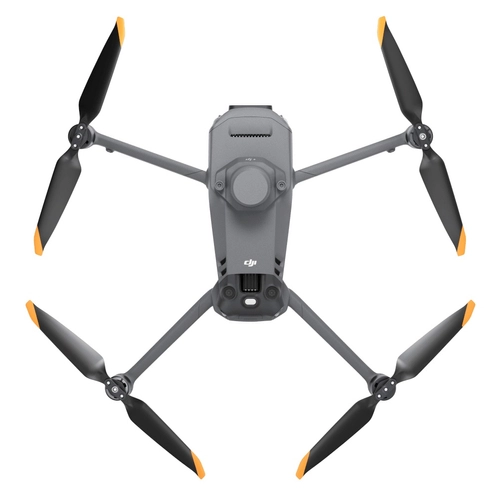

DJI Mavic 3 Multispectral
The Mavic 3 Multispectral sees in two ways. It combines an RGB camera with a multispectral camera for scanning and analyzing crop growth. Managing the entire agricultural production process requires high precision and data. This device provides both.
Compact and portable Foldable for easy storage | Multispectral camera 4x 5MP (G/R/RE/NIR) | RGB camera 20MP 4/3" CMOS with mechanical shutter |
Safe and stable Multi-directional obstacle avoidance. Image transmission distance up to 8km | Precise positioning Centimeter-level RTK positioning. Microsecond time synchronization | Efficient aerial measurements up to 200 hectares per lot |
What can DJI Mavic 3M do?
Incredibly precise
The newly upgraded imaging system features one 20MP RGB camera and as many as four 5MP multispectral cameras (green, red, red edge and near infrared) . It enables applications such as precision aerial surveying, crop growth monitoring, and natural resource research.
It has a sunlight sensor
The built-in sunlight sensor records the intensity of the sun's irradiance and saves it in the image file, allowing light compensation of the image data during 2D reconstruction. This results in more accurate NDVI results as well as better accuracy and consistency of data obtained over time.
Accurate image capturing every pixel
Mavic 3M with RTK module for centimeter-level positioning. Flight controls, camera and RTK synchronize within microseconds to precisely capture the location of each camera's imaging center. This allows the Mavic 3M to perform high-precision aerial surveys without the use of ground checkpoints.
Long battery life and performance
The battery lasts up to 43 minutes . This means that a maximum of 200 hectares of land can be mapped in one flight .
Stable signal with smooth image transmission
O3 transmission integrates two transmitting signals and four receiving signals to support very long transmission distances.
Omni-directional obstacle detection
The drone is equipped with multiple wide FOV vision sensors that accurately detect obstacles in all directions, enabling obstacle avoidance in all directions. Aerial field measurements can be easily performed on steep slopes.
Usage
1). Orchard mapping
The Mavic 3M enables aerial tracking in orchards, even on sloping terrain. Together with DJI Terra or DJI SmartFarm Platform, it can perform high-resolution orchard reconstructions, automatically identify the number of trees, distinguish trees from other obstacles or objects, and generate 3D operating routes for agricultural drones, making operations safer and more efficient.
2). Help with the farmland
Mavic 3M is used to obtain multispectral images of crops. DJI Terra or the DJI SmartFarm Platform can then generate NDVI maps and other vegetation indices, recording differences in crop potential and generating maps with recommendations that enable agricultural drones to perform variable rate applications. This ultimately allows users to reduce costs, increase efficiency and protect the environment.
3). Perfect for terrain reconnaissance
The Mavic 3M can perform automatic terrain recognition. Field images can be uploaded to DJI SmartFarm in real time via 4G network. It can detect abnormalities such as emergence shortages, weed pressure and crop lodging timely. It can also perform intelligent analytics such as identifying cotton seedlings and testing rice production, using AI identification to share real-time crop growth information, guide agronomic activities, and manage 70 hectares of farmland easily by one person .
4). Environmental monitoring and natural resources research
The Mavic 3M can also be used in environmental and natural resource studies, such as water enrichment monitoring, forest distribution studies, urban landscaping studies, and more.
It has an open ecosystem:
- Cloud API
The 3M Mavic can be directly connected to a third-party cloud platform via the built-in DJI Cloud API Remote 2 based on the MQTT protocol . There is no need to create a separate application to enable transmission of UAV equipment information, live broadcast, photographic data and other information.
- MSDK
The Mavic 3M supports Mobile SDK 5 (MSDK5) with a fully open-source production code sample. MSDK5 enables the development of a proprietary control application for UAV field patrols, smart metering and other scenarios, making it more user-friendly.
Kit composition:
- Mavic 3 Multispectral Drone
- RTK module
- DJI Care Enterprise Basic for 1 year
- DJI SmartFarm Platform for 1 year
- DJI Terra software for 3 months
- 1x Drone battery
- DJI RC Pro Enterprise control apparatus
- USB-C wall charger
- 2x USB-C cable
- Power cable
- Camera cover
- 3x pair of spare propellers
- Allen key
- 64GB memory card
- Transport case
| Net weight (with propellers and RTK module) | 951 g |
|---|---|
| Maximum take-off weight | 1050g |
| Dimensions | Folded (without propellers): 223×96.3×122.2 mm (length × width × height) Unfolded (without propellers): 347.5×283×139.6 mm (length × width × height) |
| Diagonal | 380.1mm |
| Maximum rate of climb | 6 m/s (Normal Mode) 8 m/s (Sport Mode) |
| Maximum descent speed | 6 m/s (S-Mode) 6 m/s (N mode) |
| flight speed (no wind) | 15 m/s (N mode) Forward: 21 m/s, Sideways: 20 m/s, Backward: 19 m/s (S Mode) [2] |
| resistance to wind speed | 12 m/s |
| Maximum take-off altitude above sea level | 6000 m (without payload) |
| flight time (no wind) | up to 43 minutes |
| hover time (no wind) | up to 38 minutes |
| Maximum flight distance | up to 8 km (CE) |
| Maximum angle of inclination | 30° (N Mode) 35° (S-mode) |
| Maximum angular velocity | 200°/sec |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS is only supported when RTK is enabled) |
| Hover accuracy | Vertical: ±0.1 m (with vision system); ±0.5m (with GNSS); ±0.1m (with RTK) Horizontal: ±0.3 m (with vision system); ±0.5 m (with high precision positioning system); ±0.1m (with RTK) |
| Operating temperature range | -10° to 40° C |
| Internal storage | Lack |
| engine model | 2008 |
| Propeller model | 9453F - Enterprise |
| Light sensor | Built into the drone |
Specification Drone DJI Mavic 3 Multispectral (Mavic 3M)
Brand
DJI
Symbol
CB.202308110694
Warranty
24 months
Status
New
