RadioMaster ER8G 2.4 GHz ELRS PWM receiver
RadioMaster ER8G 2.4 GHz ELRS PWM receiver
The RadioMaster ER series of PWM receivers is based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response and very long range, providing a completely new experience in your hobby.
The ER8G receiver has been specially designed for glider pilots who require a compact and slim receiver. It can support up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at a time). The ER8G has a dual antenna with telemetry power up to 100 mW and can be used with a 1S Lipo receiver battery.
The ER8G receiver has the same functionality as the ER8GV, just without the built-in Vario for competitions that prohibit the use of Vario or simply for users who do not need Vario in their receiver.
Characteristics
- Based on the revolutionary ExpressLRS system
- High performance, high reliability, flexible configuration, fast response and very long range
- Support for 8 PWM channels
- Optimized, grounded PCB design
- Automatic telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- Reserve a 4-pin CRSF input port
- High-quality 2.54 mm connector
- Standard 20 cm high sensitivity antenna
- For fixed wing aircraft and gliders
- Compatible with all ExpressLRS 2.4 GHz modules and transmitters with built-in ExpressLRS 2.4 GHz
Specification (ER8G)
- Item: ER8G 2.4 GHz ELRS PWM Receiver
- Power supply: DC 3.5 - 8.4 V
- Antenna type: 20cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output Channel: 8CH PWM
- Serial output: CRSF / Sbus
- Telemetry power : 100 mw maximum (LUA can be set)
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 12 grams
- Dimensions: 60*13.5*13mm
- Firmware: Device category: Radiomaster 2.4 Ghz / Device: RadioMaster ER8- GRAM 2.4 GHz Diversity+8xPWM RX

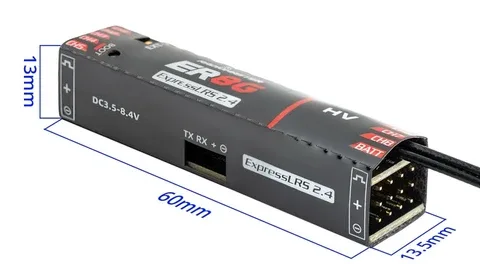

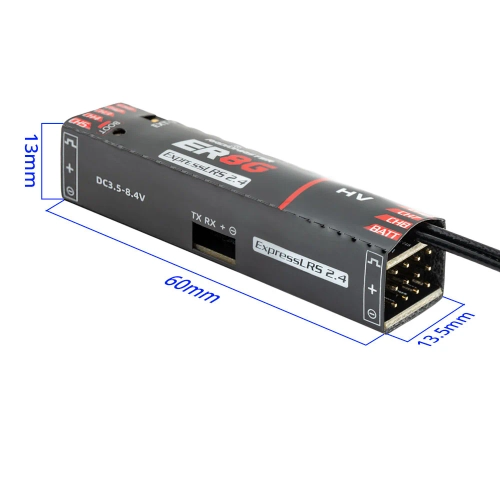

Size
Parcel includes
- 1 * ER8G 2.4GHz ELRS PWM Receiver
- 2*heat shrink tube
- 1 * Voltage Telemetry Cable (Type A)
- 1 * CRSF Cable
- 1 * ELRS-RX-SBUS Cable
- 1 * User Card
