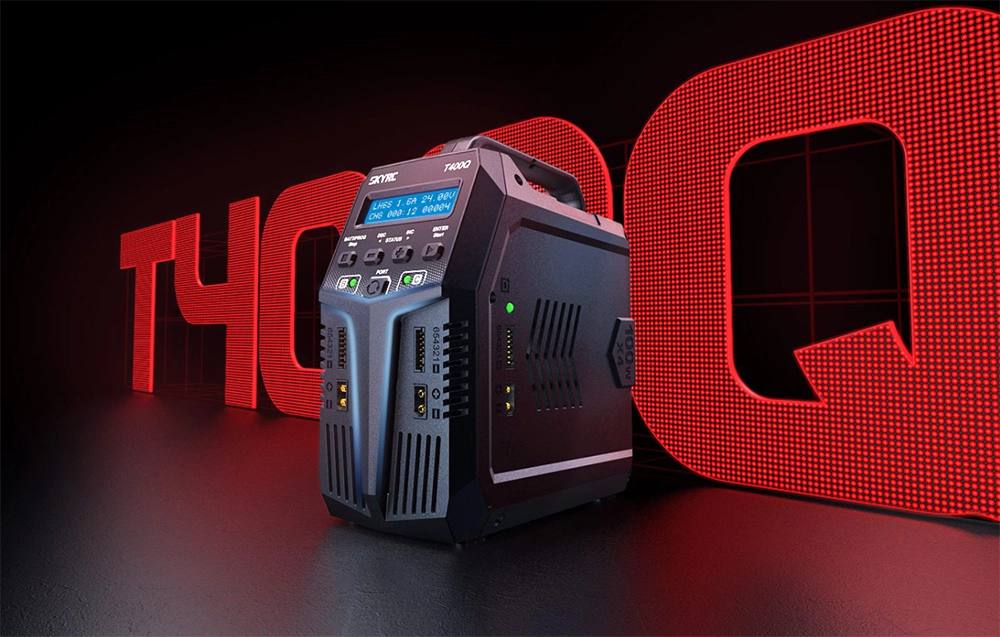

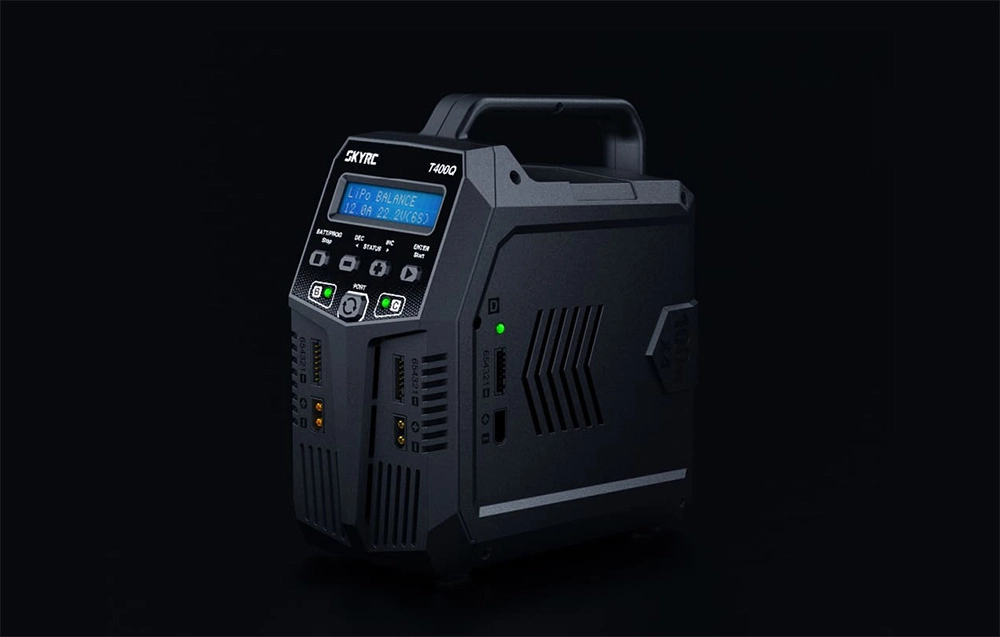

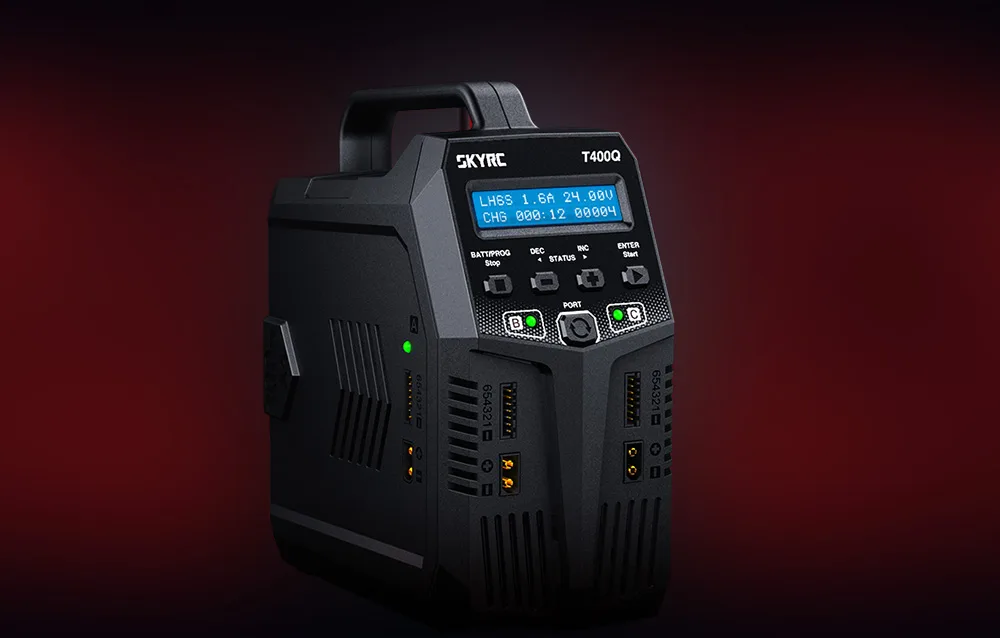

SkyRC T400Q charger
SkyRC T400Q charger
The SkyRC T400Q four-channel charger is a must-have gadget for every person involved in modeling! The charger guarantees convenient charging of multiple devices at the same time. It is equipped with 4 ports that allow discharging and charging with a maximum power of up to 100 W and a charging current of 12 A. It automatically adjusts the charging intensity of devices and has a practical charging mode at low temperatures. It is extremely easy to use, and the ergonomic design allows you to easily transport it to any place!
High performance
The T400Q has 4 independent charging inputs that you can easily use at the same time! It provides up to 100 W of power and 12 A for each circuit, thanks to which you can quickly charge the receiver's battery or 6S lithium batteries. In addition, thanks to the gold-plated spring connections, it is able to handle a maximum current of 60A for extended periods of time without exceeding 80°C.

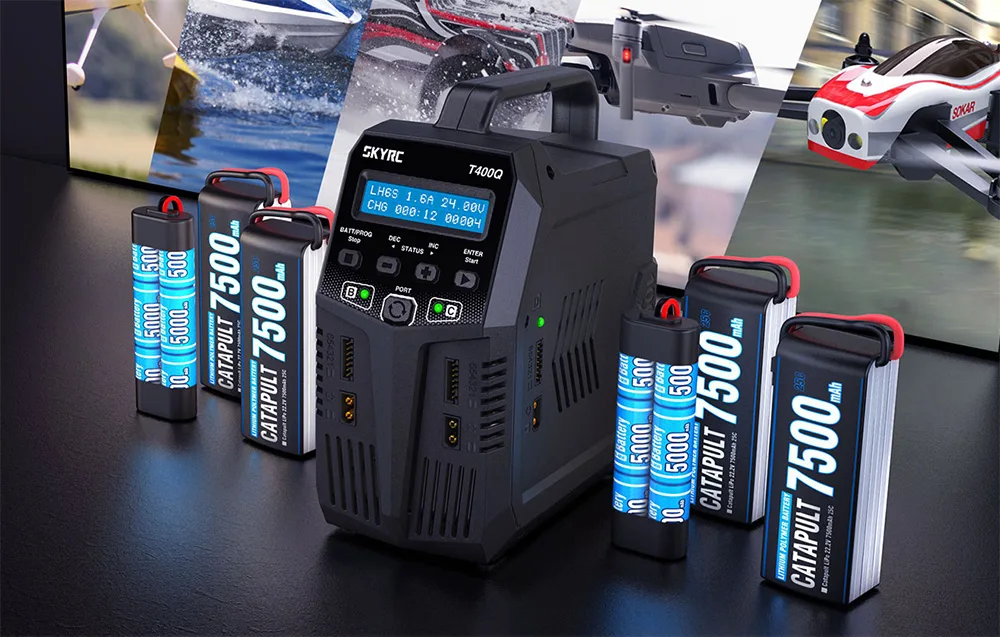

Wide Compatibility
The SkyRc charger is adapted to a variety of batteries. Its charging algorithm is compatible with many popular types of batteries available on the market - LiPo, Lilon, LiHV, NiMH, NiCd and Pb. In addition, the built-in XT60 connector effectively prevents reversed polarity, ensuring reliable operation.

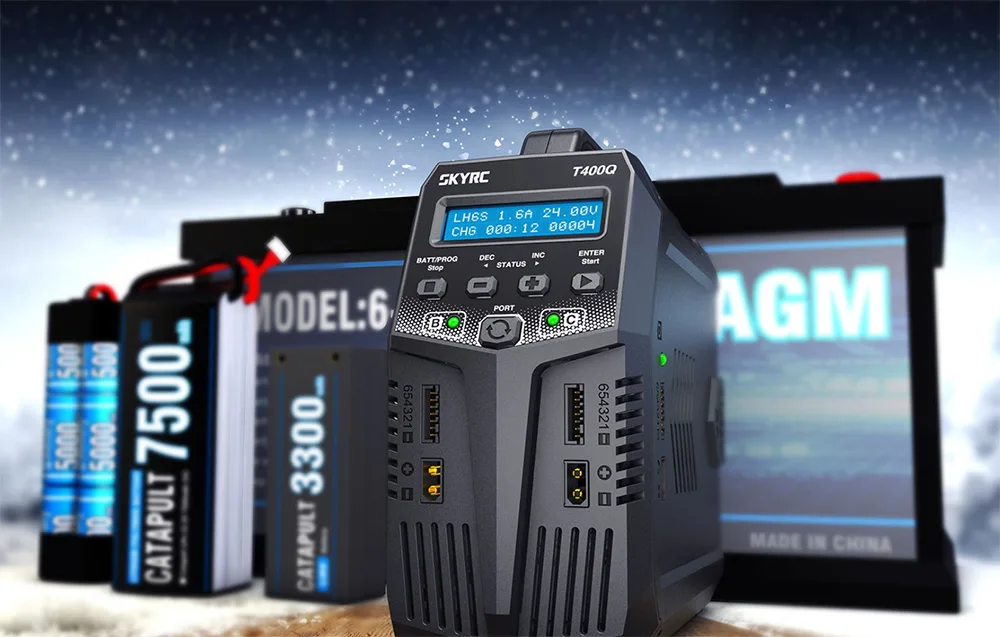

Ready for winter
The charger is equipped with AGM and Pb charging mode, which will easily supply energy to a discharged battery (Pb mode is not available for AGM batteries). In addition, it has a special charging function at low temperatures, so you don't have to worry about problems with the battery of your model car or plane in cold weather!

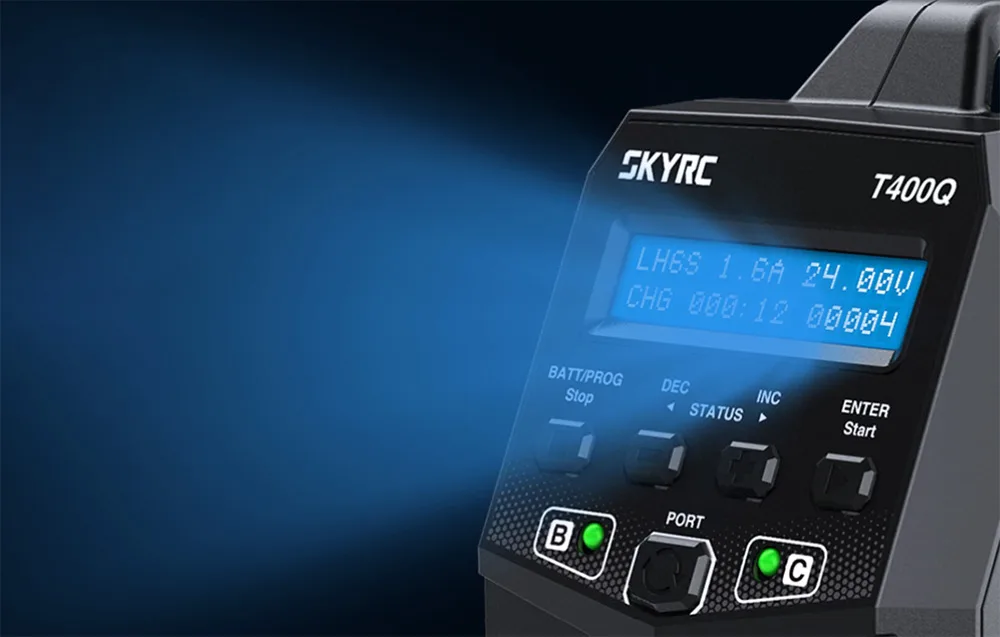

Easy to use
The charger is extremely easy to use! Thanks to the intuitive buttons and LCD display, everyone can easily handle it - even inexperienced users. You can easily adjust the values using the INC or DEC keys. However, to start loading, just press the Enter key. After just one use, you will have battery operation at your fingertips! In addition, the device allows you to adjust the end voltage (only for advanced users).

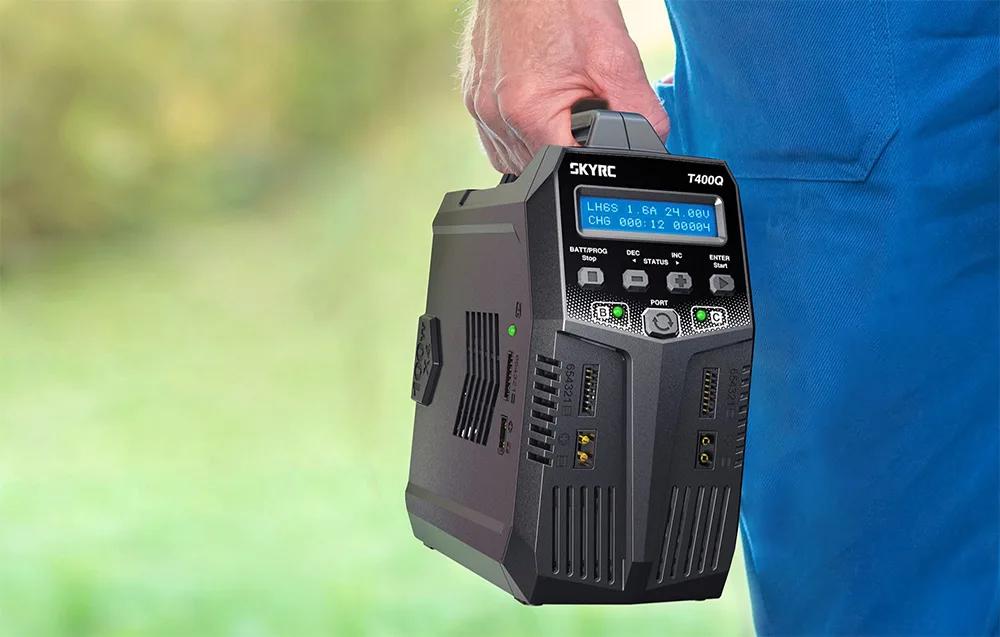

Ergonomic design
Minimalist design combined with functionality. The compact design of the charger means that it does not take up much space. In addition, the device is equipped with a practical handle that allows convenient transport.
Safe use
The T400Q is equipped with a practical AUTO mode that automatically adjusts the current during charging or discharging, which can lead to explosions due to improper use. In the case of lithium batteries, this effectively prevents overcharging. What's more, the device can automatically disconnect the circuit, as well as alarm when abnormal operation is detected. You can easily configure all available settings yourself.
Specification:
Producer | SkyRC |
---|---|
Model | T400Q |
Dimensions | 186 x 103 x 209mm |
Libra | 1610g |
Housing material | Plastics |
Display type | 2 x 16 LCDs |
Display backlight | Blue |
charging power | 100Wx4 |
discharge power | 10W |
DC input voltage | 11-18V |
AC input voltage | 100-240V 50/60HZ |
Battery types | LiPo/LiHV.LiFe/Lilon: 1-6S, NiMH/NiCd: 1-15S, Pb: 2-20V |
Battery capacity range | NiMH/NiCd: 100-50000mAh LiPo/LiFe/LiHV: 100-50000mAh Pb: 100-50000mAh |
charging voltage | NiMH/NiCd: Delta peak detection, LiPo: 4.18-4.25 V/S, LiFe: 3.58-3.7 V/S, Lilon: 4.08-4.2 V/S, LiHV: 4.25-4.35 V/S, Pb: 1.8-2.0 V/S |
Discharge cut-off voltage | NiMH/NiCd: 0.1-1.1V/S, LiPo: 3.0-3.3V/S, LiFe: 2.6-2.0V/S, Lilon: 2.9-3.2V/S, LiHV: 3.1-3.4V/S |
Charging voltage range | 0.1-26.1V/cell |
charging current | 0.1A - 12.0A |
discharge current | 0.1A - 12.0A |
balance current | 500mA |
Safety time | 1 ~ 720 mins & off (default: 120 mins) |
Working temperature | 0°C-40°C |
Working moisture | 0%-75% |
storage temperature | -10°C-70°C |
storage moisture | 0%-75% |
