- Highly efficient cooling system
- Wi-Fi and Bluetooth support
- Packet rate up to F-1000 Hz
- T-type antenna included
- Thanks to the Nano connector, it supports Zorro radio
Specification

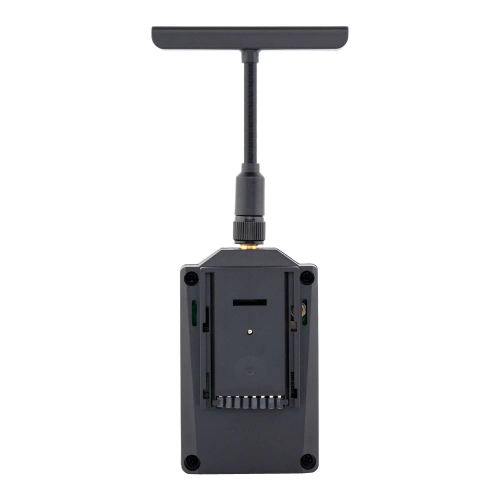

- Item: Ranger Nano
- Regulatory domain: ISM2400
- MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency range: 2400MHz - 2480MHz
- Maximum packet rate: 500 Hz/F-1000 Hz (F-1000 Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25 Hz
- RF output power: default 100mW
- Wi-Fi Support: Yes
- Bluetooth support: Yes
- XT30 Supply voltage: DC 6V - 16.8V
- Weight: 48g (with antenna) / 39g (without antenna)
- Dimensions: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
Size

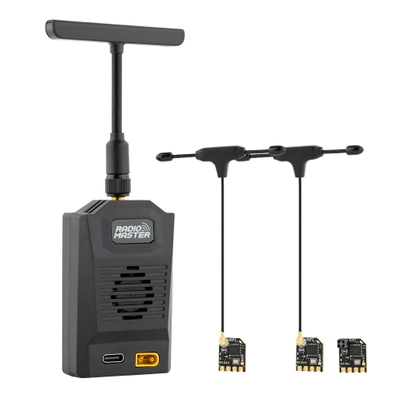

Parcel includes
- 1 * Ranger Nano Module
- 1 * T antenna
- 2*RP1 ExpressLRS 2.4GHz Nano Receiver
- 1 * RP2 ExpressLRS 2.4GHz Nano Receiver
