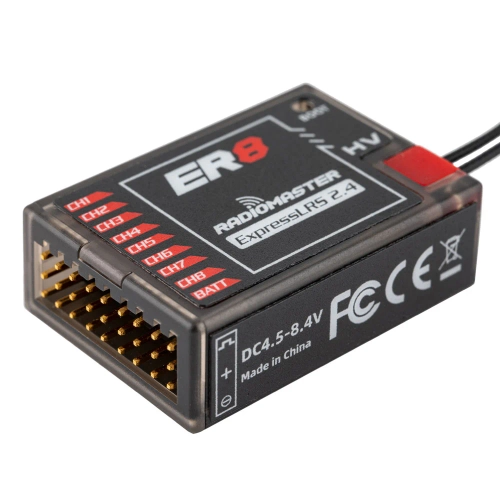

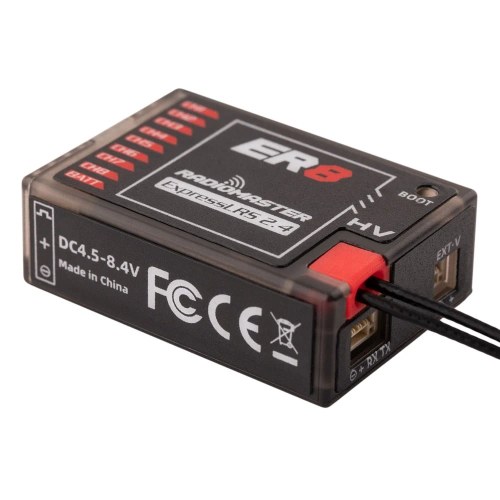

RadioMaster PWM ER8 2.4 GHz ELRS receiver

RadioMaster PWM ER8 2.4 GHz ELRS receiver

The RadioMaster ER series of PWM receivers is based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response and very long range, providing a completely new experience in your hobby.

The Radiomaster ER8 receiver has been specially designed for fixed-wing aircraft users. It can support up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. To facilitate subsequent expansion of telemetry sensors, a 4-wire CRSF interface is provided. ER8 is equipped with a dual antenna with telemetry power of up to 100 mW. The receiver housing adopts one-piece molding process with high structural strength.

Characteristics

• Based on the revolutionary ExpressLRS system
• High performance, high reliability, flexible configuration, fast response and very long range
• Support for 8 PWM channels
• Optimized, grounded PCB design
• Automatic telemetry of external battery voltage or built-in receiver voltage
• Supports Wi-Fi updates and WEBUI configuration
• High-quality 2.54 mm connector
• Standard 20 cm high sensitivity antenna
• 4-pin CRSF input port
• Shell adopts one-piece molding process with high structural strength
• For fixed-wing aircraft and more
• Compatible with all ExpressLRS 2.4 GHz modules and transmitters with built-in ExpressLRS 2.4 GHz

Specification

• Item: ER8 2.4 GHz ELRS PWM Receiver
• Power supply: DC 4.5 - 8.4V
• Antenna type: 20cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output Channel: 8CH PWM
• Serial output: CRSF / Sbus
• Telemetry power: maximum 100 mw (LUA adjustable)
• Battery voltage detection range: DC 4.0 - 35V
• Bus interface: CRSF
• Weight: 16.5 grams
• Size: 43*30*15mm
• Firmware: Device category: Radiomaster 2.4 Ghz / Device: RadioMaster ER8 2.4 GHz Diversity+8xPWM RX

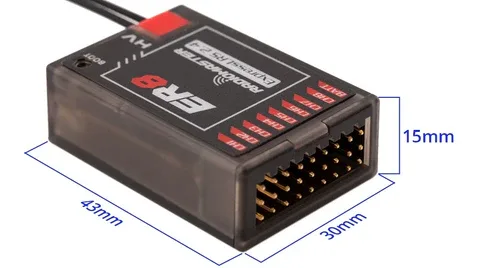

Size
