Oculus M370S - Multibeam Chasing Sonar

Oculus M370S - Multi-beam imaging sonar for Chasing units

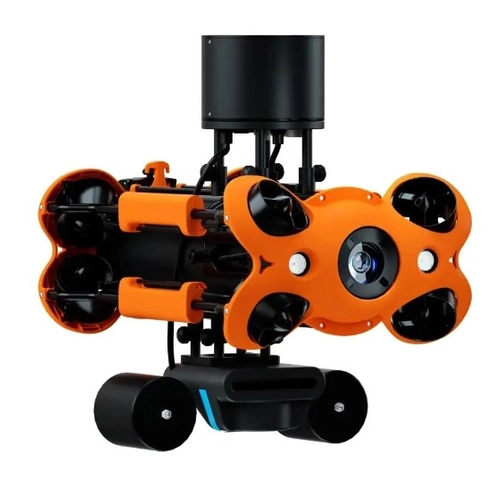

Sonar has a range of up to 200 meters. The single-frequency Oculus M370S is a multibeam imaging sonar. Versatile for search and rescue operations. Trouble-free mounting on the Chasing drone unit due to the low weight of the device.

Product features:

• Maximum depth (500 meters)
• Anodized aluminum housing
• Operating temperature from -5 to +35 degrees Celsius
• Integrated pressure and temperature gauge
• Operating frequency 375kHz
• Maximum range up to 200 meters
• Minimum range of 20 centimeters
• Low weight (less than 400g in water)
• Ideal tool for mounting on smaller units such as Chasing M2, Chasing M2 Pro, Chasing M2 Pro Max

For full functionality, you must have the manufacturer's software installed on your mobile device:

Click to go to the manufacturer's website

Specification:

• Dimensions: 125mm (L) x 122mm (W) x 62mm (H)
• Construction: Anodized Aluminum
• Weight: 980g (air), 360g (water)
• Maximum depth: 500m
• temp. Range (operation): -5°C to +35°C
• temp. Rating (storage): -20°C to +50°C
• Operating frequency: 375kHz
• Range (maximum): 200m
• Range (minimum): 0.2m
• Range resolution: 8mm
• Update rate (max.): 40 Hz
• Horizontal aperture: 130°
• Vertical aperture: 20°
• Number of beams (max.): 256
• Angular resolution: 2°
• Beam separation: 0.5°
• Connector: Impulse IE55 series, 6-pin
• Communications: 4-wire 100-BaseT Ethernet, 2-wire DSL extender module
• Supply voltage: 12 V to 32 V DC non-isolated
• Power consumption: 10W to 35W (depending on model and range*)
• Integrated sensors: water pressure and temperature (for calculating the speed of sound)
