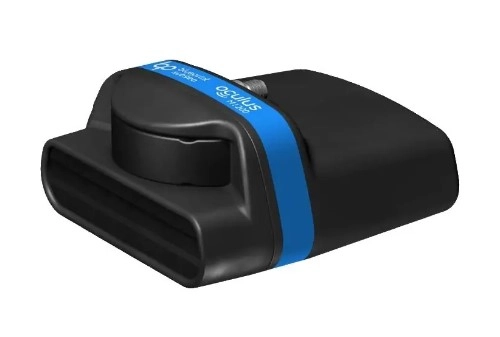

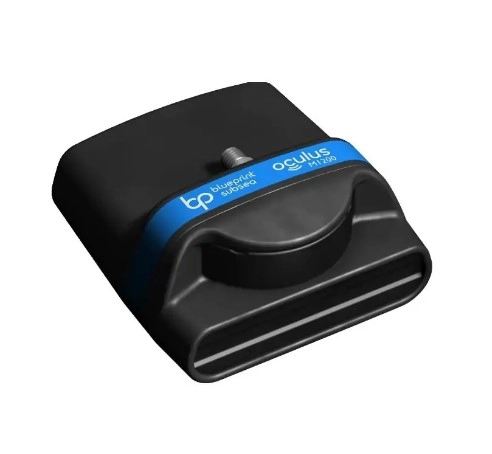

Oculus M1200D - Multibeam Chasing Sonar

Oculus M1200D - Multi-beam imaging sonar for Chasing units

Oculus M1200D has the ability to work on two different frequencies, i.e. 1.2 MHz and 2.1 MHz at maximum distances of 40m and 10 meters. Thanks to this application, the device can image much more accurately at a shorter distance or achieve a longer range at the expense of reducing the quality of imaging.

Product features:

• Maximum working depth 500 meters
• Work at temperatures from -5 to +35 degrees Celsius
• Low weight 980g in air, 360g in water
• Maximum working range 40m/10m for 1.2MHz/2.1MHz
• Minimum range 0.1m
• Maximum refresh rate 40 Hz
• Number of bundles 512
• Beam separation 0.25 degree / 0.16 degree

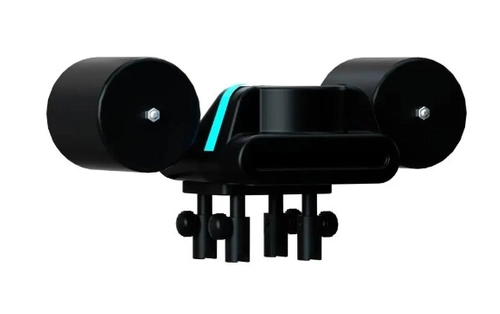

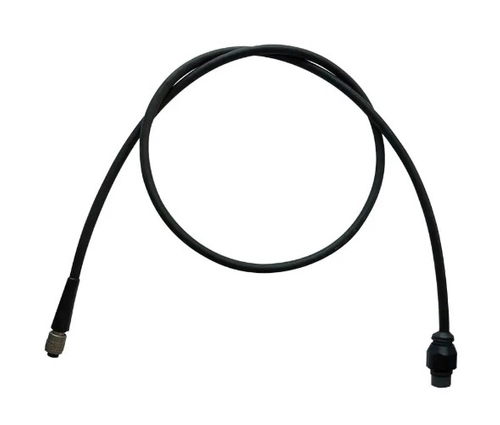

• The set includes sonar, connecting cables and a mounting system for the Chasing unit
• The most detailed M family sonar from Oculus

For full functionality, you must have the manufacturer's software installed on your mobile device:

Click to go to the manufacturer's website

Specification:

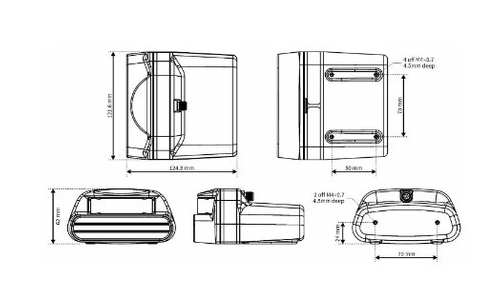

• Dimensions: 125mm (L) x 122mm (W) x 62mm (H)
• Construction: Anodized Aluminum
• Weight: 980g (in air), 360g (in water)
• max. depth: 500m
• temp. Range (operation): -5°C to +35°C
• temp. Rating (storage): -20°C to +50°C
• Operating frequency: 1.2MHz / 2.1MHz
• Range (maximum): 40m / 10m
• Range (minimum): 0.1m
• Range resolution: 2.5mm / 2.5mm
• Update rate (max.): 40 Hz
• Horizontal Aperture: 130°/60°
• Vertical aperture: 20°/12°
• Number of beams (max.): 512
• Angular resolution: 0.6°/0.4°
• Beam separation: 0.25° / 0.16°
• Connector: Impulse IE55 series, 6-pin
• Communications: 4-wire 100-BaseT Ethernet, 2-wire DSL extender module
• Supply voltage: 12 V to 32 V DC non-isolated
• Power consumption: 10W to 35W (depending on model and range*)
• Integrated sensors: water pressure and temperature (for calculating the speed of sound)
