Habotest HT208D digital clamp meter
Habotest HT208D digital clamp meter

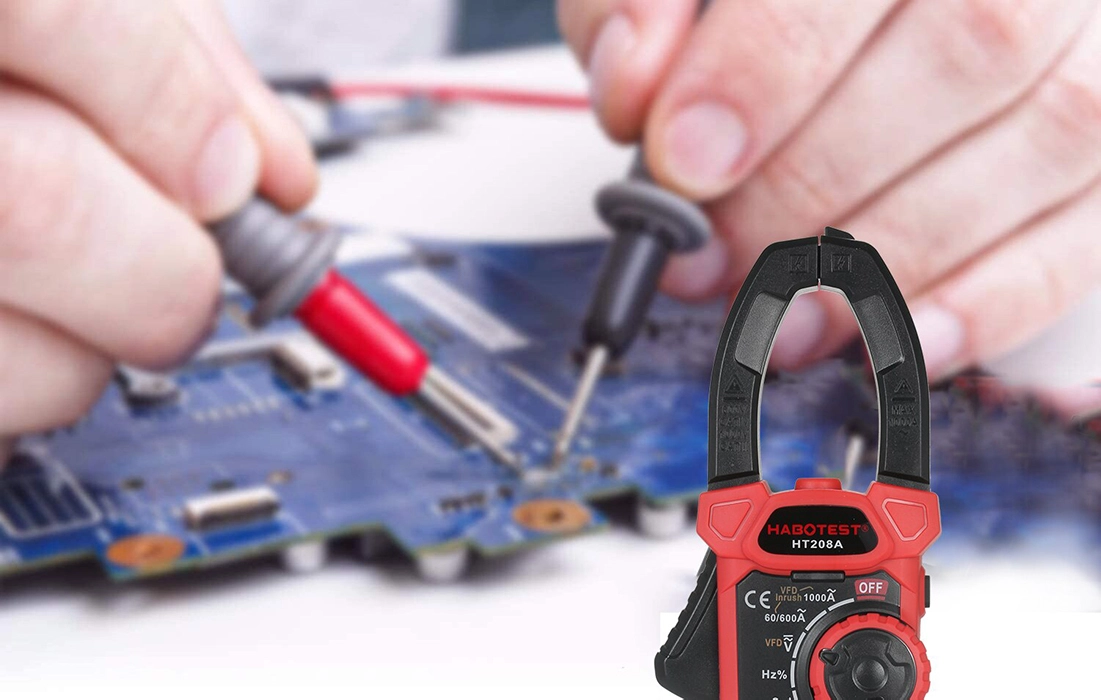

HT208D is a practical device with which you can check the value of various parameters, for example, AC and DC voltage and current, resistance, temperature, starting current and many others. The product provides precise measurement, the results of which are then displayed on the LCD screen. HT208D also has a flashlight that allows comfortable work in dark rooms.
All-in-one

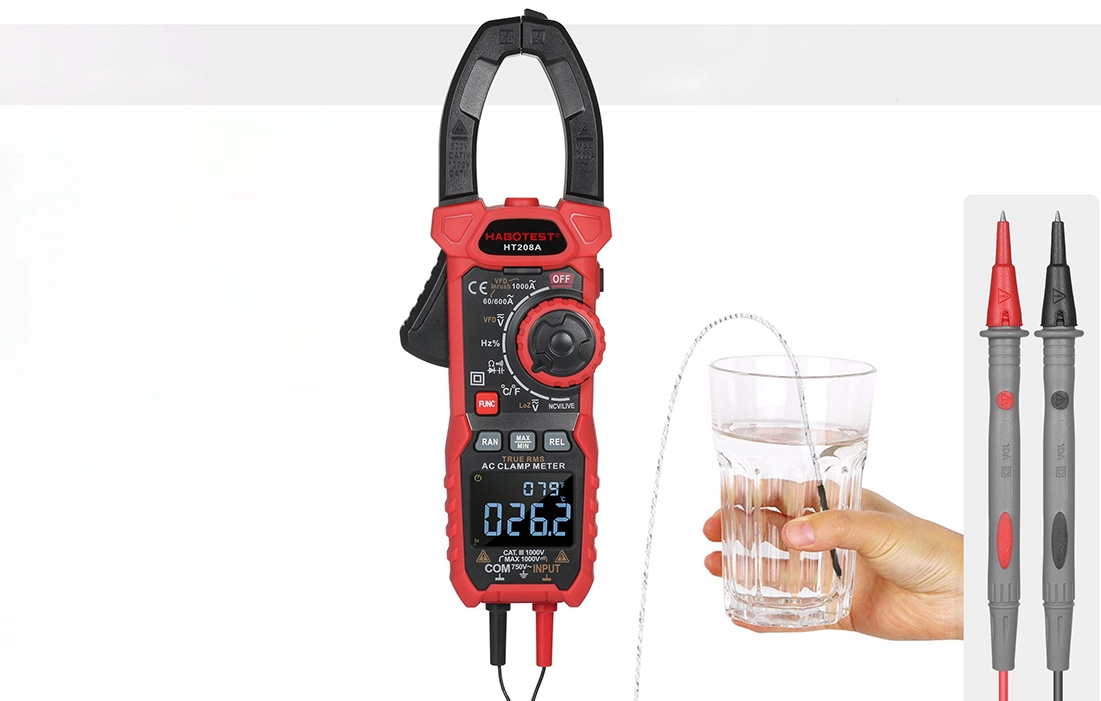

You can use the digital clamp meter in many situations. With it, you can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. You can also check continuity and true RMS value.
Safe use

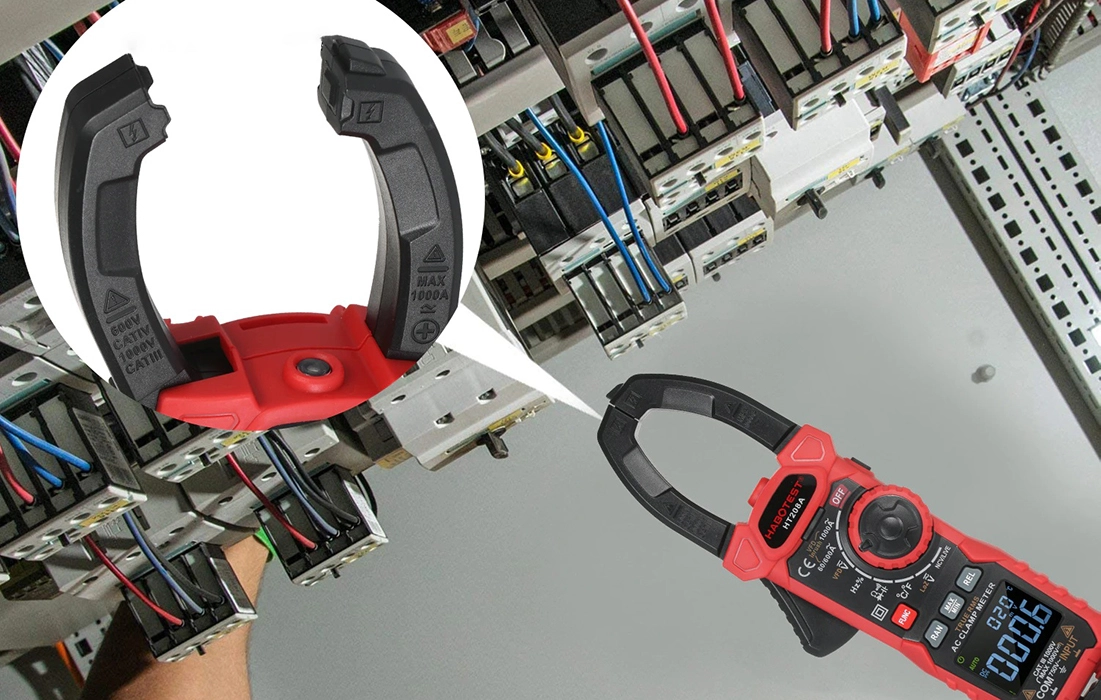

The device has been designed so that its use is completely safe. You can, for example, detect voltage without contact thanks to NCV sensors. The jaws of the meter, thanks to the maximum width of 40 mm, allow you to conveniently measure without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.
Additional features
When receiving an electromagnetic signal, the NCV sensor will give an audible alarm, and if the voltage or current is high, the color of the LCD screen will turn orange. What's more, the device will automatically turn off to save energy if no action is taken for 15 minutes.
Specification
Function | HT208A | HT208D |
DC voltage | 6V/60V/600V/1000V ±(1%+3) | 6V/60V/600V/1000V ±(1%+3) |
---|---|---|
AC voltage | 6V/60V/600V/750V ±(1.2%+3) | 6V/60V/600V/750V ±(1.2%+3) |
DC current | n/a | 60A/600A/1000A ±(2.5%+5) |
AC current | 60A/600A/1000A ±(3.0%+5) | 60A/600A/1000A ±(3.0%+5) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1.0%+3) |
Capacity | 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3), 100mF ±(5.0%+5) | 10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3), 100mF ±(5.0%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) |
Fill factor | 1%~99% ±(1.0%+2) | 1%~99% ±(1.0%+2) |
Temperature | -40°C~1000°C ±(1.0%+3) | -40°C~1000°C ±(1.0%+3) |
Number of counts | 6000 | 6000 |
Selection of ranges (automatic/manual) | Yes | Yes |
Continuity testing | Yes, sound and light alarm | Yes, sound and light alarm |
Diode testing | Yes | Yes |
Data storage | Yes | Yes |
NCV | Yes, sound and light alarm | Yes, sound and light alarm |
Backlight | Yes | Yes |
Flashlight | Yes | Yes |
Low indicator battery level | Yes | Yes |
Automatic shutdown | Yes | Yes |
True RMS value | Yes | Yes |
LPF | NO | Yes |
MAX/MIN | Yes | Yes |
V-LoZ | NO | Yes |
Power | 2x AA battery (included) | 2x AA battery (included) |
Libra | Approx. 380g | Approx. 380g |
Dimensions | 240 x 85 x 40mm | 240 x 85 x 40mm |
Jaw width | 44mm | 44mm |
Security | EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V | EN61010-1, -2-030 EN61010-2-033, EN61326-1 CAT III 1000V, CATIV 600V |
