BT2.0 connectors (10 pcs) BetaFPV

BT2.0 connectors (10 pcs) BetaFPV

Characteristics

• The BT2.0 connector effectively reduced the internal resistance of the connector by upgrading the crimp pins to the banana connector and increasing the cross-sectional area of ​​the banana connector.
• With these connectors, it can support 9A continuous and 15A pulsed current, while the PH2.0 connector supports 4.5A continuous current.
• By solving the problem of voltage drop, the 300mAh 1S BT2.0 lipo discharge becomes more efficient. Pilots can enjoy longer flight times without the disruption of the low voltage warning.
• Compared to PH2.0 crimp pins, the BT2.0 connector is more durable and can dissipate more current with the same efficiency and provides much more power. You can get 2 minutes of full throttle flight on Meteor65 if you use our BT2.0 300mah 1S battery.

Specification

• Size: Male Connector - 6.0*4.2*10.5mm / Female Connector - 6.0*4.2*8.3mm
• Weight: Male connector – 0.34 gram/ pc. / Female connector – 0.24 gram/ pc.
• Note: The molded terminal housing identifies positive and negative poles and must be welded according to instructions.

BT2.0 connector

The BT2.0 connector, designed exclusively by BETAFPV, broke the bottleneck of the PH2.0 connector. The BT2.0 connector effectively reduces the internal resistance of the connector, allowing it to carry more current, which means it supports 9A continuous current (15A burst mode), providing more power and longer flight time on 1S brushless drones, while the PH2 .0 only supports 4.5A. Enjoy longer flight times without disturbing the low voltage warning by solving the problem of voltage drops.

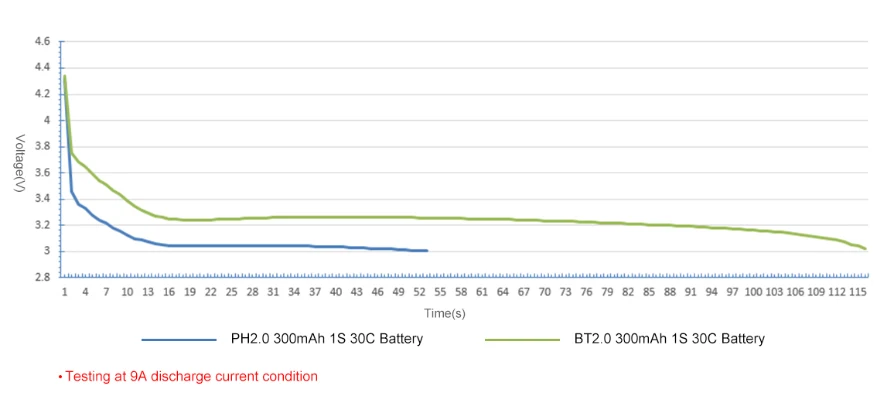

Below is a comparison chart of the BT2.0 connector and the PH2.0 connector (solid pin version) on the BETAFPV 1S 300mAh battery. In this test, the discharge current is 9A. It was seen to have double the time (about 2 minutes) with the BT2.0 connector.
