Docking station DJI Dock 2
8 568,00 €

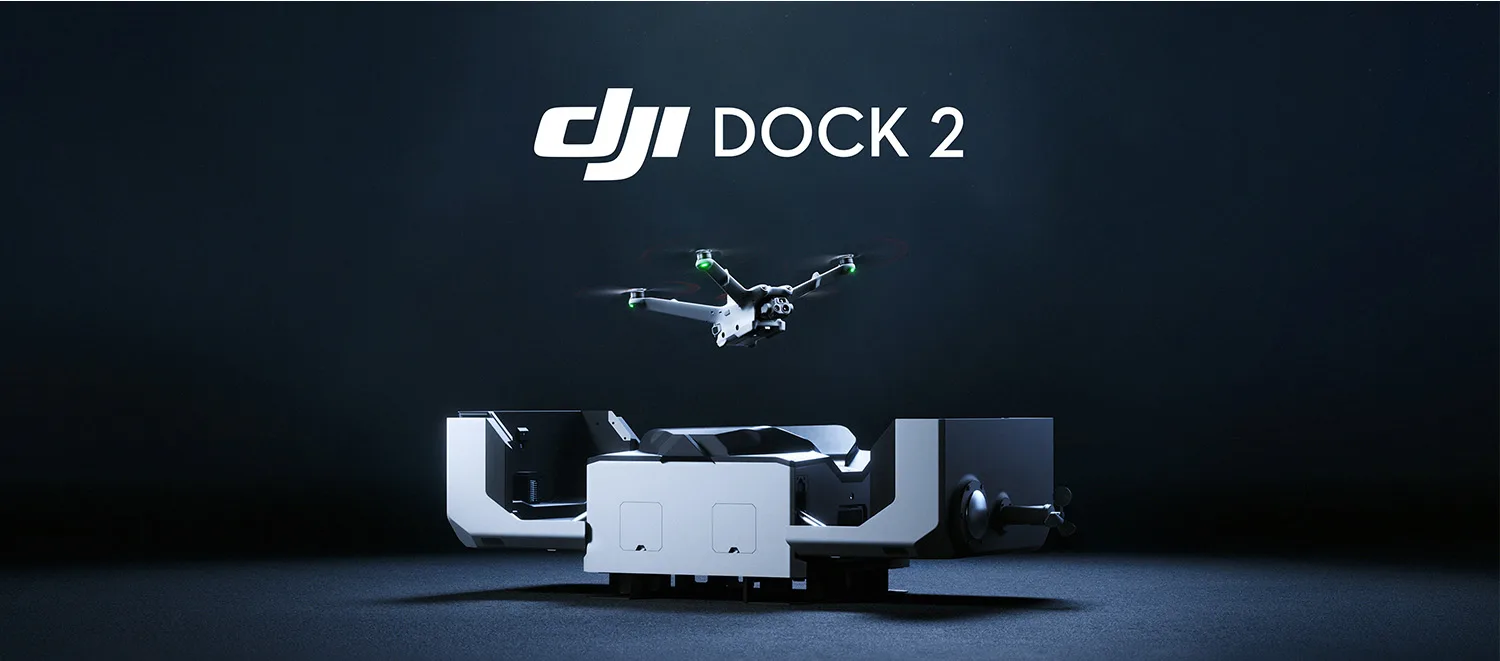

Revolutionize flight operations with DJI Dock 2
DJI Dock 2 is an enhanced version of the compact and powerful platform for automated drone missions Matrice 3D i Matrice 3TD.

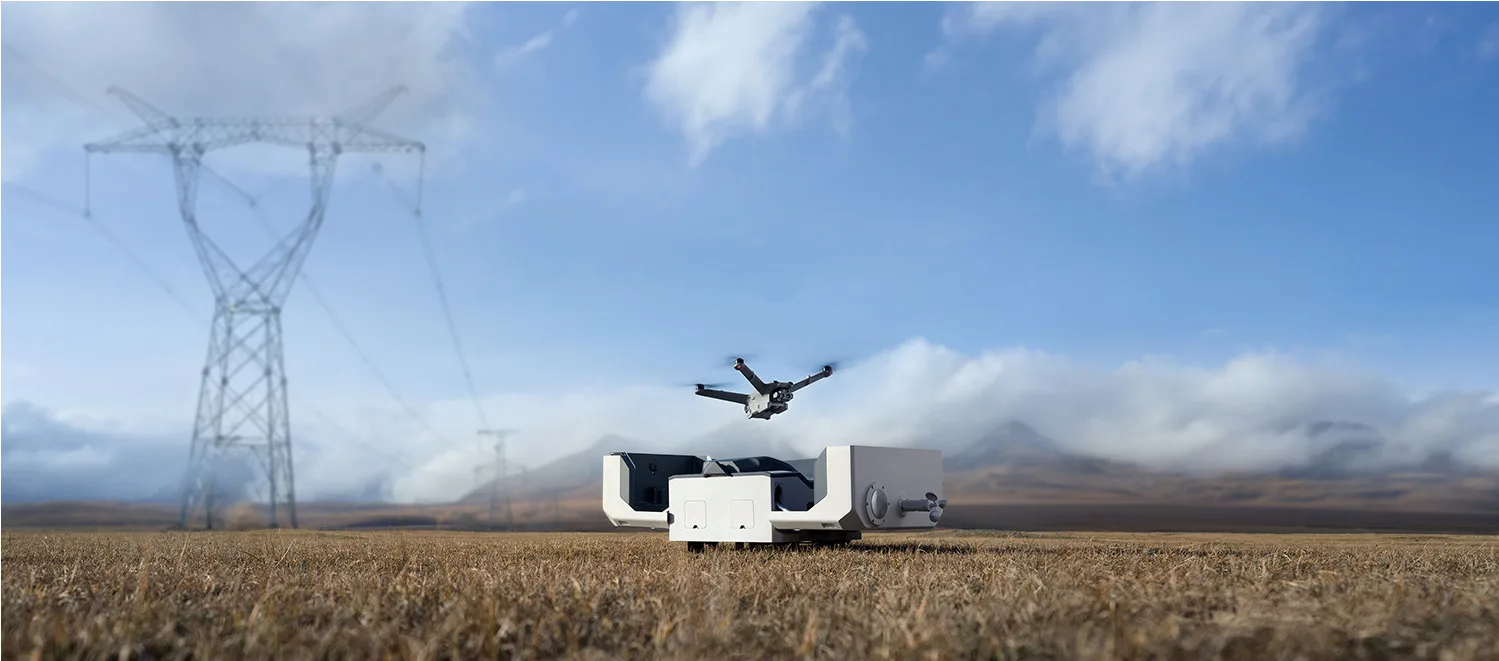

Enhanced mobility and ease of installation

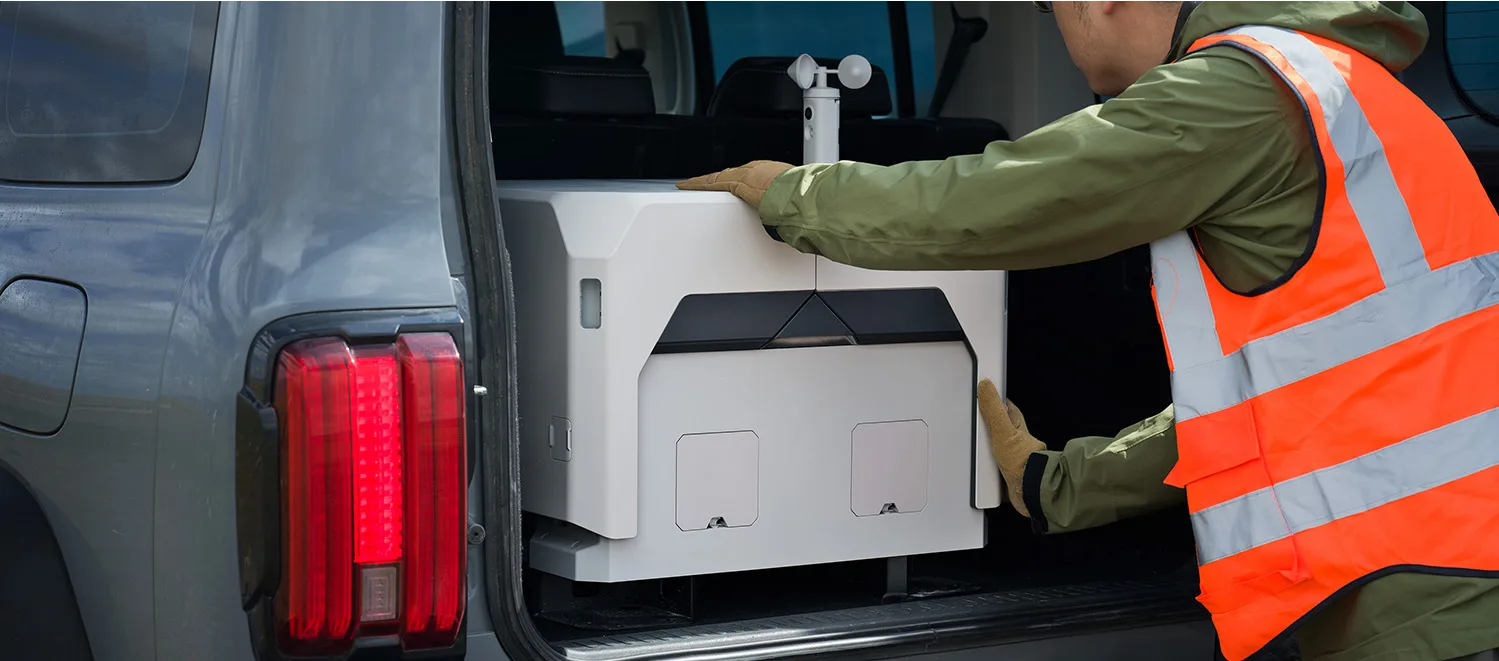

Ultralight design: 75% less volume and 68% less weight, making it easily transportable by just two people and quickly assembled.
Rapid terrain analysis: Intelligent vision sensors instantly assess the environment and identify the optimal place to deploy, reducing setup time from 5 hours to only 12 minutes!
Smart security - monitoring system

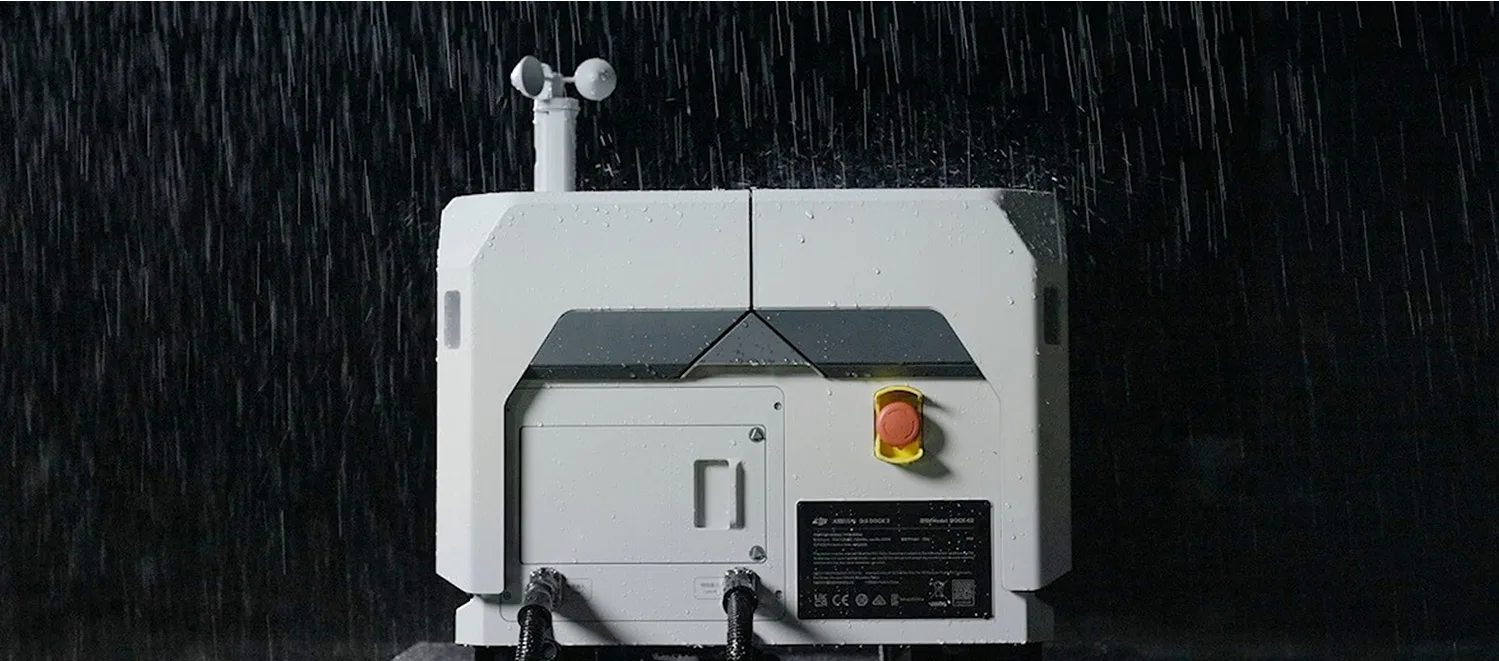

Safe and efficient operation: Degree of protection IP55 provides dust and water resistance, and the built-in environmental monitoring system ensures safe flight in all conditions.
DJI Dock 2 is equipped with an advanced weather monitoring system to ensure the safety and efficiency of aviation missions. The system integrates a number of sensors, including:
- Rain sensor - detects rainfall in real time, allowing the mission to be suspended to protect the drone from damage,
- Anemometer - measurements of wind speed and direction help assess flight safety and prevent dangerous situations,
- Thermometer - monitors the ambient temperature, making sure the operating conditions are within the acceptable range for the drone.
The combined sensor data is analyzed live and, if necessary, the system sends alerts to the operator. In addition, DJI Dock 2 integrates with weather forecasts online, which allows for preemptive mission planning and prevents damage to the drone.
Stable landing: A new generation of image recognition technology and an improved landing pad ensure precise and safe drone landing.

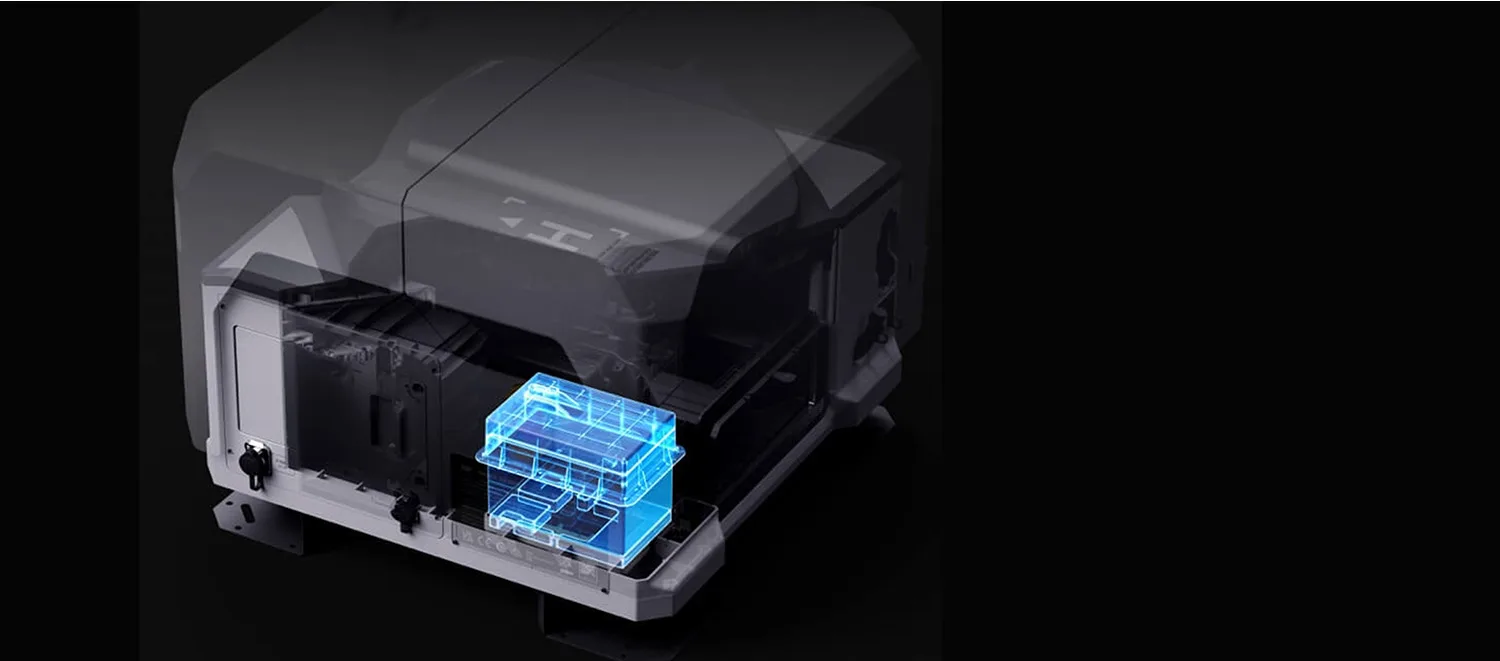

Reliability - built-in rechargeable battery
Long working time: Built-in emergency battery provides 5 hours of operation in case of power failure.
Low maintenance frequency: Durable design requires inspection only once every 6 months.

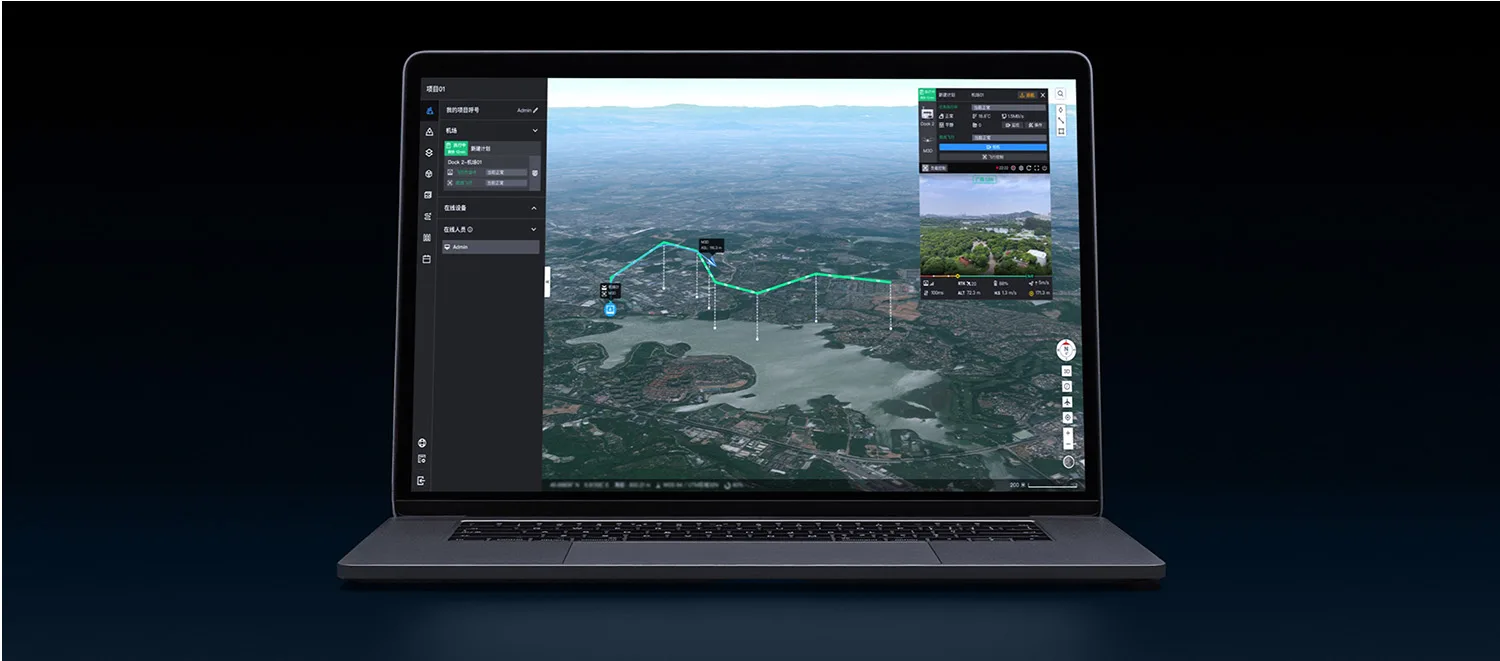

Intelligent cloud functions
Full control and automation: Manage missions, monitor drone status and receive real-time notifications from an intuitive cloud platform.
Excellent quality and performance: Automate repetitive tasks and gain higher precision and efficiency in operations.
Kit contents DJI Dock 2:
1x DJI Dock 2
1x Anemometer
4x Anchor
1x Ethernet cable connector
1x Power cable connector
1x Screwdriver
Note! This offer is for the dock itself DJI Dock 2. Purchase Matrice 3D and Matrice 3TD drone separately or as a kit.
| DOCKING STATION - GENERAL INFORMATION | |
|---|---|
| Total weight | 34 kg (without the drone) Actual product weight may vary due to differences in materials and external factors. |
| Dimensions | Open dock lid: 1228×583×412 mm (L.×width.×wys.) Dock lid closed: 570×583×465 mm (L.×width.×wys.) The above data does not include the height of the wind speed meter (145 mm ), but does include the height of the mounting base brackets (55 mm). |
| Input voltage | 100-240 V (AC), 50/60 Hz |
| Input power | Max 1000 W |
| Operating temperature | -25° to 45° C (-13° to 113° F) When the ambient temperature is below -20° C (-4° F), the docking station is on standby and the drone cannot perform flight tasks. |
| Degree of protection | IP55 |
| Maximum number of drones | 1 |
| Maximum permissible wind speed on landing | 8 m/s |
| Maximum operating height | 4000 m |
| RTK base station frequency | Simultaneous reception: GPS: L1 C/A, L2 BeiDou2: B1l, B2l, B3l BeiDou3: B1l, B3l GLONASS: L1, L2 Galileo: E1, E5B |
| RTK base station positioning accuracy | Horizontal: 1 cm + 1 ppm (RMS) Vertical: 2 cm + 1 ppm (RMS) |
| DOCKING STATION - CHARGING PERFORMANCE | |
| Output voltage | 28 V DC |
| Charging time | 32 minutes Data was measured while charging the drone (with power off) from 20% to 90% at 25°C (77°F). |
| DOCKING STATION - VIDEO TRANSMISSION | |
| Video transmission system | O3 Enterprise |
| Frequency of operation | 2.4000-2.4835 GHz 5.725-5.850 GHz |
| Transmitter power (EIRP) | 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC) |
| DOCKING STATION - COOLING SYSTEM | |
| Operating voltage | 28 V DC |
| Cooling system type | TEC air conditioning |
| DOCKING STATION - EMERGENCY BATTERY | |
| Battery capacity | 12 Ah |
| Output voltage | 12 V |
| Battery type | Lead-acid battery |
| Emergency battery operating time | > 5 hours Measurement with fully charged backup battery at 25° C (77° F). after a power outage, the dock does not support functions such as charging the drone, air conditioning, heating the dock lid and heating the wind speed indicator. Always check emergencies immediately. |
| DOCKING STATION - NETWORK ACCESS | |
| Ethernet access | Adaptive 10/100/1000Mbps Ethernet port |
| DOCKING STATION - SENSORS | |
| Wind speed sensor | Supported |
| Precipitation sensor | Supported |
| Ambient temperature sensor | Supported |
| Water immersion sensor | Supported |
| Cabin temperature sensor | Supported |
| Cabin humidity sensor | Supported |
| DOCKING STATION - SECURITY CAMERA (EXTERNAL) | |
| Resolution | 1920×1080 |
| Field of view (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DOCKING STATION - SECURITY CAMERA (INTERNAL) | |
| Resolution | 1920×1080 |
| Field of view (FOV) | 151° |
| Auxiliary light | Auxiliary white light |
| DOCKING STATION - LIGHTNING PROTECTION | |
| AC power port | 20 kA (rated value), meets the protection level requirements of EN 61643-11 type 2 and IEC 61643-1 class Ⅱ |
| Ethernet port | 10 kA (total), meets the protection level requirements of EN/IEC 61643-21 category C |
| DOCKING STATION - SUPPORTED SOFTWARE | |

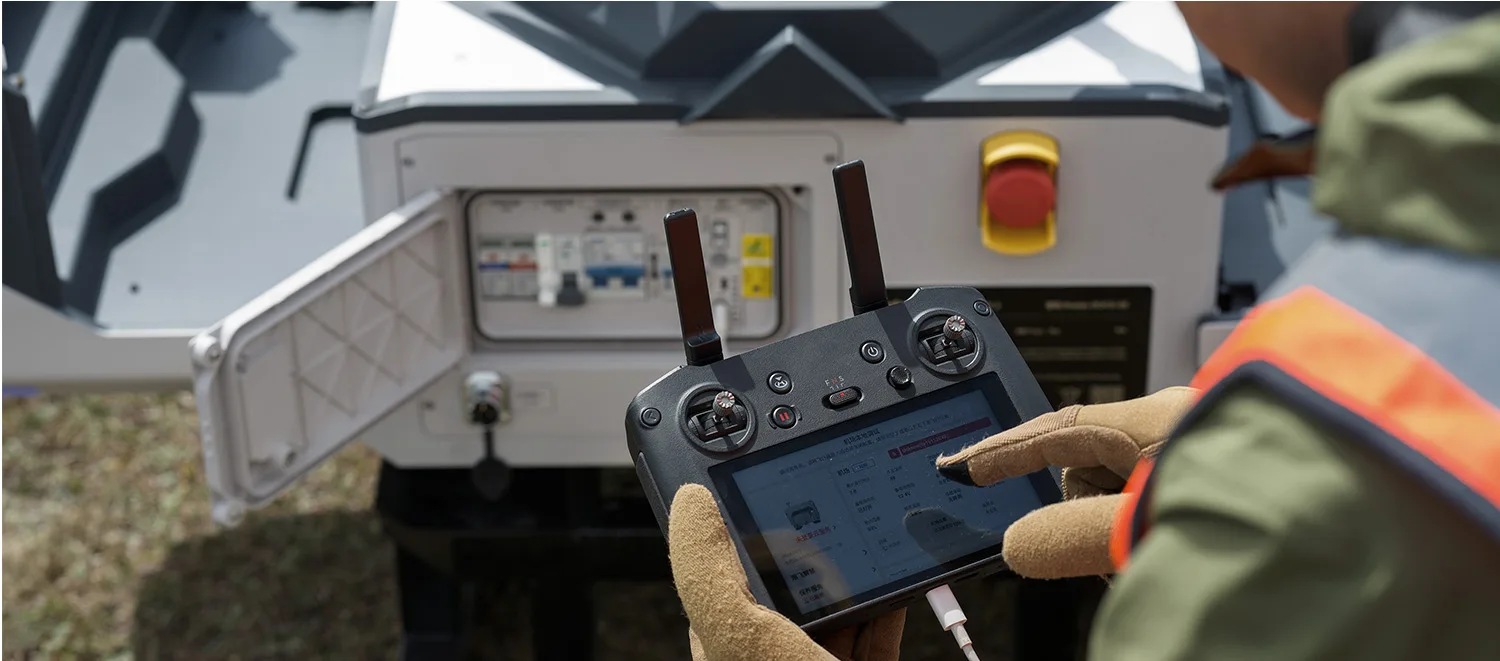

| Applications | DJI Remote Control 2 (connects to DJI Dock 2 via the DJI RC Pro Enterprise camera for installation and launch) |
| Cloud platform | DJI FlightHub 2 (supported by default) Third-party cloud platforms (access via DJI Cloud API) |
| DOCKING STATION - EXPANDABLE | |
| Open Minutes | Cloud API DJI |
| Edge Computing | Supports data communication with external switches |
Contact our specialists to learn more about DJI Dock 2, get a customized quote and revolutionize your flight operations
Specification Docking station DJI Dock 2
Brand
DJI
Symbol
CP.EN.00000510.01
Producer code
6941565974853
Warranty
24 months
