BetaFPV LAVA 1102 series 14000KV brushless motor - 44mm (1pc)

BetaFPV LAVA 1102 Series 14000KV Brushless Motor - 44mm (1pc)

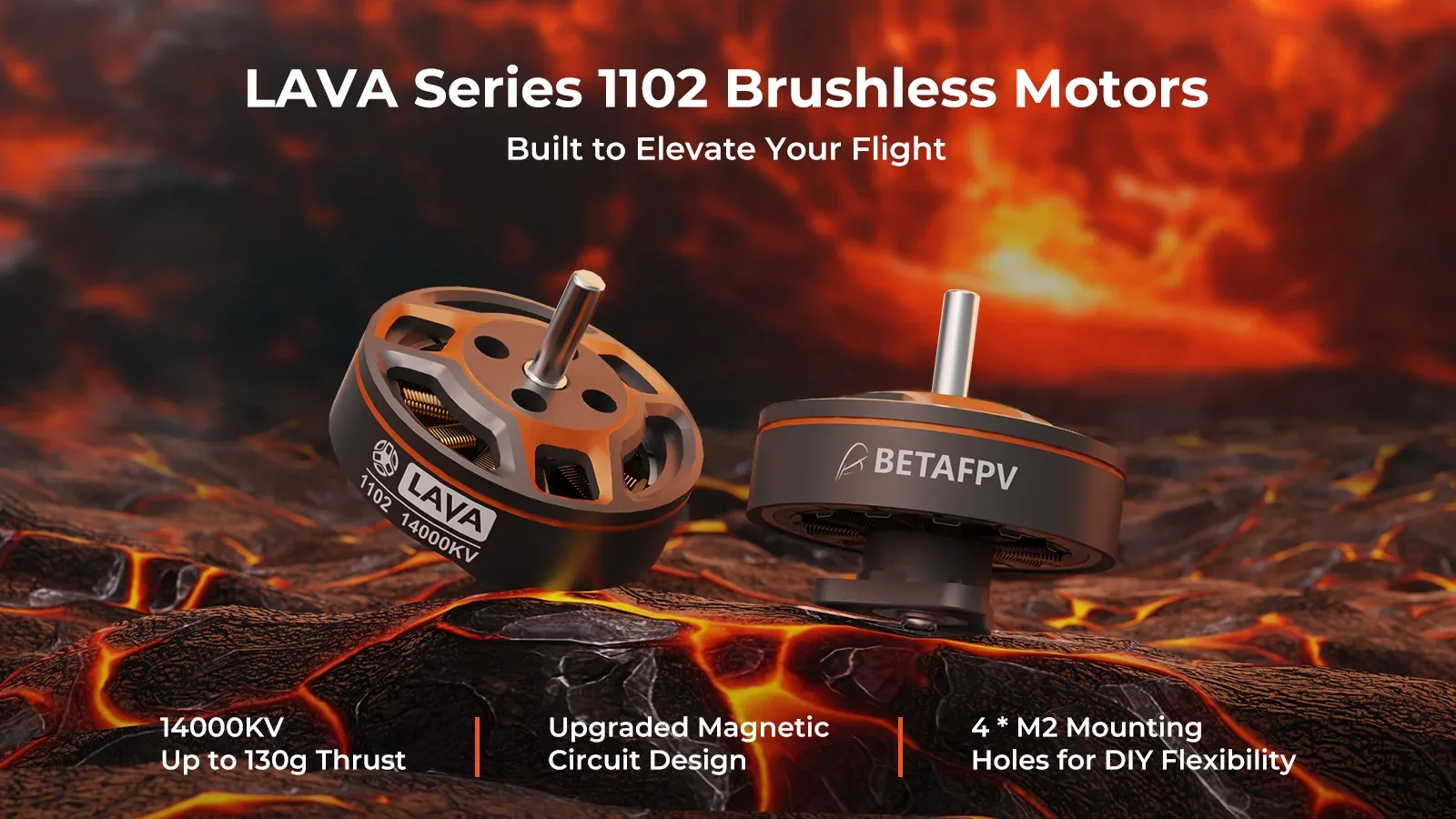

The LAVA 1102 Series brushless motor, designed for the Pavo Femto, achieves nearly 130g of maximum thrust thanks to its advanced wafer-shaped magnets, optimized magnetic circuit and improved coil fill ratio. Combined with a rotor shroud, the Pavo Femto achieves a thrust-to-weight ratio in excess of 6.75:1. Designed with versatility in mind, it features four M2 mounting holes for propellers, making it an ideal choice for a variety of DIY projects. The LAVA 1102 engine provides high power, performance and longer flight time for any pilot.

Key features

• Pre-engineered for Pavo Femto: 14,000KV motors combined with a rotor shroud allow the Pavo Femto to achieve an impressive 6.75:1 thrust-to-weight ratio.
• Exceptional Efficiency: Advanced wafer-shaped magnets and optimized coil design provide efficiency of over 1.5g/W with a maximum thrust of 130g.
• Lightweight design: Weighs only 3.4g/3.6g, which minimizes strain and improves maneuverability.
• Prepared for DIY projects: 4 M2 mounting holes allow you to mount a wide range of propellers and drone designs.

Specifications

• Model: LAVA 1102 Series brushless motor
• KV: 14000KV
• Maximum power: 84.1W
• Maximum current: 10,51A
• Voltage Rating: 2S
• Weight: 3.4 (±0.1)g (cable length 22mm), 3.6 (±0.1)g (cable length 44mm)
• Shaft diameter: ø1.5mm
• Shaft length: 5mm
• Wire thickness: 28AWG
• Cable length: 22mm/44mm
• Connector: JST1.25-3Pin
• Motor mounting holes: 3*M1.4 EQS ø6.6
• Propeller mounting holes: 4*M2 EQS ø5

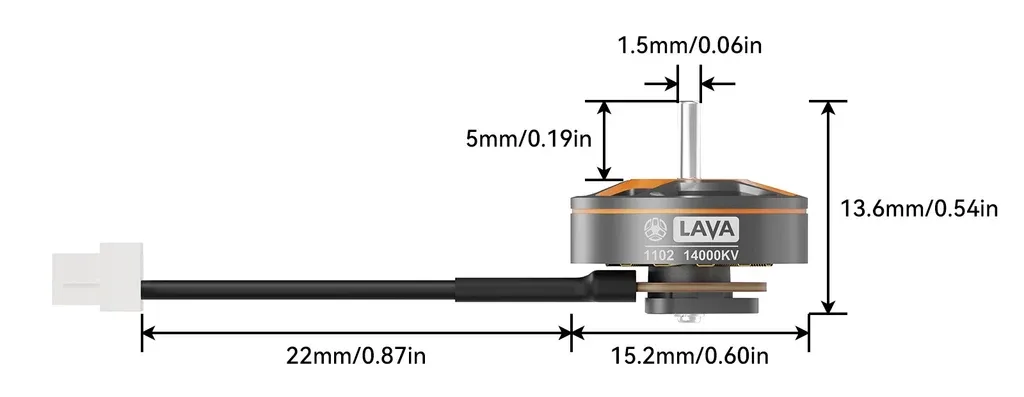

Diagram of LAVA Series 1102 motor (22mm):

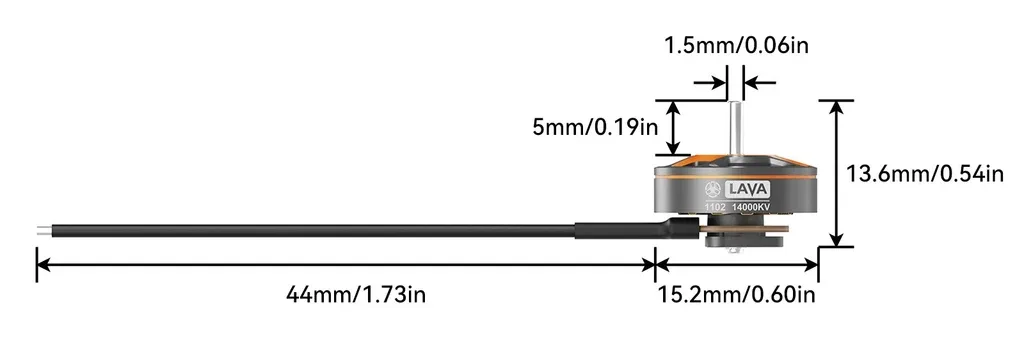

LAVA Series 1102 motor diagram (44mm):

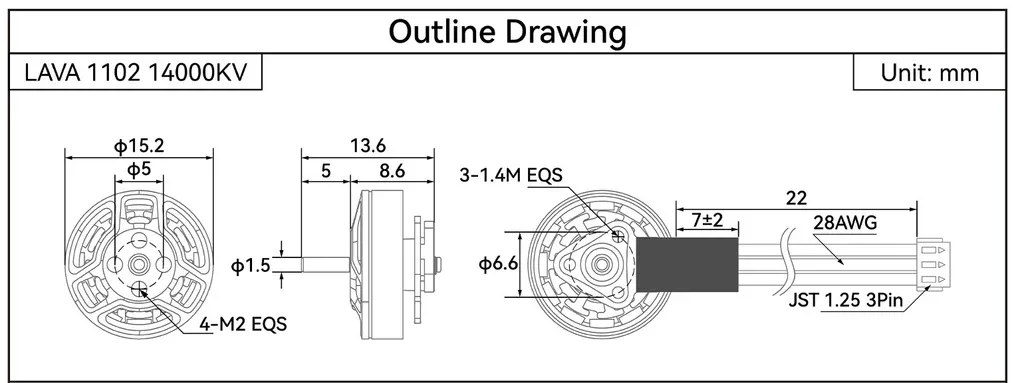

LAVA Series 1102 motor technical drawing:

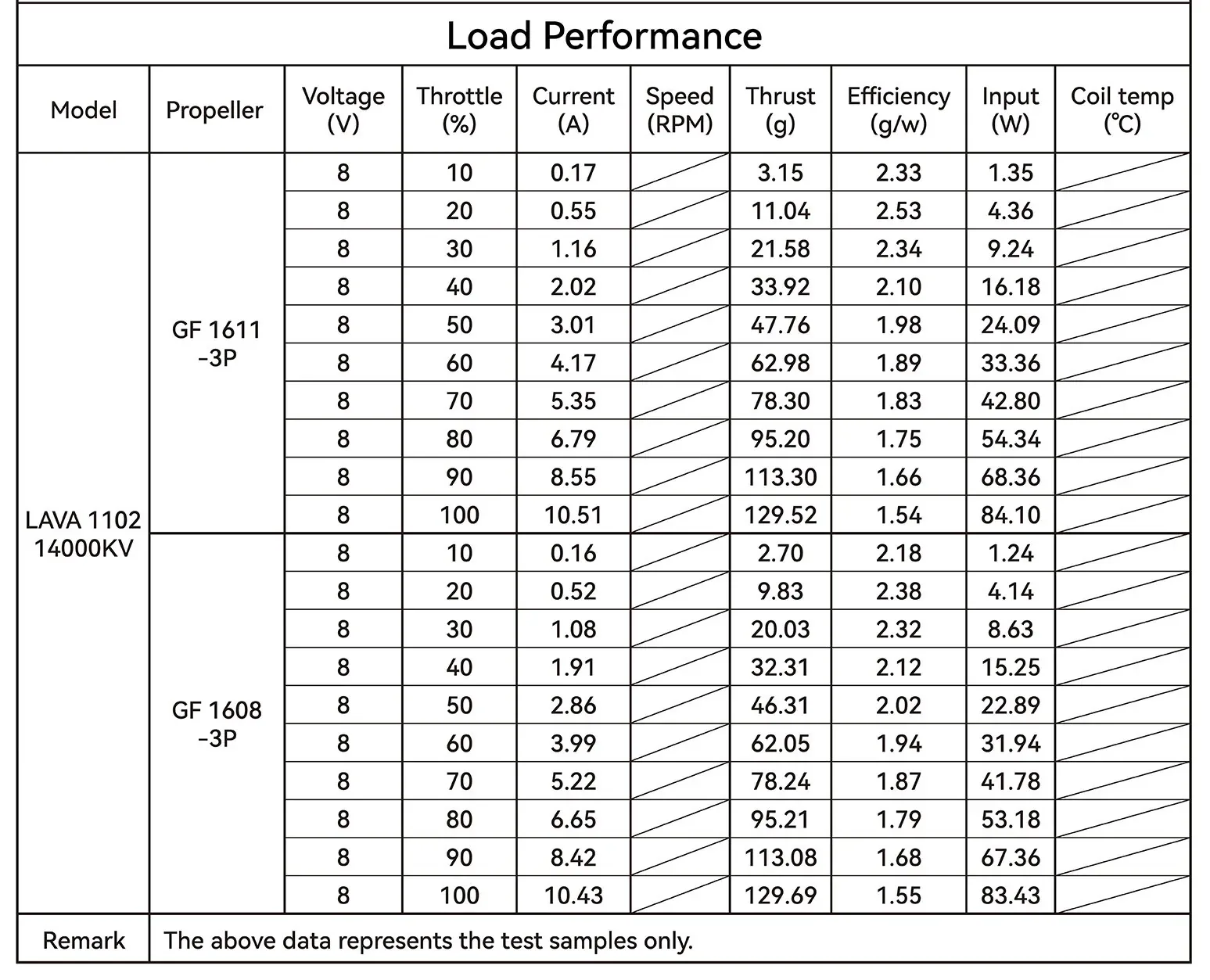

Maximum output

The LAVA Series 1102 brushless motor, a new addition to the LAVA Series, was designed specifically for the Pavo Femto. Thanks to its advanced wafer-shaped magnets, optimized magnetic circuit and improved coil fill ratio, it achieves about 2.1g/W efficiency during stable flight. Even at a maximum thrust of 130g, it maintains performance above 1.5g/W, providing exceptional power and longer flight time.

DIY Flexibility

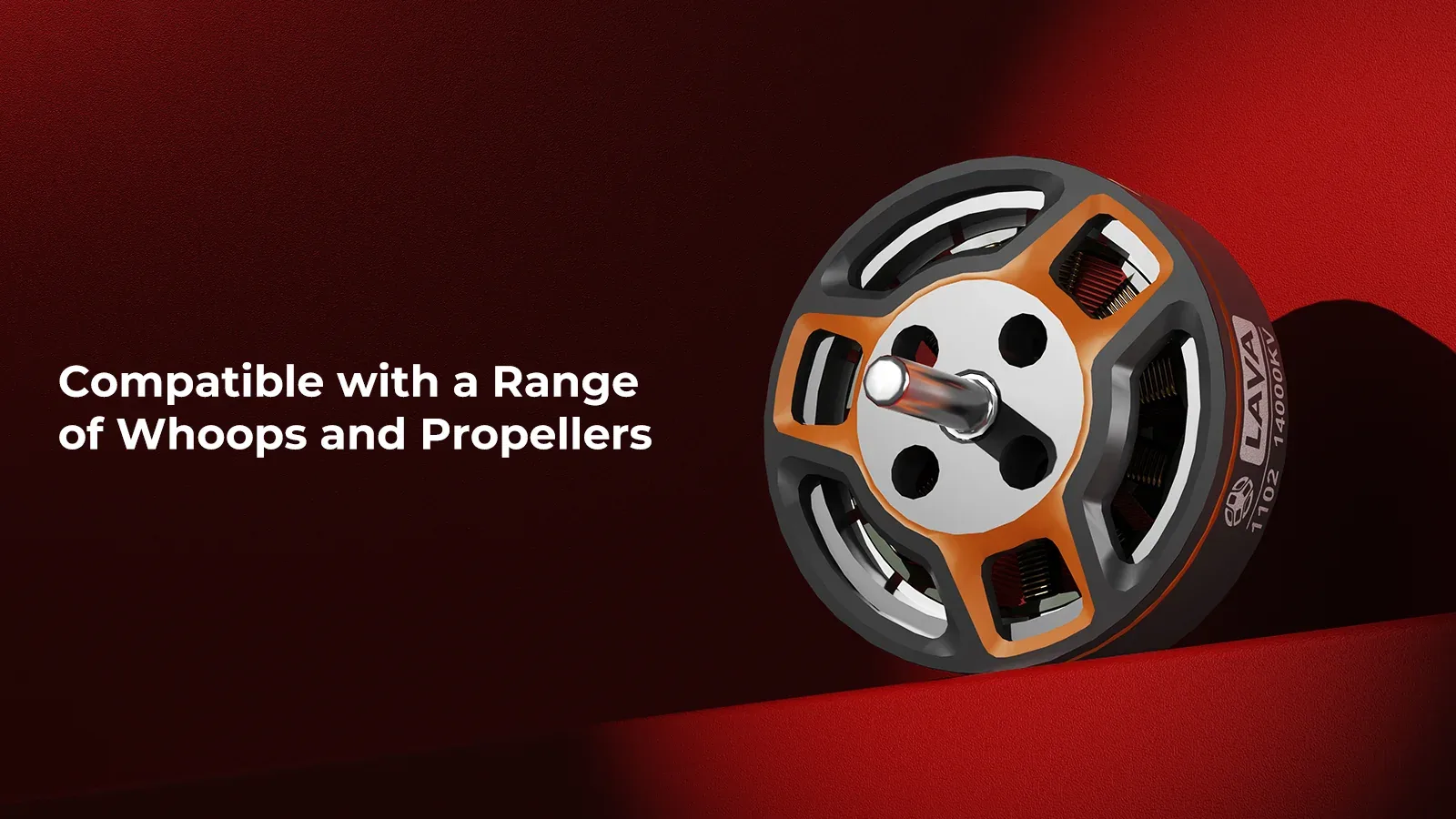

Equipped with four M2 mounting holes, the LAVA 1102 motor provides compatibility with a variety of propellers and rotor covers, offering a wide range of possibilities for pilots pursuing their own projects.

Recommended components

• Propellers: Gemfan 1611 3-blade (1.5mm shaft), Gemfan 1608 3-blade (1.5mm shaft)
• Quad: Pavo Femto Brushless Whoop Quadcopter
• Frame: Pavo Femto Brushless Whoop Frame
• FC: F4 2-3S 20A AIO FC
• Battery: LAVA 2S 450mAh / 550mAh

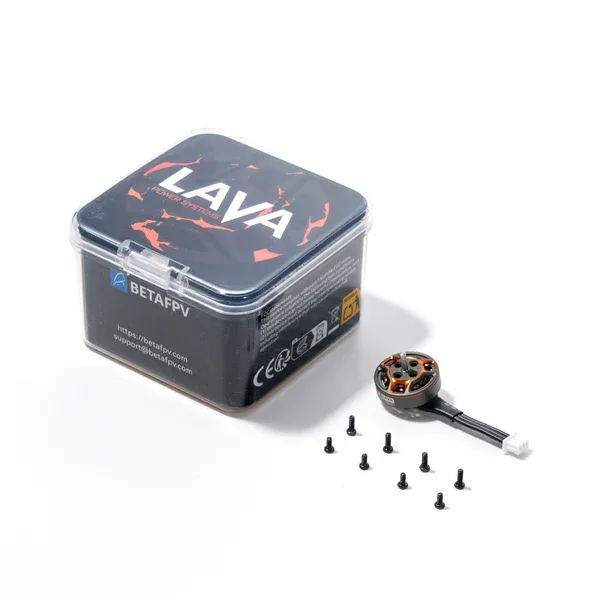

Kit contents

• 1 x LAVA 1102 Series brushless motor
• 4 x Screw M1.4 * 3 with Phillips flat head
• 4 x Screw M1.4 * 4 with Phillips flat head
