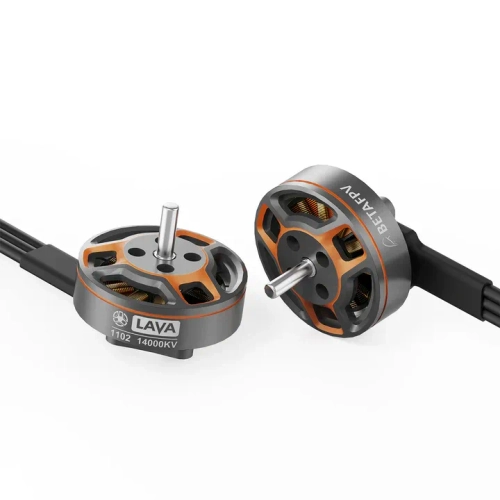

BetaFPV LAVA Series 1102 14000KV Brushless Motor - 22mm (1pc)

BetaFPV LAVA Series 1102 14000KV Brushless Motor - 22mm (1pc)

The LAVA Series 1102 Brushless Motor, designed for the Pavo Femto, delivers nearly 130g of maximum thrust thanks to its advanced plate-shaped magnets, optimized magnetic circuit, and improved coil fill ratio. When paired with the Pavo Femto rotor guard, it achieves a thrust-to-weight ratio exceeding 6.75:1. Designed for versatility, it features four M2 mounting holes for propeller attachment, making it the ideal choice for various DIY projects. The LAVA 1102 motor provides high power, efficiency, and extended flight time for every pilot.

Key Features

• Designed for Pavo Femto: 14000KV motors combined with the rotor guard allow the Pavo Femto to achieve an impressive thrust-to-weight ratio of 6.75:1.
• Exceptional Efficiency: Advanced plate-shaped magnets and optimized coil design deliver efficiency above 1.5g/W with a maximum thrust of 130g.
• Lightweight Design: Weighing only 3.4g/3.6g, it minimizes load and enhances maneuverability.
• DIY Ready: 4 M2 mounting holes enable the installation of a wide range of propellers and drone designs.

Specifications

• Model: LAVA Series 1102 Brushless Motor
• KV: 14000KV
• Maximum Power: 84.1W
• Maximum Current: 10.51A
• Rated Voltage: 2S
• Weight: 3.4 (±0.1)g (wire length 22mm), 3.6 (±0.1)g (wire length 44mm)
• Shaft Diameter: ø1.5mm
• Shaft Length: 5mm
• Wire Gauge: 28AWG
• Wire Length: 22mm/44mm
• Connector: JST1.25-3Pin
• Motor Mounting Holes: 3*M1.4 EQS ø6.6
• Propeller Mounting Holes: 4*M2 EQS ø5

LAVA Series 1102 Motor Diagram (22mm):

LAVA Series 1102 Motor Diagram (44mm):

Technical Drawing of LAVA Series 1102 Motor:

Maximum Efficiency

The LAVA Series 1102 Brushless Motor, a new addition to the LAVA series, is specifically designed for the Pavo Femto. With advanced plate-shaped magnets, optimized magnetic circuit, and improved coil fill ratio, it achieves about 2.1g/W efficiency during stable flights. Even at maximum thrust of 130g, it maintains efficiency above 1.5g/W, providing exceptional power and longer flight times.

DIY Flexibility

Equipped with four M2 mounting holes, the LAVA 1102 motor offers compatibility with various propellers and rotor guards, providing wide possibilities for pilots pursuing their own projects.

Recommended Components

• Propellers: Gemfan 1611 3-blade (1.5mm shaft), Gemfan 1608 3-blade (1.5mm shaft)
• Quad: Pavo Femto Brushless Whoop Quadcopter
• Frame: Pavo Femto Brushless Whoop Frame
• FC: F4 2-3S 20A AIO FC
• Battery: LAVA 2S 450mAh / 550mAh

Package Contents

• 1 x LAVA Series 1102 Brushless Motor
• 4 x Phillips Flat Head Screw M1.4 * 3
• 4 x Phillips Flat Head Screw M1.4 * 4
