SEQURE H743 V2 & E70 G2 30x30 Flight Controller Stack FC ICM42688P 70A (AM32)

SEQURE H743 V2 Flight Controller & E70 G2 30*30 Stack FC ICM42688P 70A (AM32)

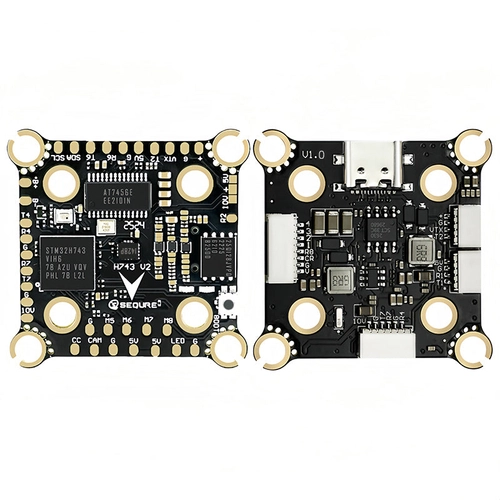

SEQURE H743 V2 FC

(1) Equipped with a high-performance STM32H743 processor, operating at up to 480 MHz, ensuring fast control response times.

(2) The ICM42688P gyroscope enables precise gesture detection and stable control, enhancing system reliability.

(3) SEQURE H743 features a built-in barometer, OSD, and a large 16 MB black box for effective flight data recording.

(4) Reserved 6 UARTs to meet the needs of most devices.

(5) Capable of controlling up to 8 motors, easily forming an X8 configuration.

(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V power, allowing direct connection to DJI O3 and analog VTX.

(7) Supports a wide input voltage range of 4-8S Lipo, with 20 mm and 30.5 mm mounting holes. Mini design suitable for various frame types, such as racing, aerial photography, freestyle, etc.

E70 G2 4IN1 ESC

(1) High-performance STM32G071 processor, supporting BLHeli_32 | AM32 software, wide input voltage range of 2-8S, continuous current of 70A, peak current up to 150A.

(2) Built-in ammeter supporting telemetry data return, updating motor speed, temperature, current, and other data in real-time.

(3) High-quality high-current MOSFETs, ultra-efficient conversion, reducing losses and extending flight time.

(4) High copper thickness in multi-layer PCB design enhances overload handling capability, efficient heat dissipation, and load resistance.

(5) Precise control of switching interval time, accelerating ESC response, smooth control, and delicate feel.

(6) PWM frequency supports a range from 16KHz to 128KHz, and excellent circuit design eliminates the step discrepancy issue.

(7) Innovative design, oblique soldering surface, more aesthetic and secure motor wiring layout, reducing soldering difficulty.

(8) 30.5*30.5 mm mounting hole design, compact structure, suitable for various frame types, easy to install.

Product Specifications:

Package Includes:

• SEQURE H743 V2 FC x 1
• E70 G2 4IN1 ESC×1
• 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
• 30AWG 100mm Single-head SH1.0-4P Flat Cable x 2
• 60mm Length 12095 5V Buzzer x 1
• M3*8mm Silicone Shock-absorbing Washer(Black) x 10
• 12AWG 100mm Power Cable (black/red)×2
• XT60H-M Black Male Connector×1
• 35V 680UF Solid Capacitor×1
• M3*25mm Screw×4
• M3 Sleeve Nut×4

Overall Dimensions:
