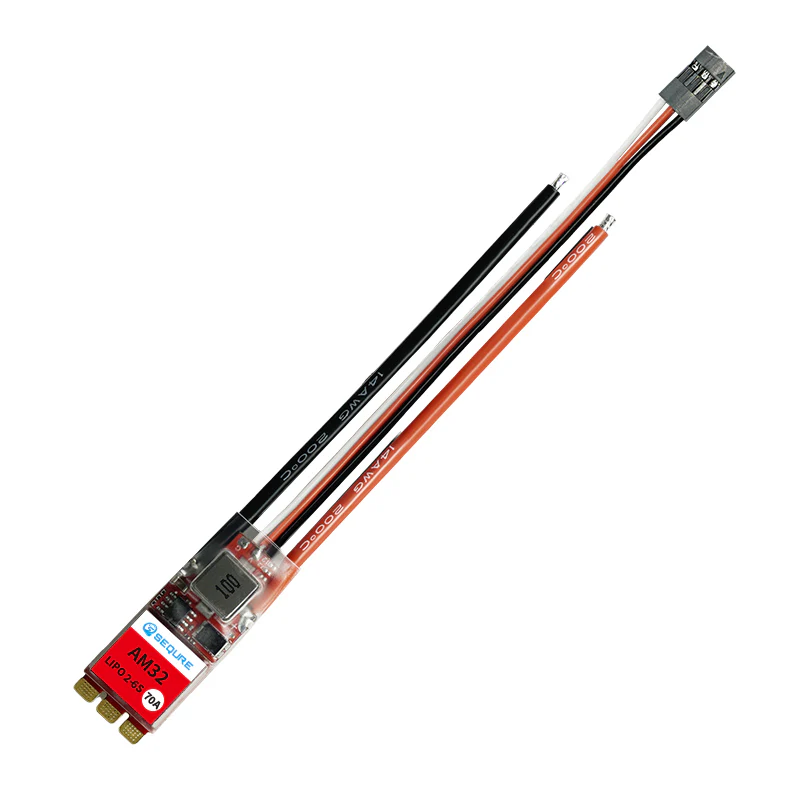

Brushless ESC 2-6S Lipo Powered 70A SEQURE SQESC 2670 (AM32) + BEC

Brushless ESC 2-6S Powered by Lipo 70A SEQURE SQESC 2670 (AM32) + BEC

(1) Utilizes a high-performance 32-bit STM32G071 processor with an operating frequency of up to 64 MHz and maximum support for motor PWM frequency of 128 kHz.
(2) The PCB uses an 8-layer 3OZ gold-plating process, high-performance MOSFET transistors combined with a metal heatsink, which effectively dissipates heat under high current loads, enabling stable and continuous operation.
(3) Supports multiple movement modes such as single-direction, bidirectional, and brake motors.
(4) Offers various protections including low voltage protection, thermal protection, rotor lock protection, and current protection.
(5) Automatically detects throttle signal upon power-up, supports all Dshot signals, as well as signal protocols like PWM, Oneshot, and Multishot.
(6) BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly power external devices such as receivers and servos, making the ESC application more versatile and flexible.
(7) Visual parameter adjustment tool supports settings like motor timing, throttle calibration, current detection, motor rotation direction, telemetry signals, and other settings.
(8) RGB LED color settings allow for customization of multiple LED colors.
(9) Widely used in FPV racing drones, multi-rotor drones, single-axis aircraft, model ships, climbing vehicles, model cars, and other scenarios.

Product Specifications

Overall Dimensions

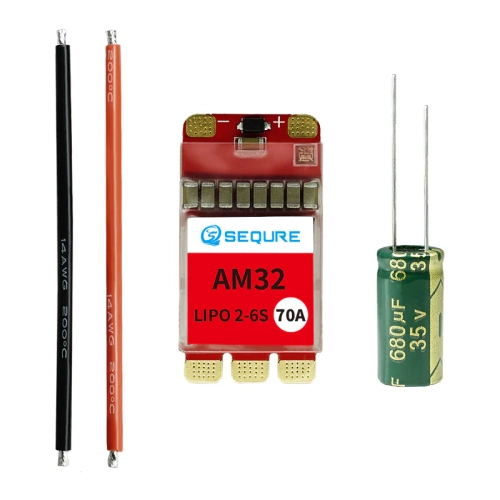

Package Contents
