Brushless ESC 2-6S Lipo Powered 70A SEQURE SQESC 2670 (AM32)

Brushless ESC 2-6S Powered by Lipo 70A SEQURE SQESC 2670 (AM32)

(1) Utilizes a high-performance 32-bit STM32G071 processor with an operating frequency of up to 64 MHz and maximum support for motor PWM frequency of 128 kHz.
(2) The PCB features an 8-layer 3OZ gold-plating process, high-efficiency MOSFET transistors combined with a metal heat sink for effective heat dissipation under high current load, allowing stable and continuous operation.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and brake motors.
(4) Offers various protections including low voltage protection, temperature protection, rotor lock protection, and current protection.
(5) Automatically detects the throttle signal upon power-up, supports all Dshot signals, and protocols like PWM, Oneshot, and Multishot.
(6) The BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly power external devices such as receivers and servos, making the ESC application more versatile and flexible.
(7) The visual parameter adjustment tool supports settings like motor timing, throttle calibration, current detection, motor rotation direction, telemetry signals, and other settings.
(8) RGB LED color settings allow for customization of multiple LED colors.
(9) Widely used in FPV racing drones, multi-axial drones, single-axis aircraft, ship models, climbing vehicles, car models, and other scenarios.

Product Specifications

Overall Dimensions

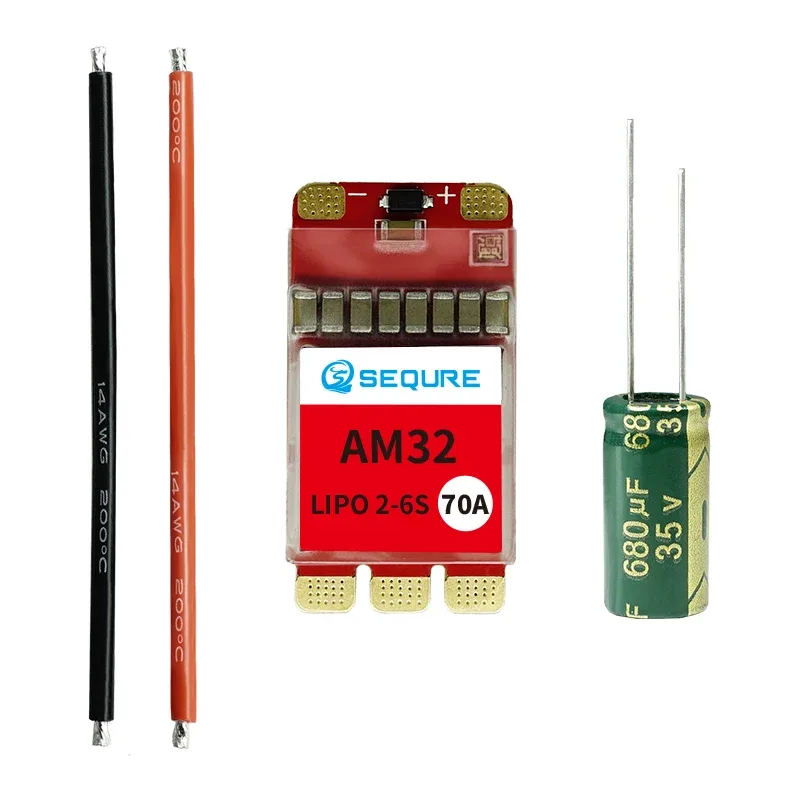

Package Contents
