Brushless Electric Speed Controller 2-8S SEQURE SQESC 28120 (AM32) + 4A BEC

Brushless Electric Speed Controller 2-8S Power Supply SEQURE SQESC 28120 (AM32) + BEC 4A

(1) Utilizes a high-performance 32-bit STM32G071 processor with an operating frequency up to 64 MHz, supporting a maximum motor PWM frequency of 128 kHz.
(2) Equipped with high-efficiency MOSFET transistors and a CNC metal heatsink, ensuring effective heat dissipation under high current load for stable and continuous operation.
(3) Supports various motion modes such as unidirectional, bidirectional, and brake motors.
(4) Offers multiple protections including low voltage protection, thermal protection, rotor lock protection, and current protection.
(5) Automatically detects throttle signal upon power-up, supporting all Dshot signals as well as signal protocols like PWM, Oneshot, and Multishot.
(6) Visual programming parameter adjustment tool supports settings such as motor timing, throttle calibration, current detection, motor rotation direction, telemetry signals, and more.
(7) Built-in RGB LED color settings allow customization of multiple LED colors.
(8) BEC 4A supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, while BEC 10A supports adjustable outputs of 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, and 12V/10A, enabling direct power supply to external devices such as receivers and servos, making ESC applications more versatile and flexible.
(9) Widely used in aircraft models, agricultural protection machines, multirotor drones, RC ship models, and RC cars.

Product Specifications

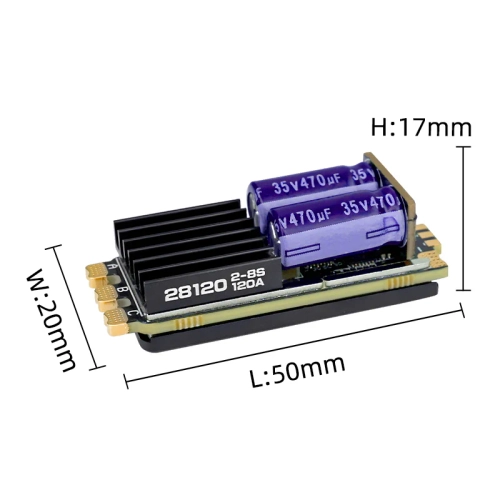

General Dimensions

Set Includes:

• SQESC 28120 Set ×1
