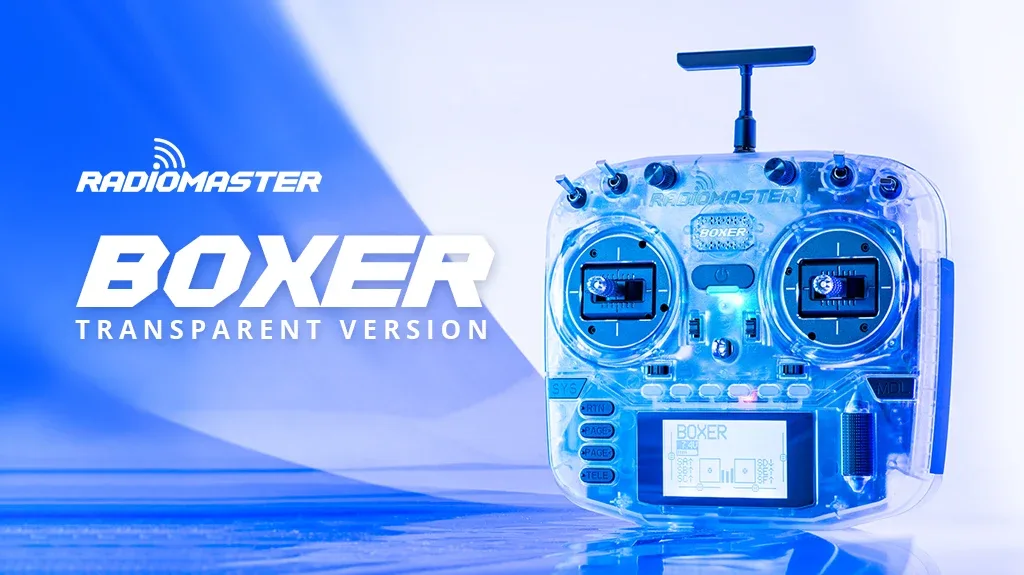

RadioMaster Boxer ExpressLRS Transparent Radio Controller

RadioMaster Boxer ExpressLRS Transparent equipment

Our popular Boxer radio is now available in a transparent version - an electrifying combination of style and performance that is sure to heat up the RC community! Unlock the perfect balance of elegant appearance and high durability, all in transparent, premium quality packaging. Prepare to be mesmerized by the included extra set of white LEDs so you can further customize the look of your radio! We've even included an extra neck strap to complete the set in style and comfort!

Characteristics

• The set includes a special radio in a transparent version with a white set of Gimbal LEDs and a RadioMaster neck strap
• You can personalize your personalized and unique radio at any time
• Available with a built-in ExpressLRS backpack
• Equipped with powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Pre-installed EdgeTX software
• Internal ELRS module supporting 1000 Hz refresh rate
• Support QC3.0 MAX 2.0A fast charging
• Compact design with excellent ergonomics
• New low profile SE latching switch and SF momentary switch
• Oversized battery compartment - room for a 2S 6200 mAh pack, operating up to 20 hours (batteries not included)
• Full-size V4.0 Hall-effect gimbals as standard, expandable to AG01 CNC Hall-effect gimbals
• Standard JR module compartment
• Built-in cooling fan for internal module (ELRS version)
• Standardized RadioMaster button layout
• Versatile 6-position switch to access airplane mode
• Adjustable and removable T-shaped antenna
• Industry-first fabric handle for improved portability
• Interchangeable, ergonomic handles
• Redesigned SD card slot with pre-loaded SD card included
• Power sockets for external modules in the battery cover
• A RadioMaster carrying case and gimbal cover are included as standard to keep your radio safe on the move

Technical data

• Article: Transparent version of the BOXER radio
• Size: 235*178*77mm
• Weight: 532.5 gram
• Frequency: 2.400 GHz-2.480 GHz
• Internal radio frequency: ELRS 2.4 GHz
• Supported protocols: depends on the module
• Cooling Fan: Built-in (ELRS version)
• Voltage range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF Module)
• Channels: Max. 16 channels (depending on receiver)
• Battery: 2-cell 7.4V lithium polymer / two 18650 3.7V lithium-ion cells (batteries not included)
• Display: 128*64 monochrome LCD display
• Gimbal: Precision 4.0 Hall gimbals as standard (AG01 optional)
• External module: compatible with JR / FrSKY / Crossfire
• Update method: USB/SD card and EdgeTX Companion PC software

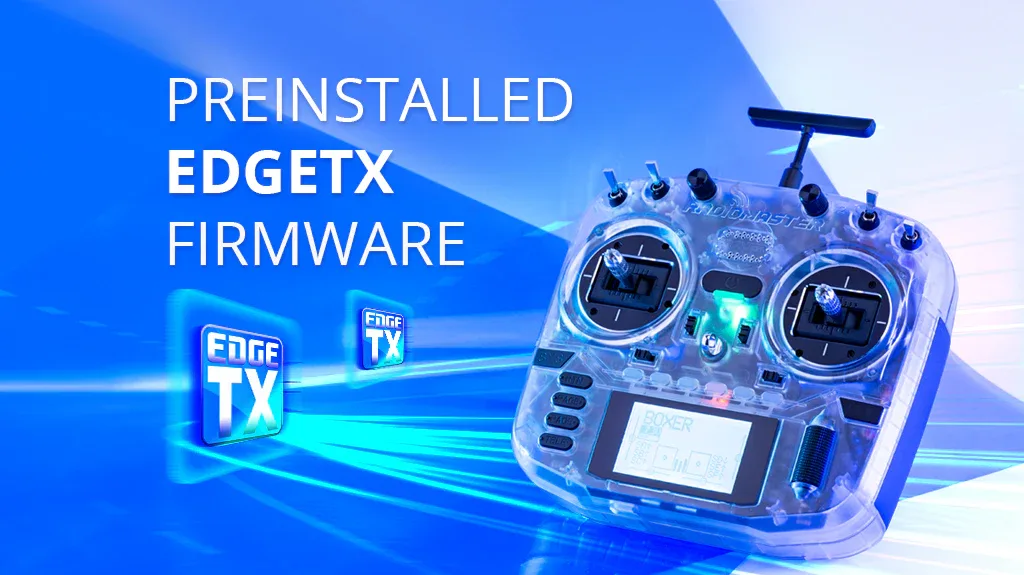

EdgeTX operating system and ExpressLRS RF system installed

Pre-installed with EdgeTX and ExpressLRS, BOXER has cutting-edge software to match its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring that open standards concepts are carried into the future.

Package includes

• 1 * BOXER radio transparent version
• 1 * Carrying Case
• 1 * T antenna
• 1 * USB-C cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen key
• 2*M4*4 screws
• 4*low tension springs
• 1 * stickers
• 1*Manual
• 1 * Gimbal White LED Kit (Ready to Install)
• 1 * 18650 battery tray (batteries are not included)
• 1 * RadioMaster Neck Strap for Transmitter
