Create exciting content!

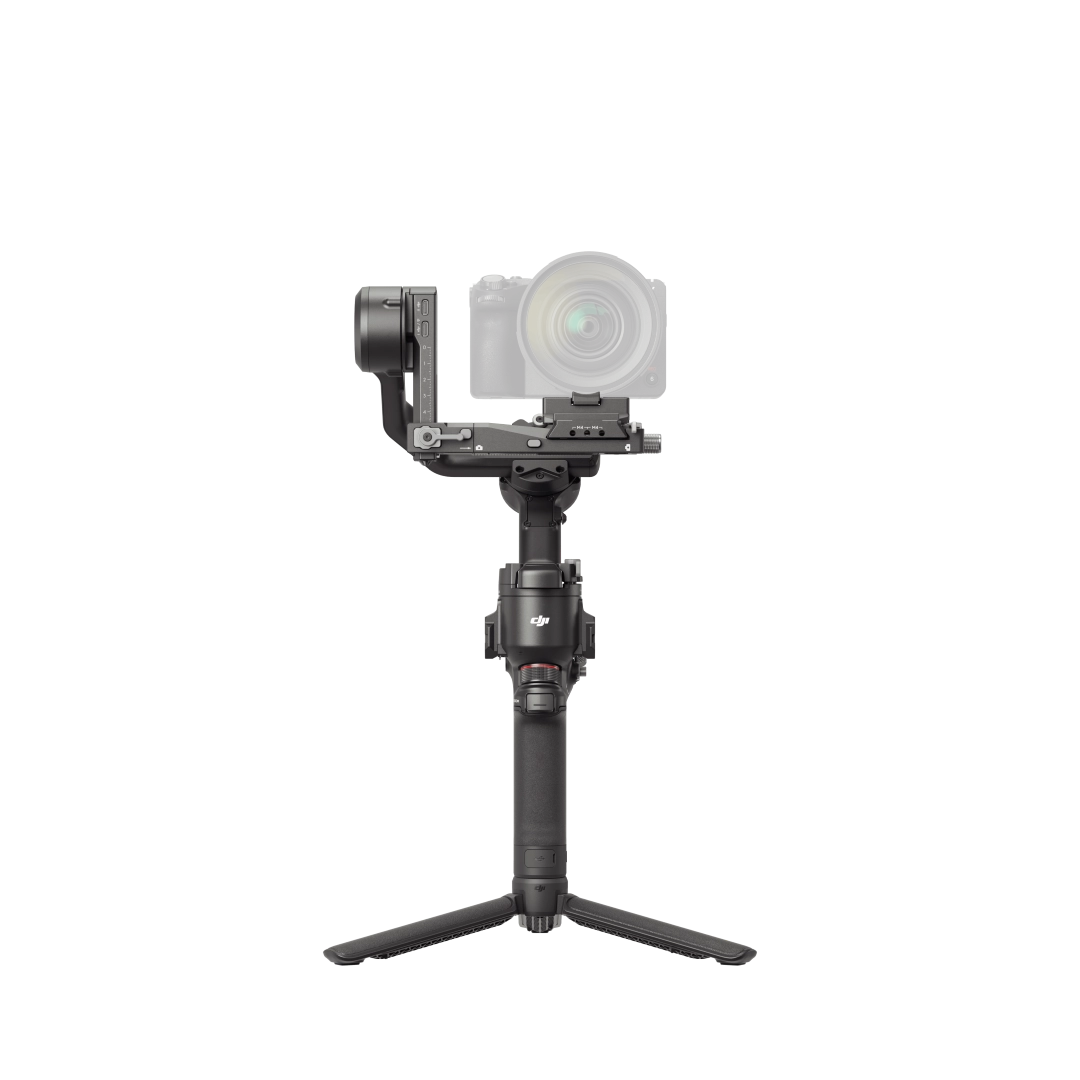

Discover a new dimension of creativity with DJI RS 4 - an innovative stabilizer that guarantees unparalleled image stability and smoothness. With a load capacity of up to 3 kg , Teflon coating, intuitive joystick operation and long battery life - DJI RS 4 will allow you to easily carry out any production at a professional level. Taking perfect shots, even in the most demanding conditions, is now child's play!
The basic version of DJI RS 4 offers everything you need to get started with the gimbal. The set includes accessories that will make your work easier, including the BG21 battery holder, which extends the operating time of the device, a quick mounting plate compatible with Arca-Swiss and Manfrotto systems, and the necessary cables, mountings and screws. This is a complete set that will allow you to create stable and smooth shots, while ensuring comfort and flexibility while working.
Confidence and stability in every situation
A modern, optimized 4th generation stabilization algorithm ensures incredibly smooth recordings, regardless of dynamic changes in the scene. Improved axis locks and an extended tilt axis increase work efficiency by reducing vibration. DJI RS 4 perfectly copes with both fast actions and more subtle movements, guaranteeing the highest level of stability, especially when shooting vertically and in dynamic scenes such as running or low perspective shots.
Accurate and light
DJI RS 4 is even lighter and has a load capacity of up to 3 kg, which allows it to be used with most cameras and lenses. Due to the fact that it is lighter, it is more comfortable to carry and use in various conditions , which allows you to easily take it on a trip or for an outdoor photo session. Discover freedom without limits!
Infinite perspectives
With support for vertical filming and remote zoom and lens focus adjustment, DJI RS 4 opens up completely new possibilities for you. The ability to use the joystick to control zoom on PZ and Clear Image Zoom lenses allows you to tailor every aspect of the shot to your vision. Use these innovative features to give your productions a cinematic quality!
Longer operating time
Problems with lack of energy are a thing of the past! Thanks to the modern BG70 battery holder, the operating time has been extended to as much as 29.5 hours . Fast charging via the universal USB-C port and the ability to power your camera and accessories with up to 18W ensure DJI RS 4 is ready to go all day long. Additionally, a wide ecosystem of accessories and an RSA port provide almost unlimited possibilities for personalizing and expanding the equipment. Use the DJI RS Control Grip and other accessories to create content your own way!
Smart screen lock
The modern heart of communication between you and DJI RS 4 is the OLED touch screen . The auto lock function protects against accidental touches, giving you full control over your device. The screen displays the current gimbal and joystick operating modes with reduced brightness, which additionally saves battery power. This makes each session even more smooth and enjoyable, and you can focus on realizing your vision without unnecessary interruptions.
Limitless creativity
Advanced capabilities such as Motionlapse, Track and Panorama create countless opportunities to implement unique ideas and experiment with new techniques. Thanks to Bluetooth integration, RS 4 enables remote camera control, further expanding your creative freedom.
Perfect precision of workmanship
DJI RS 4 is characterized not only by innovative functions, but also by perfect workmanship. Thanks to the Teflon coating of the gimbal arms, it ensures smooth and precise adjustment, and improved axis locks guarantee the stability and safety of the camera . Comfort and efficiency of use reach new levels, allowing you to focus on your creative process. Create with DJI RS 4 and push the boundaries of cinematic possibilities!
Set includes:
Gimbal | 1 |
BG21 battery holder | 1 |
Quick mounting plate (Arca-Swiss/Manfrotto) | 1 |
Extended handle/tripod (plastic) | 1 |
Lens mount bracket | 1 |
Multi-camera control cable (USB-C, 30 cm) | 1 |
USB-C charging cable (40 cm) | 1 |
DJI logo sticker | 1 |
Screw set | 1 |
Specification:
Technical data | Ports | Ronin Series Accessories (RSA)/NATO ports Mounting hole 1/4"-20 Cold foot Video transmission port (USB-C) RSS camera control port (USB-C) Focus Motor Port (USB-C) |
Technical data | Battery | Model: BHX711-3000-7.2V Type: LiPo 2 Capacity: 3000 mAh Energy: 21 Wh Maximum operating time: 12 hours (Measured with the gimbal balanced horizontally and in a stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging time: approx. 2.5 hours (measured using a charger supporting 18W fast charging. Chargers supporting the PD protocol are recommended) Suggested charging temperature: 5° to 40° C |
Technical data | Ronin App Requirements | iOS 11.0 or later Android 8.0 or later |
Technical data | Languages supported by touch screen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
Gimbal | Tested load capacity | 3kg |
Gimbal | Maximum controlled rotation speed | Pan: 360°/s Tilt: 360°/s Rotation: 360°/s |
Gimbal | Mechanical scope | Pan axis: 360° continuous rotation Roll axis: -95° to +240° Tilt axis: from -112° to +214° |
Physical features | Working frequency | 2.400-2.4835 GHz |
Physical features | Bluetooth transmitter power | <8 dBm |
Physical features | Working temperature | -20° to 45° C (-4° to 113° F) |
Physical features | Weight | Gimbal: Approx. 1066 gram Handle: Approx. 203 gram Extended handle/tripod (plastic): Approx. 183 gram Upper and lower quick attach plate: Approx. 98 gram |
Physical features | Dimensions | When folded: 245×255×75 mm (L×W×H, excluding camera, handle and extended handle/tripod) Unfolded: 370×191×189 mm (L×W×H, height includes handle and does not include extended handle/tripod) |
DJI Ronin image transmitter | Connections | Power/communication port (USB-C) HDMI port (mini HDMI) RSS camera control port (USB-C) |
DJI Ronin image transmitter | Extension port | Cold Shoe |
DJI Ronin image transmitter | Working frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
DJI Ronin image transmitter | Weight | 126 gram |
DJI Ronin image transmitter | Dimensions | 82×63×24 mm (length×width×height) |
DJI Ronin image transmitter | Transmitter power (EIRP) | 2.400-2.4835 GHz: 25 dBm (FCC) 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: 25 dBm (FCC/SRRC) 14 dBm (CE) |
DJI Ronin image transmitter | Battery | Capacity: 2970 mAh Compatible charger: 5V/2A Charging time: about 2.5 hours Working time: about 3.5 hours |
DJI Ronin image transmitter | Transmission range | 200m (SRRC/FCC) 100 m (CE) *Measured in an undisturbed, interference-free environment. |
DJI Ronin image transmitter | Delay | 60 ms |
DJI Ronin image transmitter | Operating current/voltage | 900mA/3.7V |
DJI Ronin image transmitter | Working temperature | 0° to 45° C (32° to 113° F) |
