Oculus M750D - Multibeam Chasing Sonar

Oculus M750D - Multi-beam imaging sonar for Chasing units

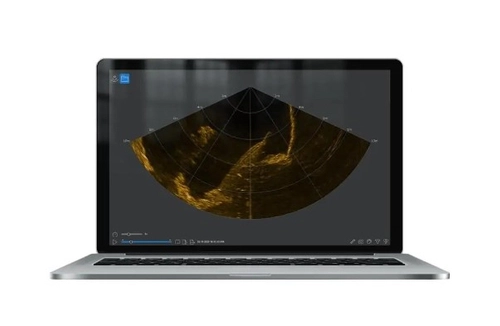

Oculus M750D offers as many as two modes of operation at frequencies of 750 kHz with a maximum range of 120 m and 1.2 MHz where it will reach a working range of up to 40 meters, but it will allow for much more detailed imaging.

Product features:

• Maximum working depth 500 meters
• Work at temperatures from -5 to +35 degrees Celsius
• Low weight 980g in air, 360g in water
• Maximum working range 120m/40m at 750 kHz/ 1.2 MHz
• Minimum range 0.1m
• Maximum refresh rate 40 Hz
• Number of bundles 512
• Beam separation 0.25 degree / 0.25 degree

For full functionality, you must have the manufacturer's software installed on your mobile device:

Click to go to the manufacturer's website

Specification:

• Dimensions: 125mm (L) x 122mm (W) x 62mm (H)
• Construction: Anodized Aluminum
• Weight: 980g (in air), 360g (in water)
• max. Depth: 500m
• temp. Range (operation): -5°C to +35°C
• temp. Rating (storage): -20°C to +50°C
• Operating frequency: 750kHz / 1.2MHz
• Range (maximum): 120m / 40m
• Range (minimum): 0.1m
• Range resolution: 4mm / 2.5mm
• Update rate (max.): 40 Hz
• Horizontal Aperture: 130°/130°
• Vertical aperture: 20°/20°
• Number of beams (max.): 512
• Angular resolution: 1° / 0.6°
• Beam separation: 0.25° / 0.25°
• Connector: Impulse IE55 series, 6-pin
• Communications: 4-wire 100-BaseT Ethernet, 2-wire DSL extender module
• Supply voltage: 12 V to 32 V DC non-isolated
• Power consumption: 10W to 35W (depending on model and range*)
• Integrated sensors: water pressure and temperature (for calculating the speed of sound)
