Oculus M750D - Multibeam Chasing Sonar
58 040,40 €
Oculus M750D - Multi-beam imaging sonar for Chasing units
Oculus M750D offers as many as two modes of operation at frequencies of 750 kHz with a maximum range of 120 m and 1.2 MHz where it will reach a working range of up to 40 meters, but it will allow for much more detailed imaging.
Product features:
- Maximum working depth 500 meters
- Work at temperatures from -5 to +35 degrees Celsius
- Low weight 980g in air, 360g in water
- Maximum working range 120m/40m at 750 kHz/ 1.2 MHz
- Minimum range 0.1m
- Maximum refresh rate 40 Hz
- Number of bundles 512
- Beam separation 0.25 degree / 0.25 degree
For full functionality, you must have the manufacturer's software installed on your mobile device:
Click to go to the manufacturer's website
Specification:
- Dimensions: 125mm (L) x 122mm (W) x 62mm (H)
- Construction: Anodized Aluminum
- Weight: 980g (in air), 360g (in water)
- max. Depth: 500m
- temp. Range (operation): -5°C to +35°C
- temp. Rating (storage): -20°C to +50°C
- Operating frequency: 750kHz / 1.2MHz
- Range (maximum): 120m / 40m
- Range (minimum): 0.1m
- Range resolution: 4mm / 2.5mm
- Update rate (max.): 40 Hz
- Horizontal Aperture: 130°/130°
- Vertical aperture: 20°/20°
- Number of beams (max.): 512
- Angular resolution: 1° / 0.6°
- Beam separation: 0.25° / 0.25°

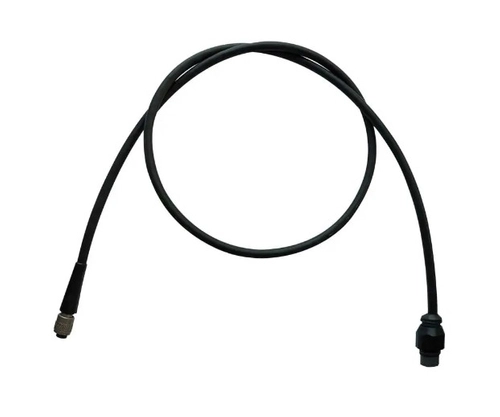

- Connector: Impulse IE55 series, 6-pin
- Communications: 4-wire 100-BaseT Ethernet, 2-wire DSL extender module
- Supply voltage: 12 V to 32 V DC non-isolated
- Power consumption: 10W to 35W (depending on model and range*)
- Integrated sensors: water pressure and temperature (for calculating the speed of sound)
Specification Oculus M750D - Multibeam Chasing Sonar
Brand
Blueprint SubSea
Symbol
118799
Producer code
118799
