Kimpok ELRS RX-2.4GHz Receiver

Kimpok ELRS RX-2.4GHz is a compact ExpressLRS receiver designed for FPV drones, RC wings, airplanes, and other remote-controlled models. Operating on the 2.4GHz band, it receives control signals from a compatible ELRS transmitter module, delivering fast response, a stable RC link, and reliable performance in a lightweight setup.

This receiver is a great fit for FPV builds where small size, low weight, and simple wiring really matter. The set shown in the product photo includes the receiver, a 2.4GHz antenna, connection cable, and protective heat shrink tubing - the core parts needed for installation in your model.

Fast and Reliable ExpressLRS 2.4GHz Control

The Kimpok RX-2.4GHz uses the popular ExpressLRS system, widely chosen by FPV hobbyists for its low latency, stable connection, and flexible configuration options. This receiver is intended for RC control signal reception only - it does not transmit video or audio. Its job is to maintain communication between your radio system and flight controller.

• ExpressLRS system - modern RC link for FPV drones and RC models.
• 2.4GHz operating band - a popular choice for lightweight and versatile ELRS builds.
• Low latency response - ideal for fast and dynamic FPV flying.
• Telemetry support - enables return data depending on your hardware configuration.
• Requires a 2.4GHz ELRS transmitter - must be used with a compatible TX module on the same band.

Compact Design for Small FPV and RC Builds

The compact receiver board makes installation easier in tight FPV drone frames, lightweight wings, and small RC aircraft. That is especially important in builds where space is limited and every gram affects the overall weight and flight performance.

The included protective sleeve / heat shrink helps shield the module after wiring. This gives the receiver better protection against accidental contact with the frame, wires, or other electronic components inside the model.

• Compact receiver for lightweight FPV and RC builds.
• Suitable for quads, toothpicks, wings, RC airplanes, and UAV projects.
• Small board size for easier installation in limited spaces.
• Protective tubing included to help secure the electronics.
• Connection cable included for easier integration with a flight controller.

2.4GHz Antenna Included

A 2.4GHz antenna is included in the package and should be connected to the receiver before powering up the system. Proper antenna placement has a major impact on control link quality, so it is best to position it away from power wires, ESCs, motors, and carbon fiber parts.

The antenna shown in the product photo is designed for easier installation in your model and better separation of the active antenna section from onboard electronics. Good antenna routing can help reduce signal loss and improve connection stability between your transmitter and the aircraft.

• 2.4GHz antenna included - essential for basic receiver installation.
• Easier antenna routing - helps keep it away from interference sources.
• Improved RF performance - when installed correctly in the model.
• Matched to the receiver band - designed for use with the RX-2.4GHz.

Flight Controller Connection and ELRS Setup

The Kimpok RX-2.4GHz receiver should be connected to your flight controller according to the markings on the board and wiring harness. In a typical ExpressLRS setup, communication runs through a serial port, so before first power-up you should verify the power, ground, TX, and RX connections.

For proper operation, the receiver and transmitter must use the same frequency band, a compatible firmware version, and the correct ExpressLRS settings. Before the first flight, it is a good idea to check binding, bind phrase, telemetry, model match, and failsafe settings to reduce the risk of link issues.

What’s Included and Usage Recommendations

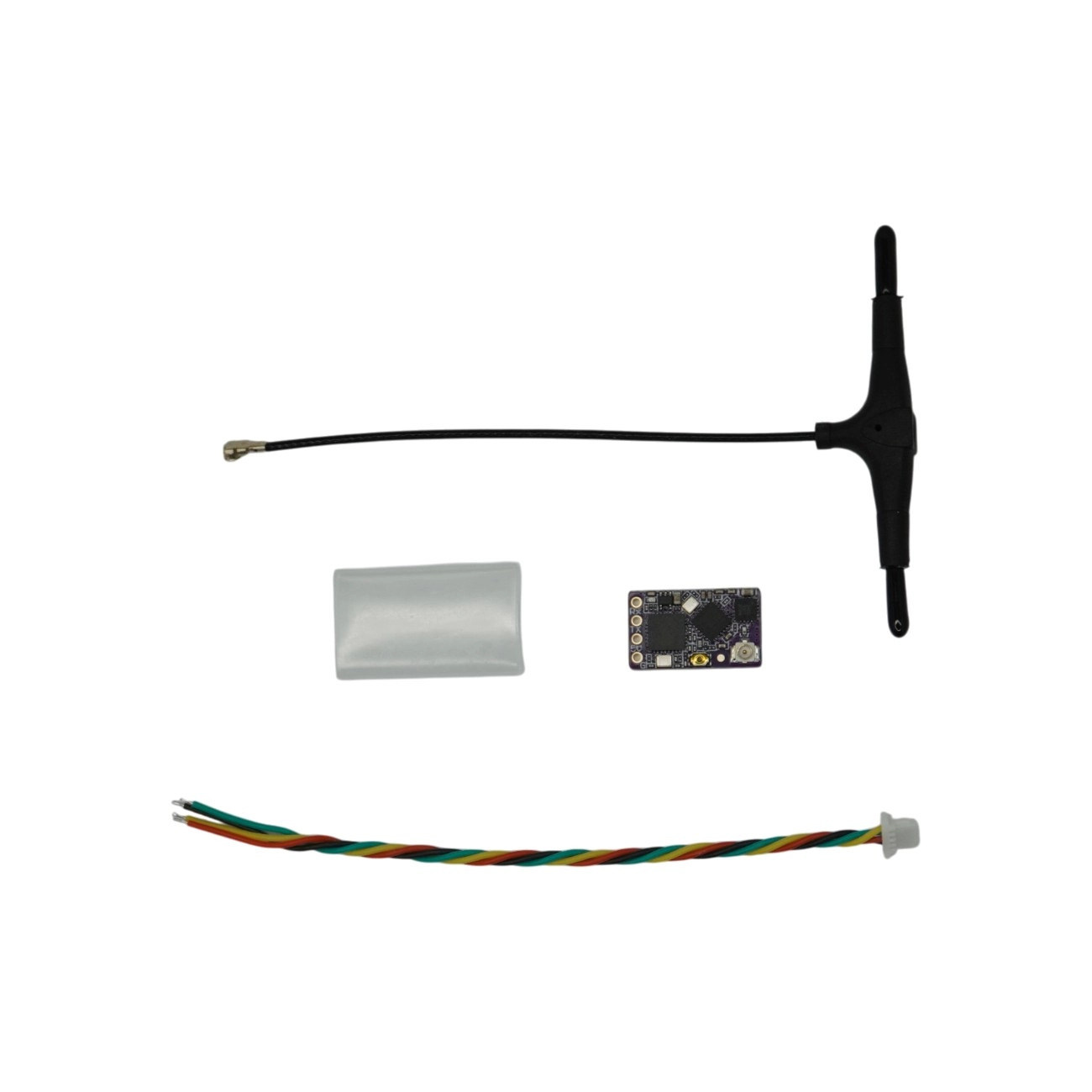

The package includes the items shown in the product image: ELRS receiver, 2.4GHz antenna, connection cable, and protective heat shrink tubing. This is a basic installation set for mounting the receiver in your model. A transmitter, flight controller, and other onboard electronics are not included.

• Kimpok ELRS RX-2.4GHz Receiver - 1 pc
• 2.4GHz Antenna - 1 pc
• Connection Cable - 1 pc
• Protective Sleeve / Heat Shrink Tubing - 1 pc

Before powering up, make sure the receiver and transmitter operate on the same band and use matching ExpressLRS settings. Install the antenna away from power leads, ESCs, motor wires, and carbon fiber parts. After installation, perform a range test and verify failsafe operation before the first flight.
