Kimpok Analog Transmitter KP-T2401

Kimpok KP-T2401 Analog FPV Video Transmitter 2.4GHz

The Kimpok KP-T2401 is a compact analog FPV video transmitter designed for drones, UAV platforms, RC models, and hobby projects that need reliable real-time video transmission on the 2.4GHz band. With two selectable output power levels: 100mW and 1W, it gives builders the flexibility to tune the setup for bench testing, short-range flights, or more demanding FPV applications where a stronger video signal matters.

If you are putting together your own analog FPV system, the KP-T2401 is a practical choice. It offers low-latency analog video transmission, 8 channels, a DC 12V input, and a compact metal housing that is easy to integrate into custom drone and video builds.

Key Benefits of the Kimpok KP-T2401

• 2.4GHz analog FPV video transmitter for drones, UAVs, RC models, and custom hobby electronics projects.
• Dual power output: 100mW / 1W for flexible use depending on range and signal requirements.
• 8 working channels in the 2370-2410MHz range.
• Low-latency analog video for real-time FPV viewing.
• Compact size for easier installation in tight builds.
• DC 12V power input for simple integration into compatible video systems.
• Metal case helps protect the electronics and supports heat dissipation.

Two Power Modes: 100mW and 1W

The Kimpok KP-T2401 supports two transmission power levels, making it easier to match the transmitter to your setup. 100mW is a solid option for configuration, short-range testing, and controlled environments. When you need a stronger signal reserve, 1W provides more output for more demanding FPV builds and technical applications.

• 100mW mode - great for setup, testing, and short-distance operation.
• 1W mode - stronger output for more demanding analog FPV installations.
• Analog transmission - ideal when low delay is more important than advanced digital features.
• DIY-friendly design - made for users building and tuning their own FPV video link.

8 Channels in the 2370-2410MHz Range

The KP-T2401 works across 8 channels in the 2370-2410MHz range, giving hobbyists more freedom when matching the transmitter with a compatible receiver and antenna. This is especially useful in custom FPV systems where the camera, receiver, antenna, and power supply are selected individually.

• 8 selectable channels for better frequency flexibility.
• 2370-2410MHz operating range within the 2.4GHz band.
• Designed for analog camera video transmission in FPV and UAV systems.
• Good for custom builds including drones, test platforms, and RC projects.
• Requires a compatible receiver working on the same frequency range.

Compact Housing and DC 12V Power Input

With dimensions of 46 x 28 x 8mm and a weight of about 50g, the Kimpok KP-T2401 is compact enough for many hobby-grade installations. Its slim metal enclosure makes mounting easier while also adding basic protection for the internal electronics. The DC 12V input fits systems that use a dedicated, stable power source for the video link.

• Size: 46 x 28 x 8mm - easy to fit into FPV and UAV projects.
• Weight: approx. 50g - useful when planning total build weight and balance.
• DC 12V input - simple power integration in compatible systems.
• Metal housing - added durability and better thermal support.
• Made for self-integration - a practical VTX module for custom analog video setups.

Kimpok KP-T2401 Technical Specifications

Package Contents and Recommended Use

The Kimpok KP-T2401 is a good fit for hobbyists looking for a straightforward 2.4GHz analog FPV video transmitter for a custom setup. It works well in projects where simple operation, low-latency video, and the option to choose between lower and higher transmission power are the key priorities.

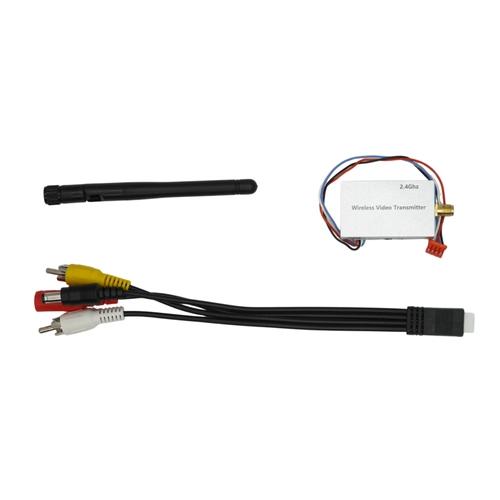

• Kimpok KP-T2401 analog transmitter - 1 pc.

Important: Before powering on the transmitter, connect a compatible antenna, use a receiver that supports the same frequency range, and make sure the unit is supplied with stable DC 12V power. The user should also verify local regulations regarding allowed frequencies and transmission power.
