Kimpok Analog Transmitter KP-T1750

Kimpok KP-T1750 Analog FPV Video Transmitter 1.7GHz 5W

Kimpok KP-T1750 is a high-power analog FPV video transmitter built for drones, UAV platforms, and hobby projects where stable video transmission, strong signal output, and low latency really matter. Operating in the 1.7GHz band and delivering up to 5W of output power, this VTX is a great fit for more demanding FPV builds where standard low-power transmitters may not be enough.

Designed with long-range flights, racing drones, and advanced UAV setups in mind, the KP-T1750 offers a wide DC 7-36V input range with support for 2S-8S power systems. Active cooling and IRC Tramp support make integration easier and allow more convenient transmitter control in compatible configurations.

Key Benefits of the Kimpok KP-T1750

• Up to 5W output power - strong signal performance for demanding FPV and UAV applications.
• Selectable power levels - switch between 25mW and 5000mW depending on your setup and flight conditions.
• Analog FPV transmission - low-latency video feed for real-time flying.
• 1.7GHz operating band - an interesting alternative to typical 5.8GHz FPV systems.
• Video and audio transmission support - suitable for expanded analog FPV systems.
• IRC Tramp control protocol - easier configuration in supported builds.
• Wide input voltage range - compatible with 2S-8S power setups.

Up to 5W Power for Serious FPV Builds

The standout feature of the Kimpok KP-T1750 is its high transmission power of up to 5000mW. Users can switch between 25mW for bench setup or short-range testing and 5000mW for applications that need extra signal headroom. This makes it a practical choice for hobbyists building a custom analog FPV video system and looking to match transmitter performance to real flight conditions.

8 Channels Across 1680-1960MHz

The Kimpok KP-T1750 operates across the 1680-1960MHz range and provides 8 channels, making it easier to match the transmitter with a compatible receiver, antenna, and installation type. The 1.7GHz band can be especially useful for specialized FPV and UAV projects that go beyond the more common 5.8GHz standard.

• Frequency range: 1680-1960MHz - easier matching with compatible receiving equipment.
• 8 operating channels - more flexibility when building an analog video link.
• FPV VTX module - designed for transmitting video from an analog camera.
• Great for long-range configurations - a solid option for distance-focused drone builds.
• MCX antenna connector - compact connection for a compatible antenna.

Aluminum Housing, Heatsink and Cooling Fan

When running high output power, efficient heat dissipation is essential. The Kimpok KP-T1750 uses an aluminum housing, heatsink, and active cooling fan to help maintain stable operation during flights and ground testing. This design helps reduce the risk of overheating, especially when the transmitter is working at 5000mW or installed in a tight drone frame.

• Aluminum case - helps transfer heat away from the transmitter electronics.
• Integrated heatsink - improves thermal dissipation.
• Active cooling fan - supports stable performance at high power levels.
• Compact size - easier installation in FPV drones and transmission modules.
• Approx. 38g weight - a sensible balance of power, cooling, and weight.

Technical Specifications

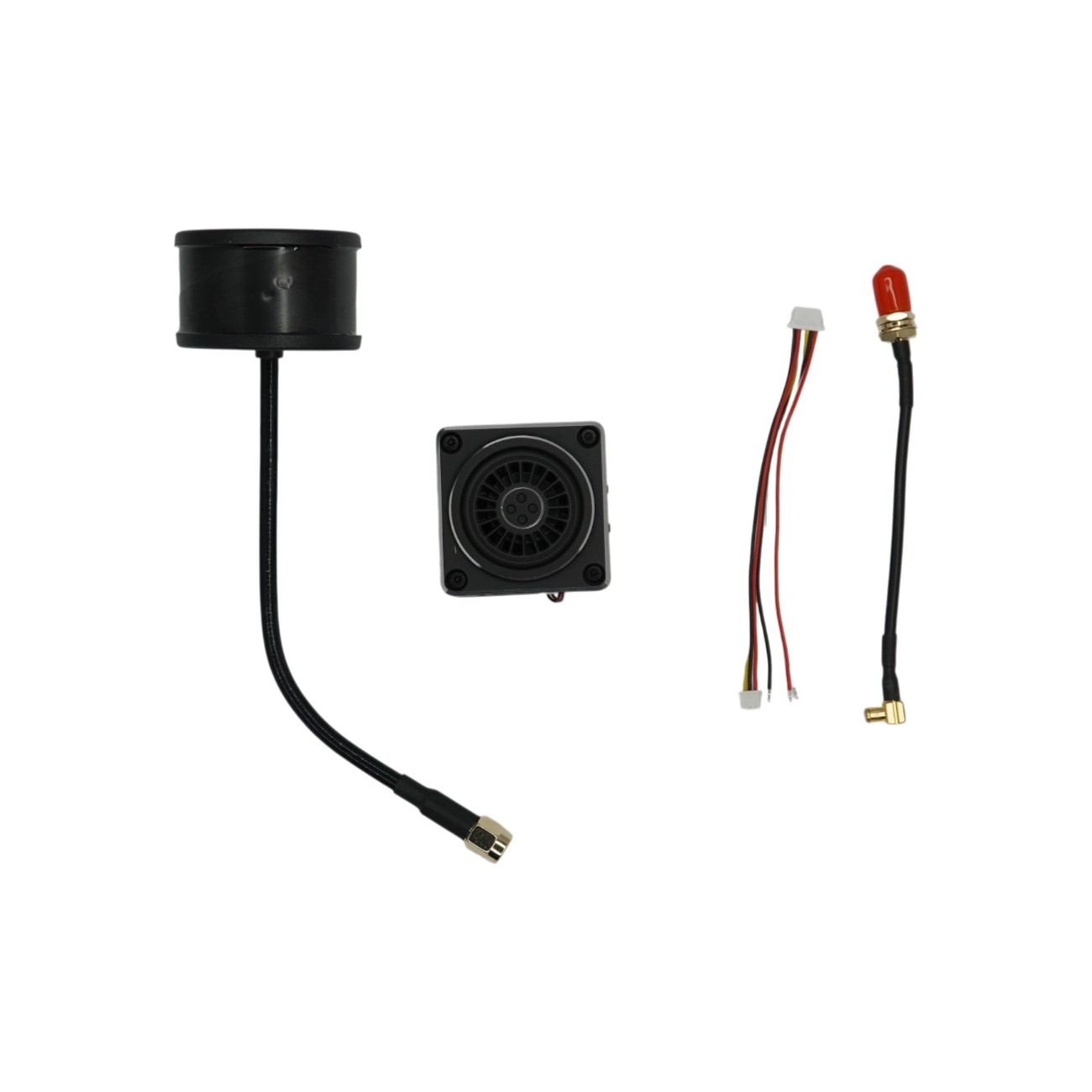

Package Contents and Recommended Use

Kimpok KP-T1750 is a great choice for hobbyists putting together a 1.7GHz analog FPV system and looking for high output power, reliable cooling, and a wide supply voltage range. It works well in racing drones, long-range builds, test platforms, and UAV projects that require analog video transmission over longer distances.

• Kimpok KP-T1750 analog transmitter - 1 pc
• Transmitter antenna - 1 pc
• Connection cable - 1 pc

Note: Before powering on the transmitter, always connect a compatible antenna, verify the correct input voltage, and ensure proper airflow around the housing. The user should also confirm that the selected frequency and transmission power comply with local radio regulations.
