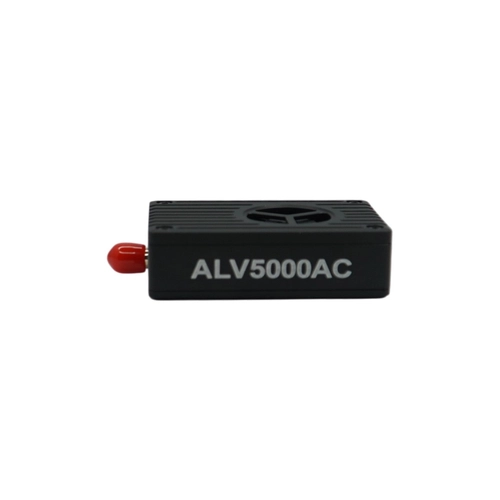

Kimpok Analog Transmitter ALV5000AC

Kimpok ALV5000AC Analog FPV Video Transmitter 6.1–7.2GHz 5W

The Kimpok ALV5000AC is a high-power analog FPV video transmitter built for advanced drone setups, UAV platforms, and custom video transmission systems where strong signal performance, stable operation, and wider frequency flexibility matter most. Operating in the 6.1–7.2GHz range, this 64-channel VTX offers adjustable output power up to 5000mW, making it a great choice for hobbyists building a custom analog FPV link beyond the standard 5.8GHz band.

Designed for users who like to fine-tune their gear, the ALV5000AC gives you the freedom to match the transmitter with your preferred receiver, antenna, power setup, and frame layout. IRC Tramp support makes changing settings easier in compatible FPV systems, while the wide 7–36V DC input range allows convenient integration into many drone and UAV builds.

Adjustable Power Up to 5000mW

One of the key highlights of the Kimpok ALV5000AC is its selectable transmission power. You can choose between 25mW, 2500mW, and 5000mW depending on your application. That means it works well both for low-power bench testing and setup, as well as for more demanding long-range or high-interference environments where a stronger analog video signal is needed.

• Up to 5000mW output power – strong signal reserve for demanding FPV and UAV applications.
• Three power levels – 25mW, 2500mW, and 5000mW for flexible operation.
• Analog video transmission – low latency for real-time FPV viewing.
• 6.1–7.2GHz operating band – ideal for non-standard analog video systems.
• Great for long-range projects – a solid option when you need a stronger video link.

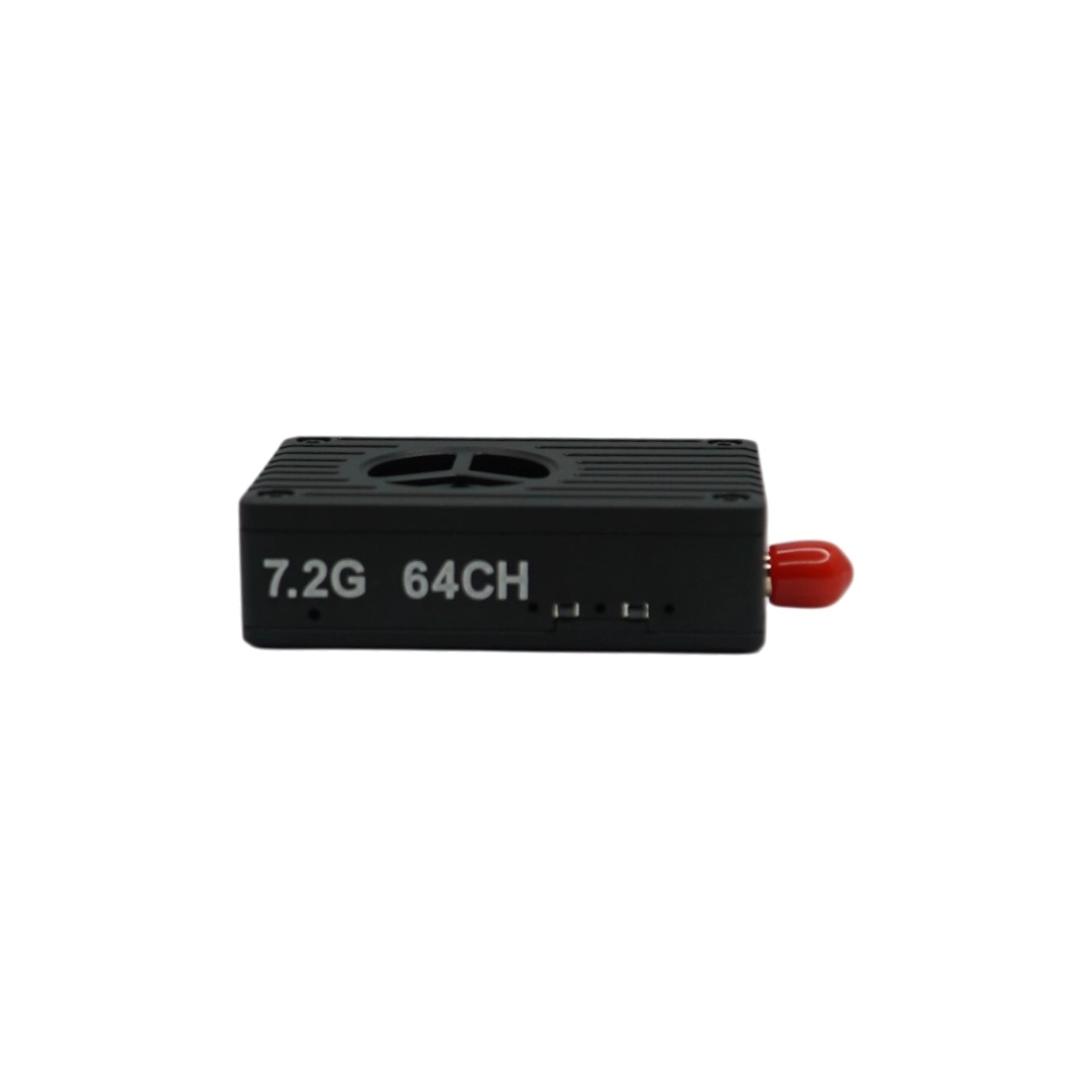

64 Channels Across 6100–7200MHz

The Kimpok ALV5000AC supports 64 channels in the 6100–7200MHz range. This wide frequency coverage gives hobby builders more flexibility when matching the transmitter with a compatible receiver, antenna, and local RF conditions. It is especially useful in custom FPV projects where fine control over the analog video setup is important.

• 64 working channels – more freedom when choosing the right frequency.
• 6100–7200MHz range – broad coverage for specialized FPV systems.
• Alternative to standard 5.8GHz VTX units – ideal for more unique builds.
• Made for analog FPV – designed to transmit video from an analog camera.
• Flexible configuration – easier matching with your receiver and antenna setup.

Active Cooling and Easy Integration

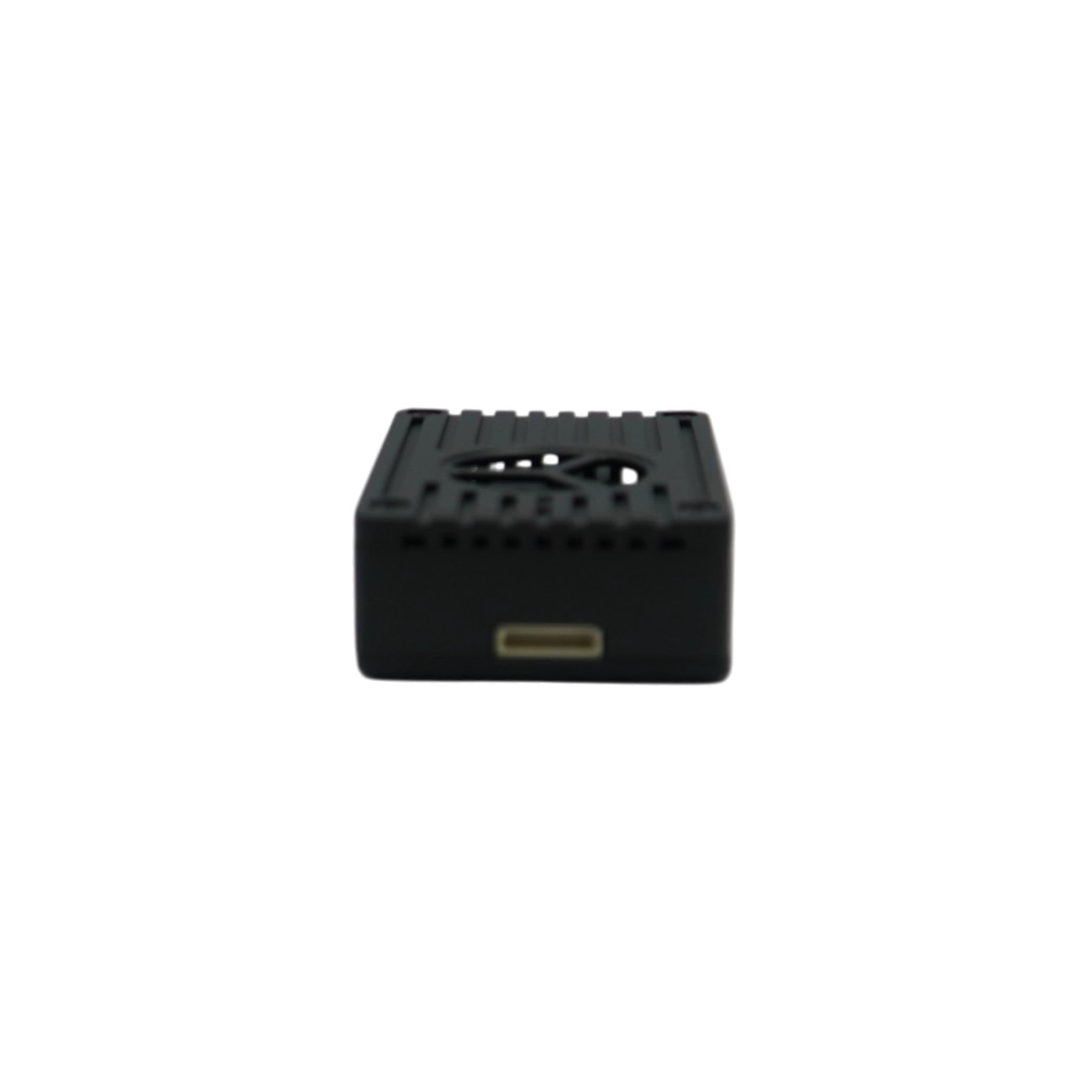

High output power requires effective heat management, and the ALV5000AC is ready for that. It features a heatsink-style housing and an active cooling fan to help maintain stable operation during flights and bench testing. The transmitter weighs about 56g, measures 65.8 x 37.3 x 19.3mm, and uses a 20 x 20mm mounting pattern, making it suitable for a wide range of FPV and UAV projects.

• Active cooling fan – helps keep the VTX stable at higher power levels.
• Heatsink housing – improves heat dissipation from the transmitter module.
• 7–36V DC input – wide voltage range for flexible installation.
• Supports 2S–8S battery setups – easy to match with different drone power systems.
• IRC Tramp support – convenient parameter control in compatible FPV systems.

Technical Specification – Kimpok ALV5000AC

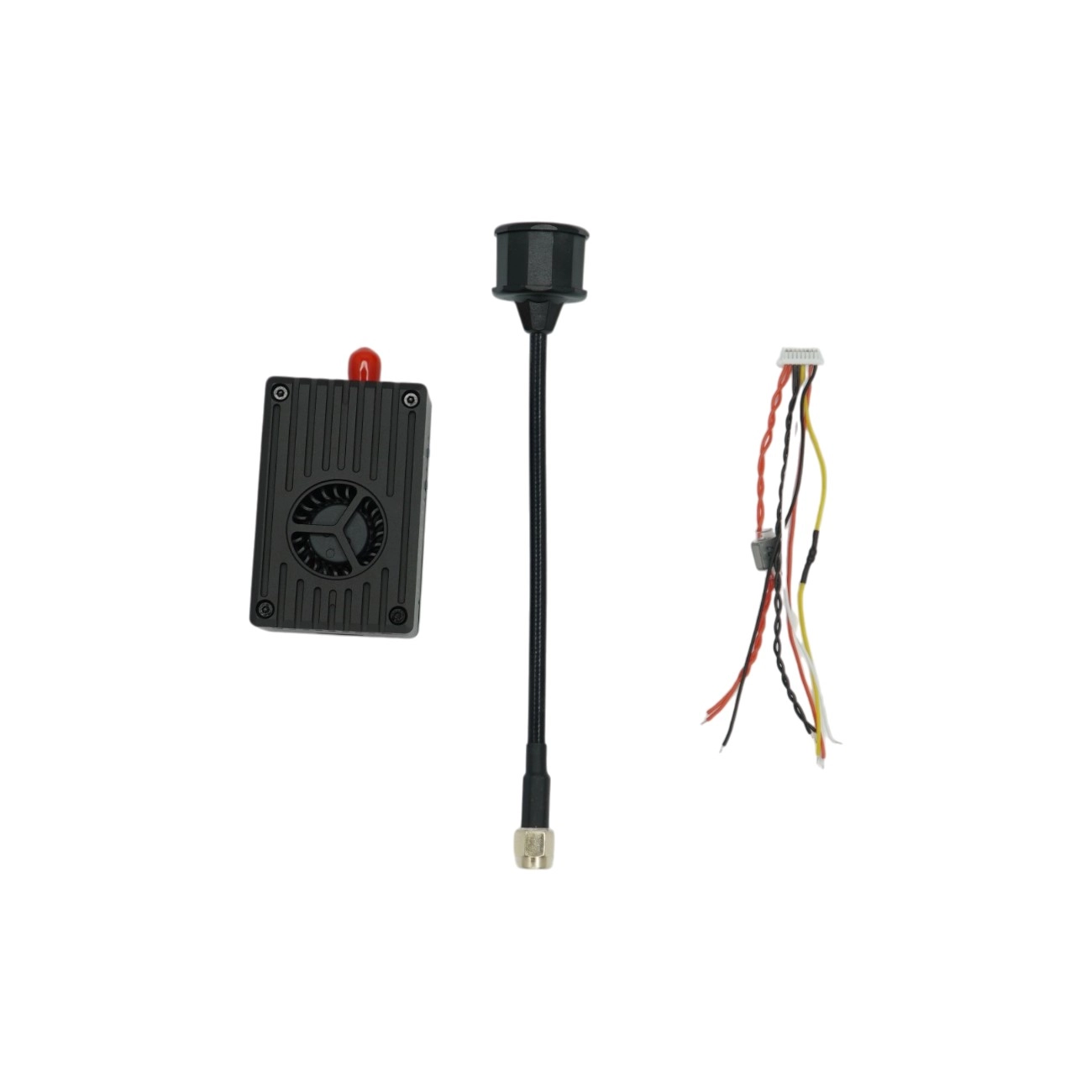

What’s Included and Best Use Cases

The Kimpok ALV5000AC is a smart pick for hobby users building an analog FPV video link in the 6.1–7.2GHz band and looking for high output power, a wide channel range, and active cooling. It is best suited for custom projects where the receiver, antenna, power source, and mounting method are selected individually.

• Kimpok ALV5000AC analog transmitter – 1 pc
• Antenna – 1 pc
• Connection cable – 1 pc

Important: Before powering on the transmitter, always connect a compatible antenna, verify the power input, and ensure proper airflow around the module. You should also check whether the selected frequency range and transmission power comply with your local radio regulations.
