Frame for BetaFPV Pavo Pico II (black) | O4 Pro

BetaFPV Pavo Pico II Frame (Black) | O4 Unit

The BetaFPV Pavo Pico II Brushless Whoop Frame is a lightweight, durable platform designed for pilots who want a clean build, easy assembly, and full compatibility with the DJI O4 ecosystem. Built with a newly redesigned carbon plate and a reinforced structure, this frame supports both DJI O4 and O4 Pro, making it a smart choice for current setups and future upgrades. Paired with the O4 Air Unit Bracket II and its vibration-damping system, it helps reduce jello and delivers smoother, more professional-looking HD footage.

Key Features

• Designed for DJI O4 and O4 Pro – The updated carbon plate supports both video systems, giving your build more flexibility and long-term compatibility.
• Smooth HD footage – The O4 Air Unit Bracket II uses 4 vibration-damping balls to minimize jello and improve video stability.
• Quick and easy assembly – The guided structure and 4-screw mounting design make installation fast, secure, and beginner-friendly.
• Rigid and durable construction – Reinforced injection-molded design and multiple support points create a lightweight but tough frame for confident flying.
• DIY-friendly platform – Supports additional battery straps and 3D-printed parts, making it easier to tailor the setup to your flying style.

Specifications

• Product name: Pavo Pico II Brushless Whoop Frame
• Material: PA12 / PP
• Wheelbase: 80 mm
• Color: Black / Transparent Gray
• Carbon plate thickness: 1.5 mm
• Camera mounting width: 14 mm
• Flight controller mounting pattern: 25.5 × 25.5 mm, compatible with standard whoop FCs
• Motor mounting pattern: 3-M1.4-φ6.6 mm
• Battery slot size: 16 × 12.7 mm

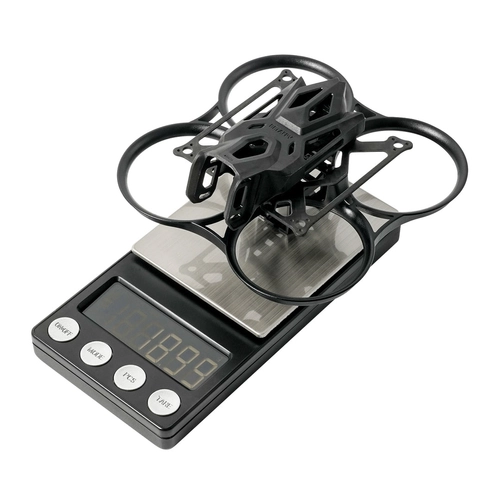

• Weight: 19 g (O4 frame), 9 g (whoop duct)

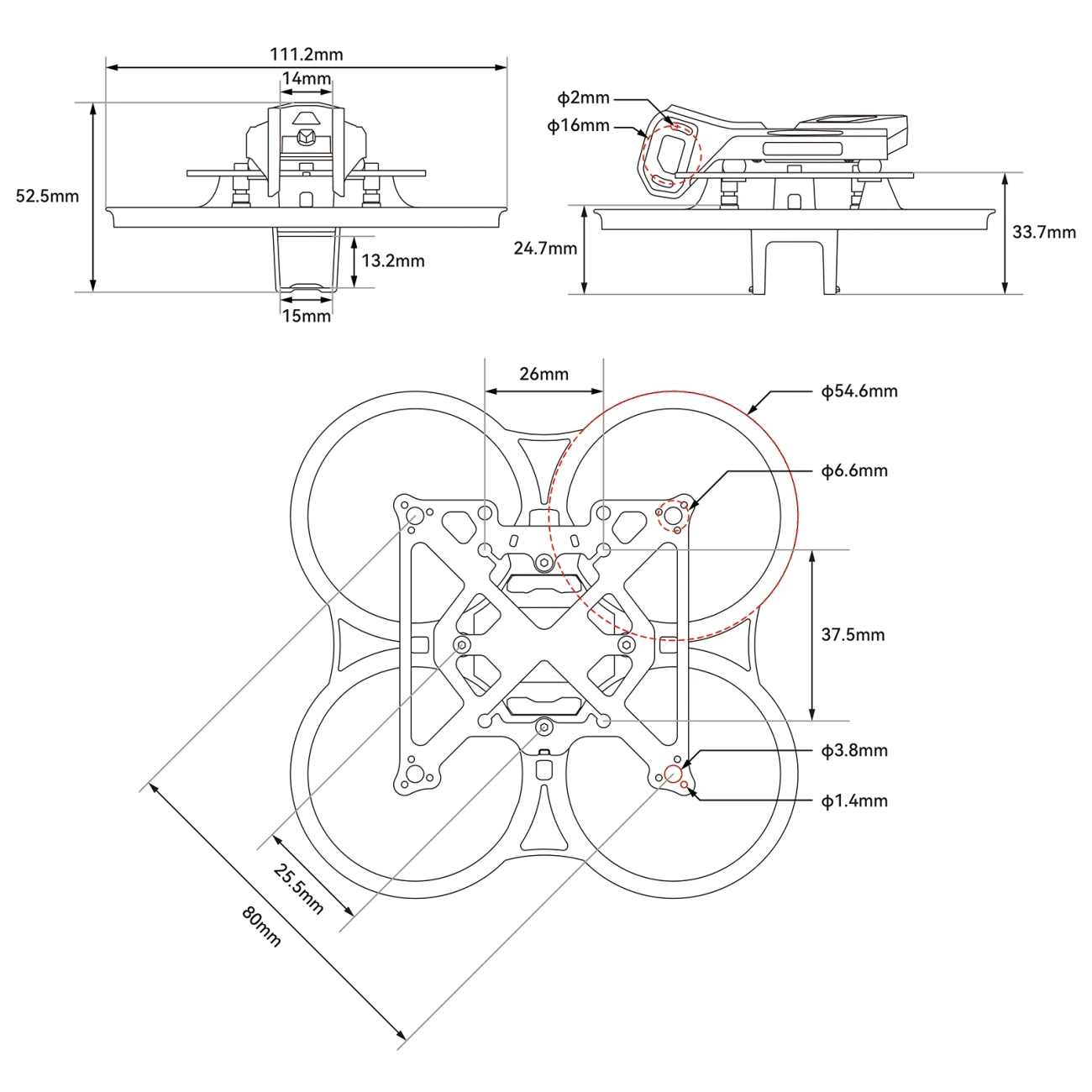

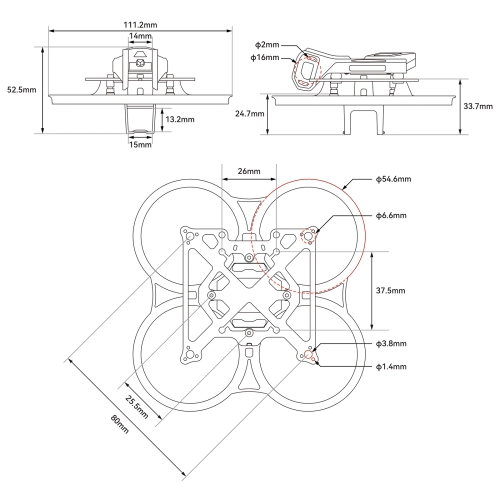

Dimensions

Built for a Faster, Cleaner FPV Setup

The Pavo Pico II frame simplifies the building process without sacrificing strength. Thanks to integrated nuts, only four screws are needed to create a secure, impact-resistant connection. The advanced injection-molded structure works together with three mounting support points to keep the carbon plate properly aligned and reduce flex, resulting in a highly rigid and reliable platform for everyday flying.

Ready for DJI O4 HD Performance

The redesigned carbon plate is engineered for seamless integration with both DJI O4 and DJI O4 Pro. This gives pilots more freedom when planning a new build or upgrading an existing one. Combined with optimized PID presets for O4 systems, the frame helps make tuning easier and lets you get in the air with more confidence and less hassle.

Flexible for DIY Customization

For hobbyists who like to fine-tune every detail, the Pavo Pico II frame offers excellent room for customization. You can add battery straps or 3D-printed accessories to adapt the frame to different battery sizes and setup preferences, making it easier to create a build that matches your style of flying and performance goals.

What’s Included

• 1 × Pavo Pico II carbon plate
• 1 × Pavo Pico II whoop duct
• 1 × Top plate for O4 Air Unit Bracket II
• 1 × Bottom plate for O4 Air Unit Bracket II
• 2 × 5.8G VTX antennas
• 6 × Vibration-damping balls for flight controller (8 mm)
• 6 × Vibration-damping balls for O4 Air Unit Bracket II (8 mm)
• 6 × Damping shims for O4 Air Unit Bracket II (1.5 mm)
• 6 × M2*14 flat head socket cap screws
• 6 × M2*4 socket head self-tapping screws
• 8 × M1.4*6 Phillips flat washer head tapping screws
• 1 × Phillips screwdriver
• 1 × H1.5 hex screwdriver
