BetaFPV Pavo Pico II Frame Duct for O4 Unit (Transparent Gray)

Upgrade your micro FPV build with the BetaFPV Pavo Pico II Brushless Whoop Frame Duct in transparent gray, designed for smooth integration with the DJI O4 Unit. This lightweight yet durable frame system combines quick installation, impressive rigidity, and vibration-damping support to help you build a clean, reliable setup for stable flight and crisp HD footage.

Thanks to its newly designed carbon plate, the Pavo Pico II platform supports both DJI O4 and DJI O4 Pro, making it a smart choice for pilots who want performance today and flexibility for future upgrades. Paired with the O4 Air Unit Bracket II, the frame helps reduce unwanted vibrations and minimizes “jello” in your video.

Key Features

• Built for DJI O4: Fully compatible with the DJI O4 Unit and ready for O4 Pro support.
• Anti-vibration camera mounting: The O4 Air Unit Bracket II with 4 damping balls helps reduce jello for smoother HD footage.
• Fast and simple assembly: A guided structure and secure 4-screw mounting system make installation quick and dependable.
• Rigid and lightweight construction: Reinforced injection-molded design provides excellent strength without adding unnecessary weight.
• Future-ready carbon plate: The redesigned base expands compatibility while maintaining a clean and efficient build layout.
• DIY-friendly platform: Supports further customization with battery straps or 3D-printed accessories.

Specifications

• Product name: Pavo Pico II Brushless Whoop Frame
• Material: PA12 / PP
• Wheelbase: 80 mm
• Color: Black / Transparent Gray
• Carbon plate thickness: 1.5 mm
• Camera mount spacing: 14 mm
• Flight controller mounting: 25.5 × 25.5 mm, compatible with standard whoop FCs
• Motor mounting pattern: 3-M1.4-φ6.6 mm
• Battery slot size: 16 × 12.7 mm
• Weight: 19 g (O4 frame), 9 g (whoop duct)

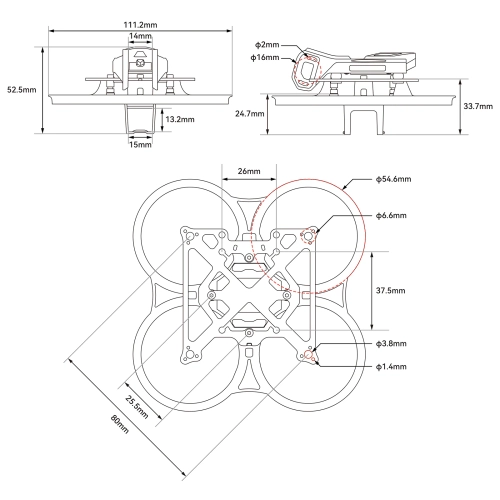

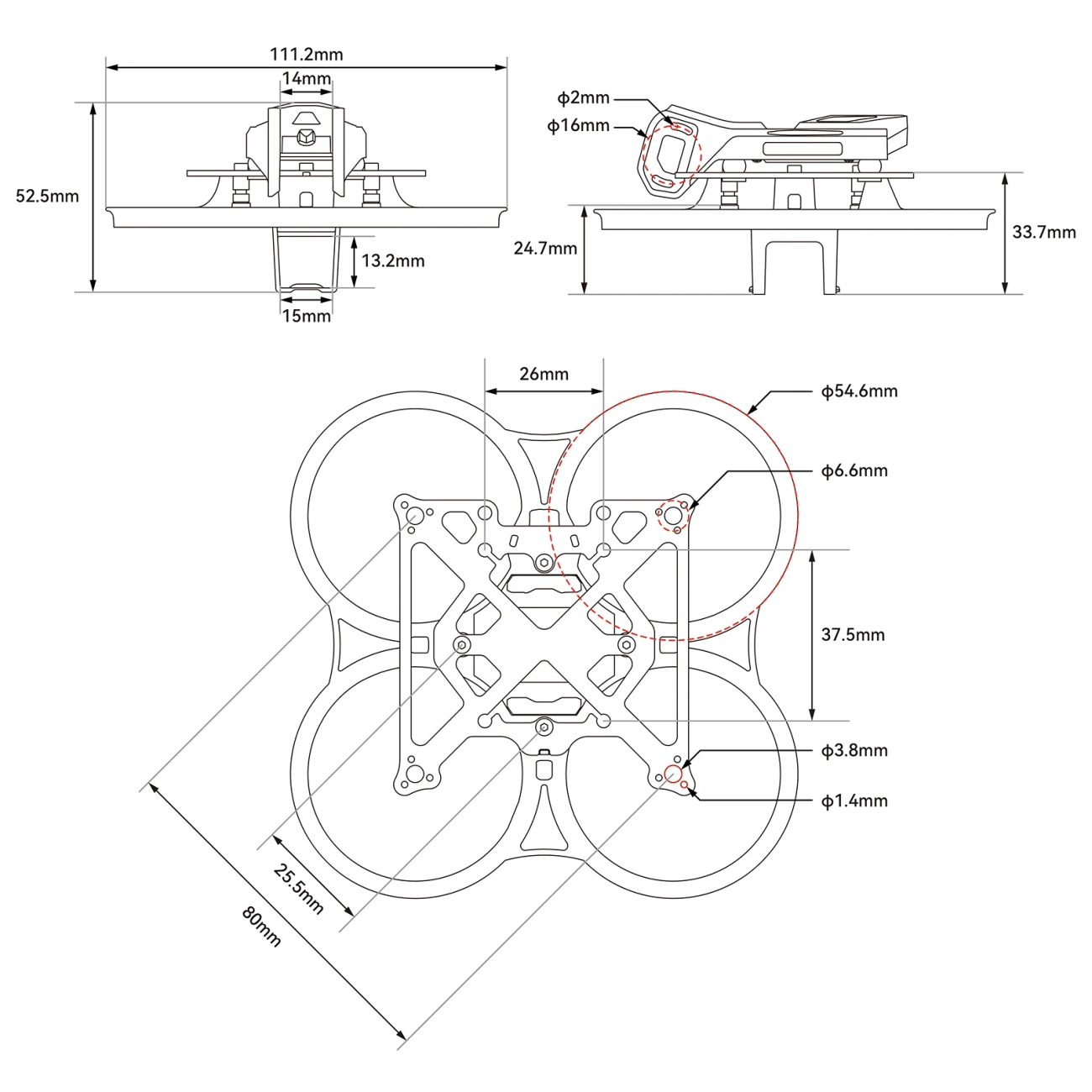

Dimensions

Why Choose the Pavo Pico II Frame?

The Pavo Pico II frame is designed to make building easier without sacrificing durability. With built-in nuts and a streamlined 4-screw assembly system, it delivers a secure connection that stands up well to bumps and everyday flying. The advanced injection-molded structure works together with three mounting points to keep the carbon plate properly aligned and reduce flex, resulting in a highly rigid platform for confident flying.

The redesigned carbon plate supports both DJI O4 and DJI O4 Pro, helping future-proof your build while unlocking impressive HD video performance. With PID presets optimized for both O4 systems, dialing in a great flying experience is easier—just select the right setup through the OSD and you are ready to fly.

For hobbyists who like to tweak and personalize their quad, this frame also offers excellent DIY potential. You can add battery straps or 3D-printed parts to adapt the setup to different battery sizes and flying styles, making it a flexible base for a custom micro FPV build.

What’s Included

Pavo Pico II Brushless Whoop Frame (Whoop Duct version)

• 1 × Pavo Pico II Whoop Duct
