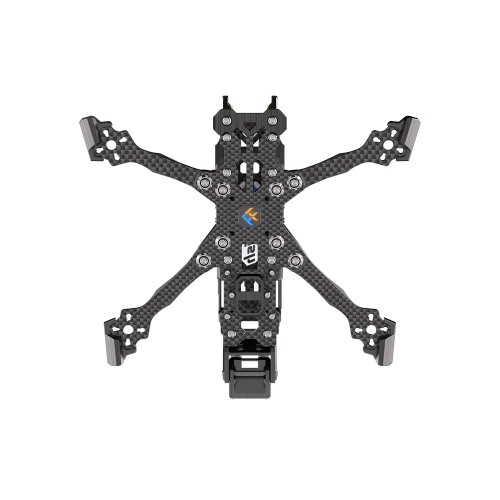

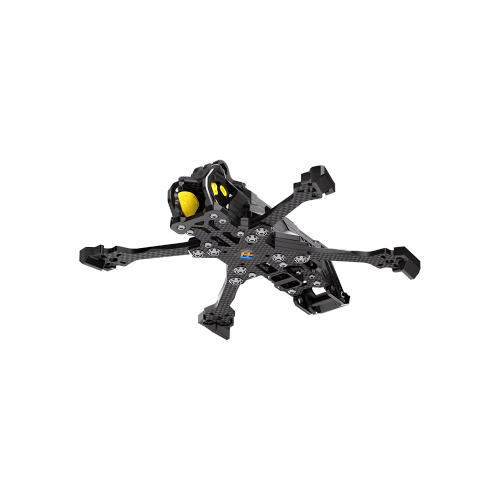

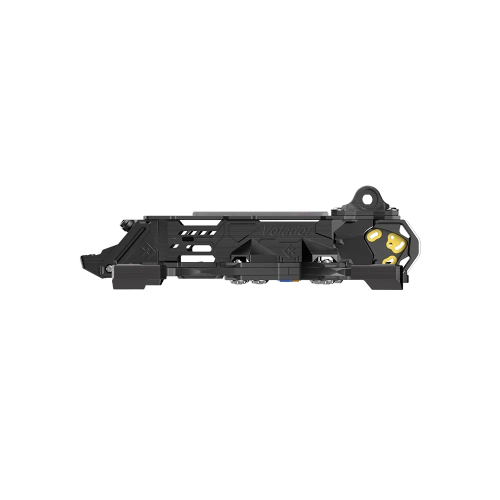

FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR Freestyle T700 frame (black)

FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR Freestyle T700 Frame (Black)

The new FlyFishRC Volador VD4 weighs just 127 g and features a Deadcat layout, giving you a clean in-flight view with no propellers in the frame. Newly designed CNC side plates combined with a silicone-damped camera mount work perfectly with the O4 VTX system, helping eliminate jello and deliver a smoother, cleaner FPV experience.

Key features:

• Strong, lightweight, and stable frame design that is easy to assemble
• Main structure combines T700 carbon fiber with high-strength CNC-machined aluminum
• Precisely chamfered edges to reduce weight, protect wires, and improve the overall finish
• Innovative locking mechanisms that physically reduce frame resonance
• High-quality TPU components for improved durability and stability
• Wide compatibility and effective vibration damping
• Dual mounting options for stack, VTX, and motors
• Compatible with multiple flight controller and ESC setups, as well as analog and digital FPV systems
• Includes all accessories needed for both analog and HD builds
• Special silicone camera damping pads help eliminate jello in DVR footage

Specifications:

• Arm thickness: 4 mm
• Top plate thickness: 2 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Brace thickness: 4 mm
• CNC side plate thickness: 5 mm
• Propeller size: 4 inch
• Material: T700 carbon fiber
• FPV camera width: 19 mm / 20 mm
• Weight: approx. 127 g (with printed parts)
• Color: black / yellow
• Frame dimensions: 195 × 155 × 33 mm
• Wheelbase: 183 mm
• Stack mounting: 20 × 20 mm (M3) / 30.5 × 30.5 mm (M3)
• Stack installation height: 22 mm
• VTX mounting: 20 × 20 mm (M2) / 25.5 × 25.5 mm (M2)
• Motor mounting: 12 × 12 mm (φ2 mm) / 16 × 16 mm (φ3 mm)

Package includes:

• 1 × Volador VD4 O4 Pro frame kit
