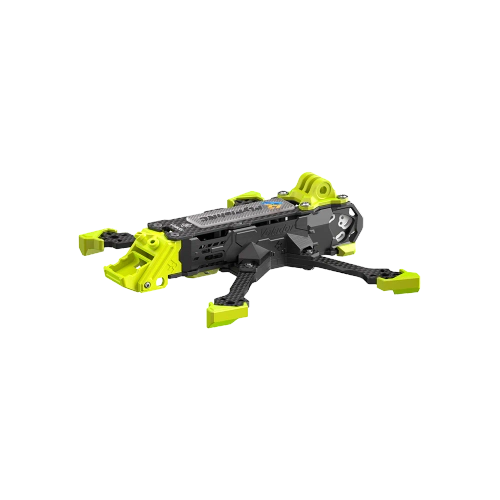

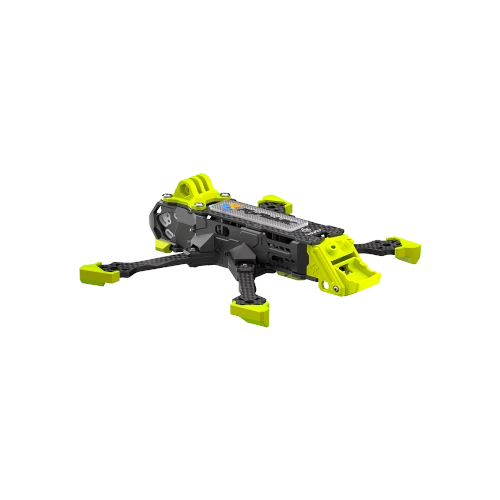

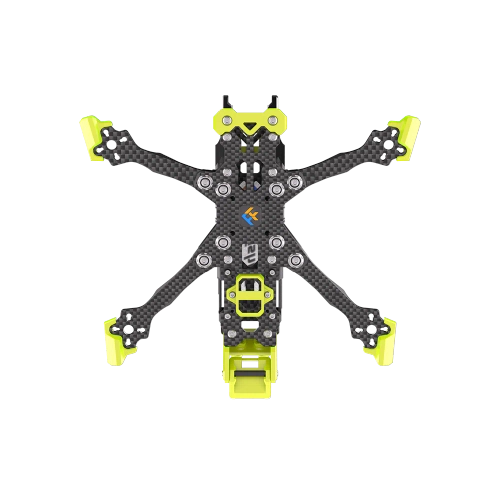

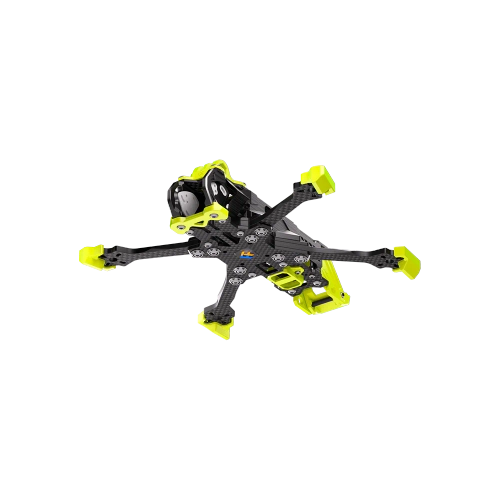

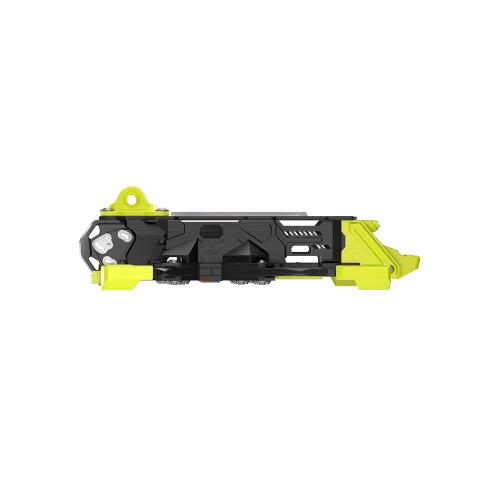

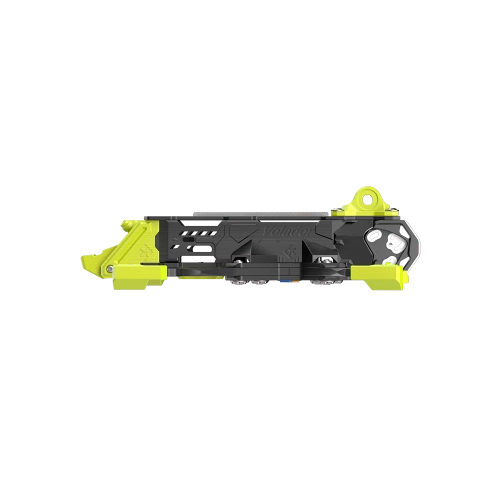

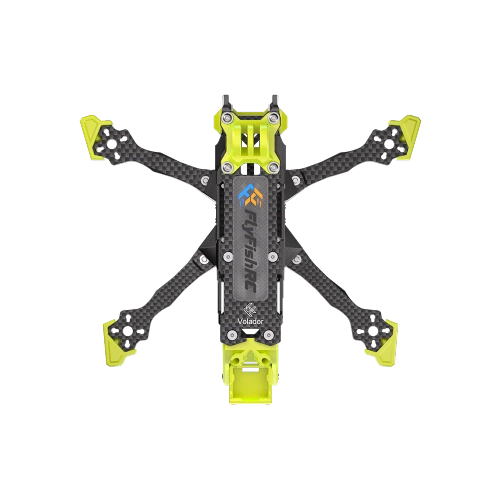

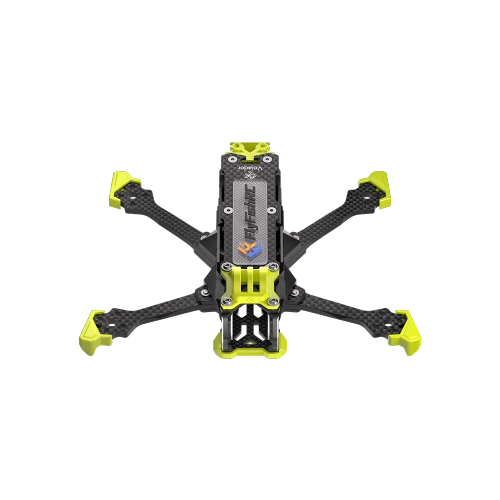

FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR Freestyle Frame T700 Yellow

FlyFishRC Volador II VD4 O4 Pro Deadcat FPV LR Freestyle T700 Frame (Yellow)

The new FlyFishRC Volador VD4 weighs just 127 g and features a Deadcat layout for a clean in-flight view with no propellers in the camera frame. The newly designed CNC side plates, combined with a silicone-damped camera mount, work perfectly with the O4 VTX system to effectively eliminate “jello” and deliver a smoother, cleaner FPV experience.

Key features:

• Strong, lightweight and stable frame design that is easy to assemble
• Main structure combines T700 carbon fiber with high-strength CNC-machined aluminum
• Precisely chamfered edges help reduce weight, protect wires and improve the overall finish
• Innovative locking mechanisms help physically reduce frame resonance
• High-quality TPU components increase durability and improve stability
• Wide compatibility and effective vibration damping
• Dual mounting options for stack, VTX and motors
• Compatible with a wide range of flight controllers, ESC/FC setups, and both analog and digital FPV systems
• Includes all accessories needed to build either an analog or HD version
• Special silicone damping pads for the VTX camera mount help eliminate jello in DVR footage

Specifications:

• Arm thickness: 4 mm
• Top plate thickness: 2 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Brace thickness: 4 mm
• CNC side plate thickness: 5 mm
• Propeller size: 4 inch
• Material: T700 carbon fiber
• FPV camera width: 19 mm / 20 mm
• Weight: approx. 127 g (with printed parts)
• Color: black / yellow
• Frame dimensions: 195 × 155 × 33 mm
• Wheelbase: 183 mm
• Stack mounting: 20 × 20 mm (M3) / 30.5 × 30.5 mm (M3)
• Stack height: 22 mm
• VTX mounting: 20 × 20 mm (M2) / 25.5 × 25.5 mm (M2)
• Motor mounting: 12 × 12 mm (φ2 mm) / 16 × 16 mm (φ3 mm)

In the box:

• 1 × Volador VD4 O4 Pro frame kit
