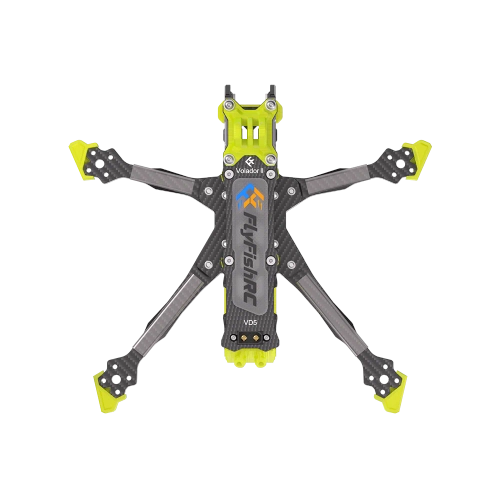

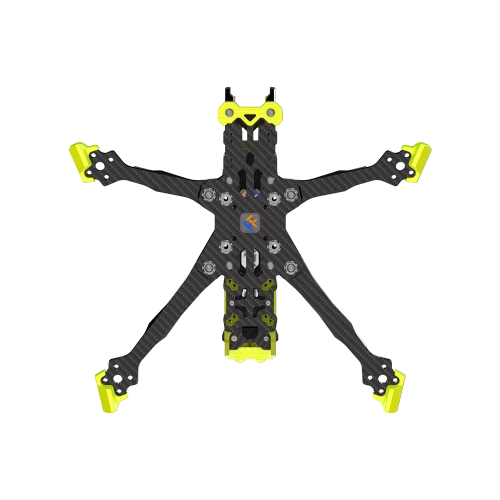

FlyFish RC Volador Ⅱ VD5 O4 Deadcat FPV LR T700 Frame Kit - Crystal yellow

FlyFishRC Volador II VD5 O4 Pro Deadcat FPV LR Freestyle T700 Frame (Yellow)

The FlyFishRC Volador II VD5 O4 Pro Deadcat is a 5-inch FPV frame built for pilots who want a clean, reliable, and great-looking setup for long-range and freestyle flying. The popular Deadcat geometry keeps propellers out of view, making it a great choice for smoother, cleaner footage, while the compact structure helps reduce unwanted frame resonance.

Designed with both performance and convenience in mind, the Volador II offers broad compatibility with analog and digital FPV systems. Its independently removable arms, premium TPU parts, and thoughtfully engineered layout make the build process easier, tidier, and more enjoyable. If you care about neat wiring and a polished final build, this frame delivers one of the cleanest setups in its class.

The frame also features a specially designed silicone camera damping insert for the DJI O4 Air Unit, helping reduce jello in DVR footage while remaining compatible with 19 mm / 20 mm cameras. Combined with CNC aluminum camera side plates and high-grade T700 carbon fiber, this frame is ready for demanding hobby use.

Another smart upgrade is the redesigned battery pad with enhanced anti-slip grip and stronger adhesive. The rear integrated XT60 mount helps protect the power lead from prop strikes during crashes and makes one-handed battery connection much easier. Add in pre-applied threadlocker on the screws and a full set of accessories for analog or HD builds, and you have a frame that is practical, durable, and built with real FPV pilots in mind.

Key Features

• Deadcat layout keeps props out of the camera view
• Premium T700 carbon fiber for strength, durability, and a clean finish
• Compact low-resonance design for improved flight feel and cleaner footage
• Compatible with analog and digital FPV systems
• Silicone damping insert for DJI O4 Air Unit helps reduce jello in DVR recordings
• Supports 19 mm / 20 mm FPV cameras
• CNC aluminum camera plates for added camera protection
• Integrated rear XT60 mount for safer and cleaner battery wiring
• High-quality TPU components for a more integrated and durable build
• Improved anti-slip battery pad with stronger adhesive
• Motor wire protection tubes included
• All accessories included for analog and HD builds
• 12.9-grade screws with pre-applied threadlocker for extra reliability
• Wide electronics compatibility for flexible component selection

What’s New in V2

• Noticeably lighter frame design
• New CNC side camera plates optimized for the DJI O4 Air Unit
• Improved battery pad with better grip
• Added keystone element to reduce arm vibration
• Added washers for the bottom screws
• Added motor wire protection tubes
• Flush-mounted top plate screws to help protect the battery in crashes
• New TPU arm guards are lighter and easier to remove
• All models include two TPU antenna mount options: with or without GPS mount
• Updated bottom and middle plate thickness to 2.5 mm
• Revised arm-to-clamp plate connection for improved stress distribution
• Symmetrical XT60 cutout in the top plate for installation in either direction

VD5 Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Propeller size: 5 to 5.1 inch
• Material: T700 carbon fiber plates
• FPV camera width: 19 mm / 20 mm
• Weight: 186.4 g (with TPU parts)
• Color: Black / Yellow
• Overall dimensions: 190 mm × 136 mm
• Wheelbase: 225 mm
• Stack mounting: 20 × 20 mm / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• Motor mounting: 16 × 16 mm (φ3 mm)

In the Box

• 1 × Volador II VD5 frame kit
