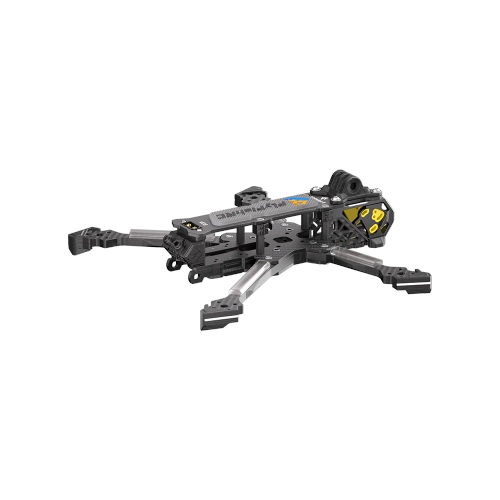

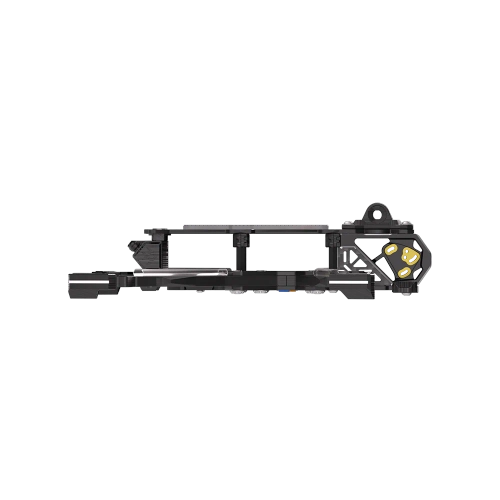

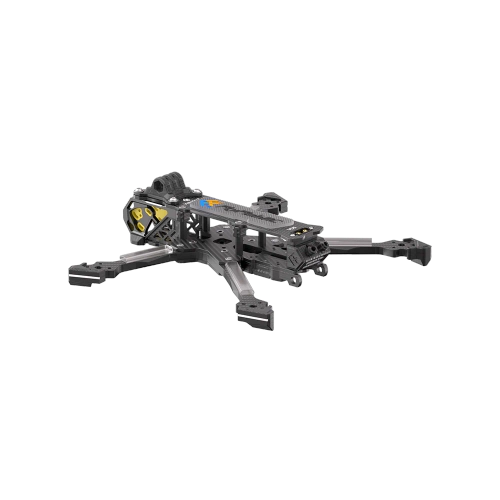

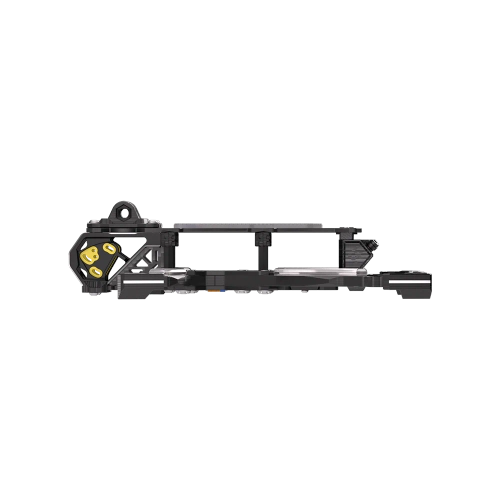

FlyFish RC Volador Ⅱ VD5 O4 Deadcat FPV LR T700 Frame Kit - Black

FlyFishRC Volador II VD5 O4 Pro Deadcat FPV LR Freestyle T700 Frame (Black)

The FlyFishRC Volador II VD5 O4 Pro Deadcat is a 5-inch FPV frame designed for pilots who want a clean build, broad electronics compatibility, and a layout ready for both long-range and freestyle flying. The popular Deadcat geometry keeps propellers out of view, making it a great choice for cleaner footage, while the compact structure helps reduce resonance and improve overall flight feel.

Built from premium T700 carbon fiber and high-strength CNC aluminum components, the Volador II VD5 combines durability, smart engineering, and a very polished look. Carefully designed TPU parts make installation neater and more integrated, so the final build looks as good as it performs.

Key Features

• Deadcat frame layout for prop-free camera view
• Premium T700 carbon fiber with smooth finish and evenly chamfered edges
• Compact low-resonance design for cleaner performance
• Compatible with analog and digital FPV systems
• Optimized for DJI O4 Air Unit with silicone camera damping insert
• Supports 19 mm / 20 mm FPV cameras
• Integrated rear XT60 mount for safer power lead routing and easy one-hand battery connection
• Independent removable arms for easier maintenance and repairs
• High-quality TPU parts for improved protection, fit, and cable management
• Anti-slip battery pad with stronger adhesive for better battery grip
• Motor wire protection tubes included
• 12.9-grade screws with pre-applied threadlocker for improved reliability

Why Choose the Volador II VD5?

The Volador II series was designed to make building easier, cleaner, and more enjoyable. This frame includes the accessories needed for both analog and HD builds, and its tight, well-thought-out structure helps minimize frame resonance. If you care about tidy wiring, smart component placement, and a premium finish, this is one of the cleanest FPV frame platforms available in its class.

A dedicated silicone damping insert for the camera plate was developed specifically for the DJI O4 Air Unit to help reduce jello in DVR footage. At the same time, the frame remains compatible with standard 19 mm and 20 mm cameras, giving builders more flexibility.

The updated battery pad with added mesh texture offers even better anti-slip performance, while the rear-mounted XT60 solution helps protect power wires from prop strikes during crashes. Small details like these make a real difference in day-to-day use and durability.

V2 Highlights

• High-end T700 carbon fiber construction
• Compact structure designed to reduce resonance
• New CNC aluminum camera side plates for better camera protection
• Silicone dampers for DJI O4 Air Unit to reduce jello
• Integrated XT60 mount for better safety and reliability
• Premium TPU components
• Improved anti-slip battery pads
• New motor wire protection tubes
• 19/20 mm camera compatibility
• Accessories included for analog and HD builds
• 12.9-grade screws with pre-applied threadlocker
• High electronics compatibility

Main Differences: V1 vs V2

• Noticeably lighter frame design
• New side CNC plates are lighter and better matched to the DJI O4 Air Unit
• Updated battery pad provides better grip
• Added keystone structure to reduce arm vibration
• Added washers under the bottom screws
• Added motor wire protection tubes
• Top plate screws are now flush-mounted to help protect the battery in crashes
• New TPU arm guards are lighter and easier to remove
• All models include two TPU antenna mount options, with or without GPS mount
• Updated middle and bottom plate thickness to 2.5 mm
• Reworked arm-to-clamp plate connection for better stress distribution
• Symmetrical XT60 cutout in the top plate allows installation in either direction

Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Prop size: 5 to 5.1 inch
• Material: T700 carbon fiber plates
• FPV camera width: 19 mm / 20 mm
• Weight: 186.4 g (with TPU parts)
• Color: Black / Yellow
• Overall dimensions: 190 × 136 mm
• Wheelbase: 225 mm
• Stack mounting: 20 × 20 mm / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• Motor mounting: 16 × 16 mm (φ3 mm)

In the Box

• 1 × Volador II VD5 frame kit
