Specification DJI Mic Mini 2S (2 TX + 1 RX + charging case)
Brand
DJI
Symbol
CP.RN.00000538.01
Producer code
6937224141018
Warranty
24 months
Brand
DJI

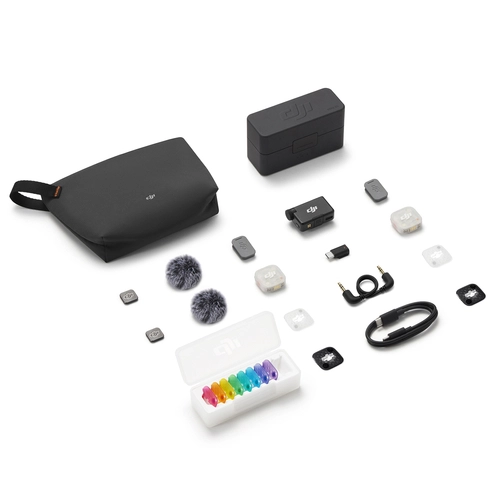

Set composition
Nadajnik DJI Mic Mini 2S x 2
Magnetyczny klips x 2
Magnetyczna osłona (biała) x 2
Magnetyczna osłona (czarna) x 2
Osłona przeciwwietrzna (czarna/szara) x 2
Zestaw kolorowych magnetycznych osłon do DJI Mic Mini 2S x 1
Magnes x 2
Odbiornik DJI Mic Mini 2S x 1
Adapter do smartfona (USB-C) x 1
Kabel audio do kamery (3,5 mm TRS) x 1
Etui ładujące DJI Mic Mini 2S x 1
Kabel do ładowania USB-C x 1
Etui transportowe x 1

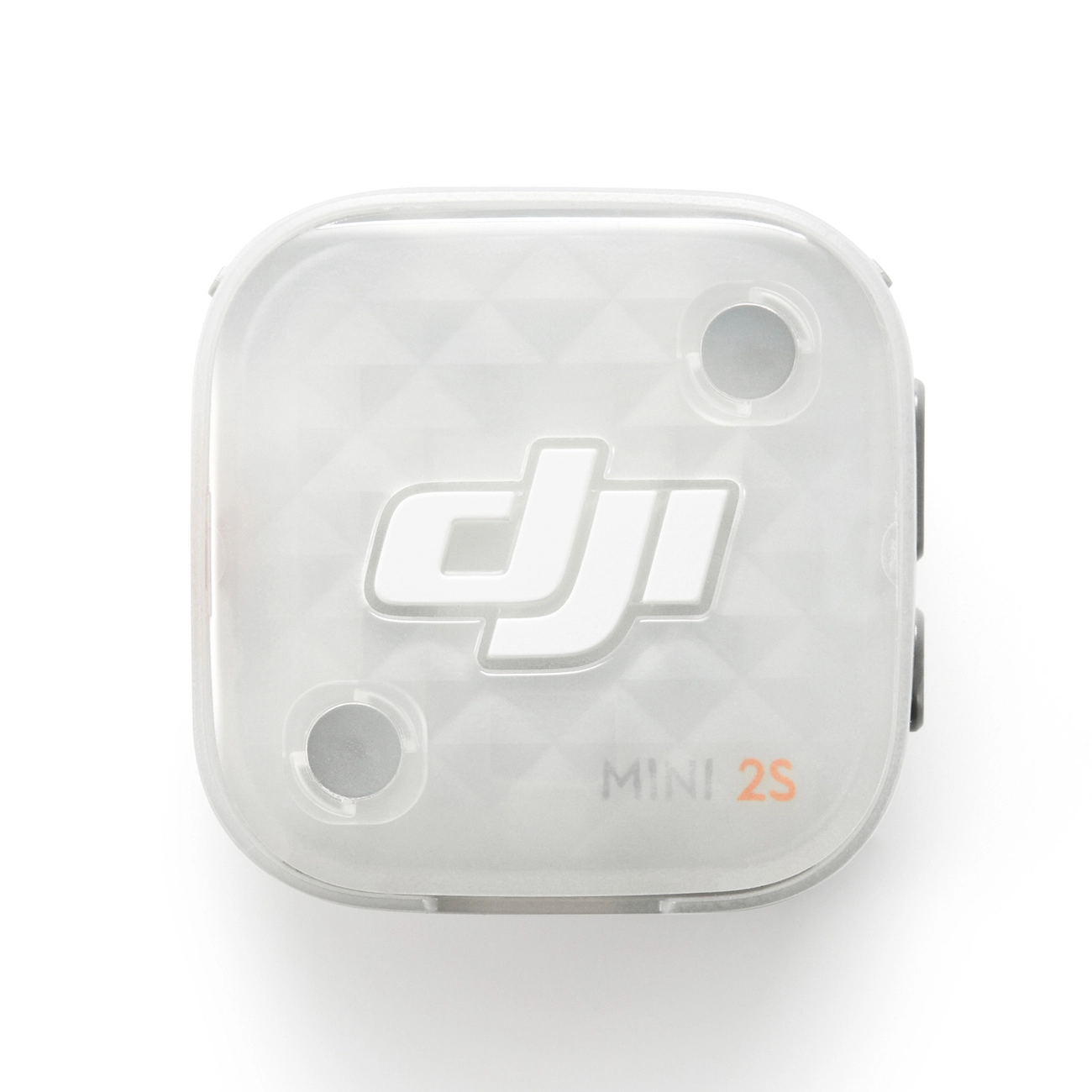

Nadajnik DJI Mic Mini 2S
Model
DMMT03
Dimensions
28,58×28,04×13,52 mm (dł.×szer.×wys.)
Weight
Ok. 12 g (z magnetyczną osłoną, bez magnetycznego klipsa i magnesu)
Wireless mode
GFSK 1 Mbps and 2 Mbps
EIRP
< 16 dBm
Wireless mode operating frequency
2,400-2,4835 GHz
Bluetooth protocol
Bluetooth 6.0
Bluetooth operating frequency
2,400-2,4835 GHz
Bluetooth transmitter power (EIRP)
< 16 dBm
Battery type
Li-ion
Battery capacity
124 mAh
Battery energy
0,484 Wh
Battery voltage
3,91 V
Charging specifications
Maks. 5 V
Charging temperature
From 5°C to 45°C
Operating temperature
From -10°C to 45°C
Charging time
Ok. 70 min
Working time
Ok. 11 h
Odbiornik DJI Mic Mini 2S
Receiver model
DMMR03
Dimensions of the receiver
46.50 × 29.61 × 19.32 mm (D×S×W)
Weight of the receiver
Ok. 19 g (z osłoną interfejsu)
EIRP of the receiver
< 16 dBm
Wireless mode of the receiver
GFSK 2 Mbps
Receiver operating frequency
2,400-2,4835 GHz
Bluetooth protocol of the receiver
Bluetooth 6.0
Bluetooth transmitter power (EIRP) of the receiver
< 16 dBm
Bluetooth working frequency of the receiver
2,400-2,4835 GHz
Receiver battery type
Li-ion
Receiver battery capacity
185 mAh
Receiver battery energy
0,723 Wh
Receiver battery voltage
3,91 V
Receiver charging specifications
Maks. 5 V
Receiver charging temperature
From 5°C to 45°C
Operating temperature of the receiver
From -10°C to 45°C
Receiver charging time
Ok. 70 min
Receiver operating time
Ok. 10 h
Etui ładujące DJI Mic Mini 2S
Case model
DMMC03
Dimensions of the case
106,30×42,50×59,20 mm (dł.×szer.×wys.)
Case weight
Ok. 160 g (tylko etui ładujące)
Case battery type
Li-ion
Battery capacity of the case
1950 mAh
Battery energy of the case
7.55 Wh
Case battery voltage
3,87 V
Specifications for charging case
Maks. 5 V, 1.5-2 A
Charging temperature of the case
5°C to 40°C
Operating temperature of the case
From 5°C to 45°C
Charging time of the case
Ok. 2 hours
Charging cycles for TX and RX
W pełni naładowane etui ładujące może całkowicie naładować dwa nadajniki i jeden odbiornik jednocześnie ok. 3,2 raza
General
Directionality
Omnidirectional
Frequency response
Without Low Cut: 20 Hz - 20 kHz
With Low Cut: 100 Hz - 20 kHz
Maks. sound pressure level (SPL)
126 dB SPL przy 1% THD
130 dB SPL przy 10% THD
Equivalent noise
22 dBA
Max. transmission range
400 m: odbiornik DJI Mic Mini 2S podłączony do nadajników DJI Mic Mini 2S / Mic Mini 2 / Mic Mini.
300 m: mobilny odbiornik z serii DJI Mic podłączony do nadajników DJI Mic Mini 2S / Mic Mini 2 / Mic Mini (tryb Green Light).
200 m: mobilny odbiornik z serii DJI Mic podłączony jednocześnie do jednego nadajnika DJI Mic Mini 2S / Mic Mini 2 / Mic Mini i jednego nadajnika DJI Mic 3 / Mic 2 (tryb Blue Light).
