BetaFPV Micro RFTX Cooling Fan

BetaFPV Micro RFTX Cooling Fan

Keep your BetaFPV Micro RF TX running cooler and more reliably with this dedicated cooling fan. Designed for hobby-grade RC and ExpressLRS setups, this compact fan helps reduce heat buildup during everyday use and especially during higher RF power output. If you're putting together your own DIY TX module, this is a smart upgrade for better thermal performance and peace of mind.

The BETAFPV Micro RF TX module is based on the ExpressLRS open-source RC link system, known for its excellent combination of speed, low latency, and long range. To help the module perform at its best, proper cooling matters—and this fan is built to do exactly that.

Key Features

• Dedicated cooling fan for the BetaFPV ELRS Micro TX module.
• Helps dissipate heat effectively and supports more stable operation during regular use.
• Especially useful for higher RF power settings, where thermal management becomes more important.
• Compact and lightweight design that fits DIY hobby builds perfectly.

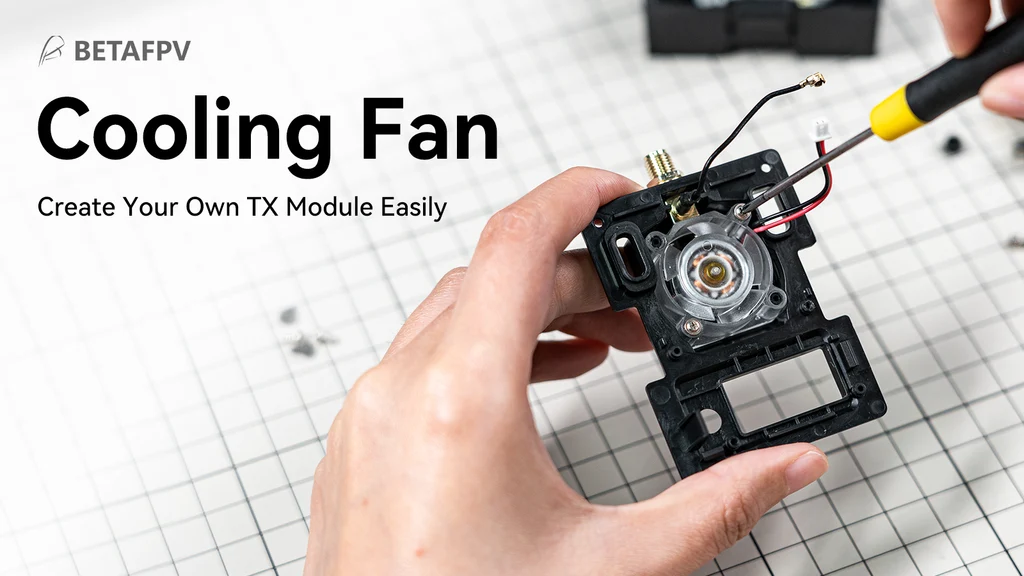

• A great choice for pilots building their own custom Micro TX module.

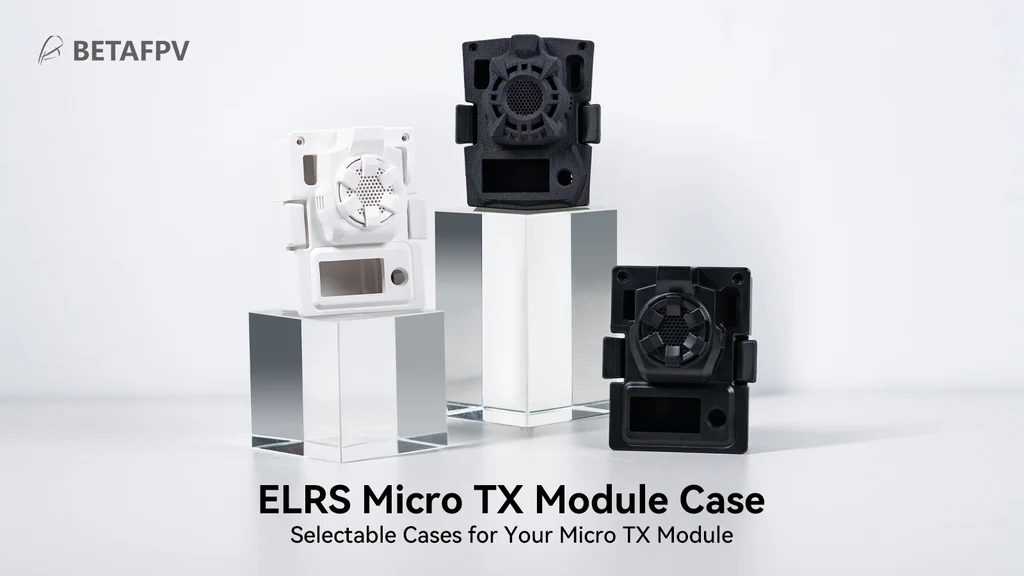

• Please note: the module case and cooling fan are sold separately.

Specifications

• Product: ELRS Micro TX Module Cooling Fan
• Cooling fan weight: 6 g
• Cooling fan size: 25.5 x 25.5 x 10.7 mm

Cooling Performance

According to temperature tests, at a maximum RF output of 500 mW for 30 minutes, the RF chip temperature can be kept below 50°C, while the case stays around 30°C. This shows the module can operate properly in normal day-to-day use without major temperature concerns when proper cooling is in place.

For the black version running at up to 1 W, the temperature can be kept below 65°C with the help of a heatsink. Test results also show that the RGB LED temperature is around 10°C higher for both the 500 mW and 1 W RF modules, which is why using a cooling fan is highly recommended in these setups.

Tests also showed that the temperature difference on the JR case depends on the fan airflow direction, although this does not affect the electronic components inside the module.

FAQ

An STL file for the 3D case is available for users who want to modify or customize their case.

STL file link: https://support.betafpv.com/hc/en-us/articles/4409821458841

Package Includes

• 1 x Cooling Fan
