14,80 €
BETAFPV Pavo Femto frame with DJI O4 bracket – transparent gray

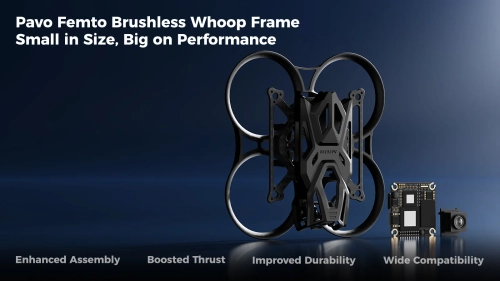

Compact reinforced Pavo Femto frame
The BETAFPV Pavo Femto Whoop frame has a 75 mm wheelbase, a 2 mm carbon-fiber plate and a PA12 propeller duct. Reinforced duct-to-plate joints help create a rigid lightweight structure, while the optimized aerodynamic profile is stated to improve thrust by about 4%.

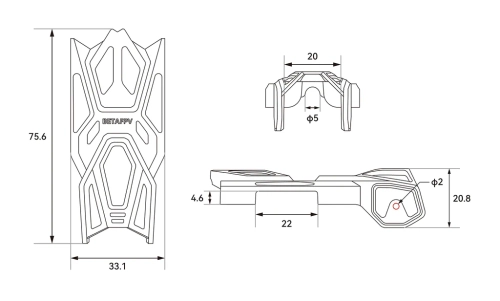

DJI O4 mount and complete hardware
The set includes an O4 Air Unit bracket with protective structure, camera mount, damping components, antenna and mounting screws. The bracket itself can also be used with Pavo Pico and Pavo20, but this does not make the entire frame interchangeable. Video module, motors, propellers and flight controller are not included.
Technical specifications
| Manufacturer | BETAFPV |
| Model | Pavo Femto Brushless Whoop Frame |
| Product type | FPV frame with HD VTX bracket |
| Color | Transparent gray |
| Wheelbase | 75 mm |
| Whoop duct material | PA12 |
| Structural plate material | Carbon fiber |
| Carbon-fiber plate thickness | 2 mm |
| Whoop duct weight | 8,64 g |
| Frame weight | 22,16 g |
| Flight controller mounting pattern | 25,5 × 25,5 mm |
| Motor mounting pattern | 3 × M1.4, Ø6.6 mm spacing |
| VTX bracket compatibility | DJI O4 Air Unit |
| O4 Air Unit bracket material | PA |
| O4 Air Unit bracket weight | 6,05 g |
| Camera mounting spacing | 20 mm |
| O4 Air Unit bracket compatibility | Pavo Femto, Pavo Pico, Pavo20 |
Package contents
- Carbon-fiber Whoop frame plate – 1 pc.
- Whoop propeller duct – 1 pc.
- DJI O4 Air Unit bracket cover – 1 pc.
- DJI O4 Air Unit bracket bottom plate – 1 pc.
- DJI O4 camera mount – 1 pc.
- Damped DJI O4 camera mount – 1 pc.
- 5.8 GHz VTX antenna – 1 pc.
- Flight controller rubber dampers, 8 mm – 6 pcs.
- O4 Air Unit bracket rubber dampers, 6.6 mm – 6 pcs.
- O4 Air Unit damping pads – 6 pcs.
- Rubber O4 camera dampers – 6 pcs.
- M2 × 10 mm socket-head cap screws – 6 pcs.
- M2 × 14 mm countersunk socket screws – 4 pcs.
- M2 × 4 mm countersunk socket screws – 4 pcs.
- M1.4 × 5 mm self-tapping screws – 6 pcs.
