RadioMaster TX12 MKII CC2500 EdgeTX Radio Controller

RadioMaster TX12 MKII CC2500 EdgeTX equipment

Many years ago, RadioMaster set out to create the best compact radio in its class. The TX12 has become the product of choice for pilots looking for a high-performance, reliable open source radio with unlimited upgradeability in a small package.

Working with the R/C community and open source partners, RadioMaster is proud to present the TX12 MKII, a class-leading compact radio with updated ergonomics and software.

Characteristics

• Mainboard design updated from STM32F207 to STM32F407
• Improved USB-C QC 3.0 charging
• Precise Hall effect gimbals as standard
• EdgeTX operating system pre-installed
• Updated back cover with comfortable handles
• Improved S1/S2 slider grip
• SD card included
• Provide M1 and M2 modes

Specification

• Article: Radio TX12 Mark II

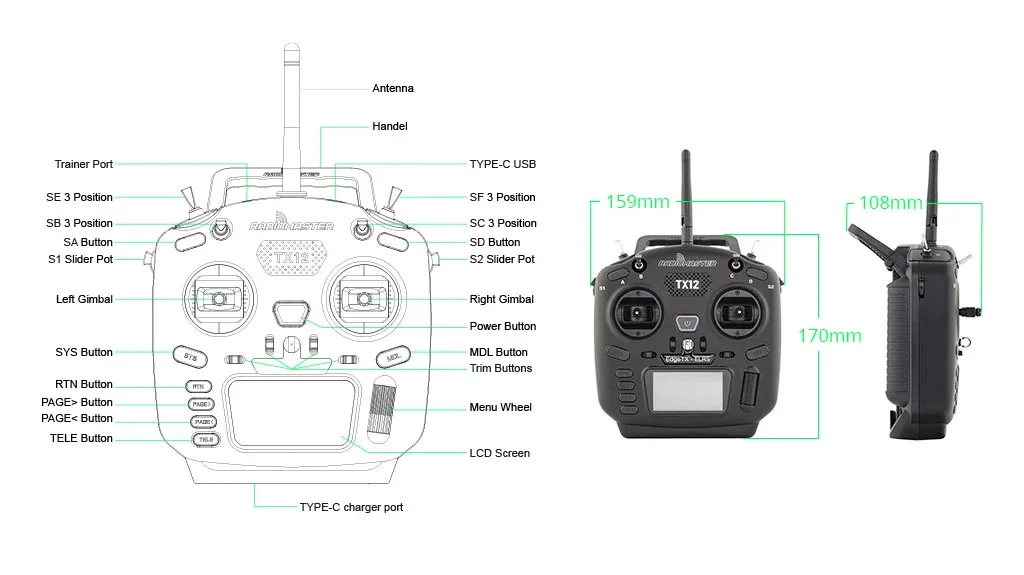

• Size: 170*159*108mm
• Weight: 363g
• Frequency: 2.400GHZ-2.480GHZ
• RF chip: ExpressLRS (ELRS) / CC2500
• Operating current: 320 mA at 8.4 V (ELRS) / 180 mA at 8.4 V (CC2500)
• Voltage range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF Module) / MPM (RF Module)
• Channels: up to 16 (depending on the receiver)
• Display: 128*64 monochrome LCD display
• Gimbal: Highly precise indoor gimbals
• External module: compatible with JR/FrSKY/Crossfire
• Update method: USB/SD card and EdgeTX Buddy online or EdgeTX Companion PC software
• USB charging: QC3 USB-C
• SD card: included

EdgeTX operating system

RadioMaster TX12 MKII with pre-installed EdgeTX software has cutting-edge software that is constantly developing and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring that the concept of open standards continues.

STM32F407 MCU updated

We upgraded the main processor from STM32F207 to STM32F407.

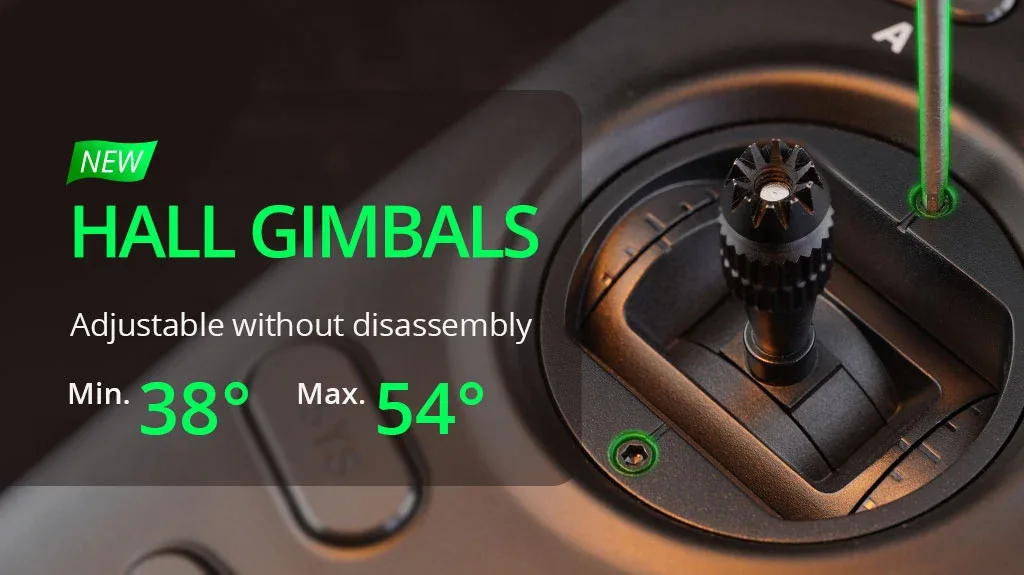

New indoor gimbals

For Hall Gimbals, the same chipset as AG01, the optimized Hall sensor circuit improves center point positioning and temperature stability.

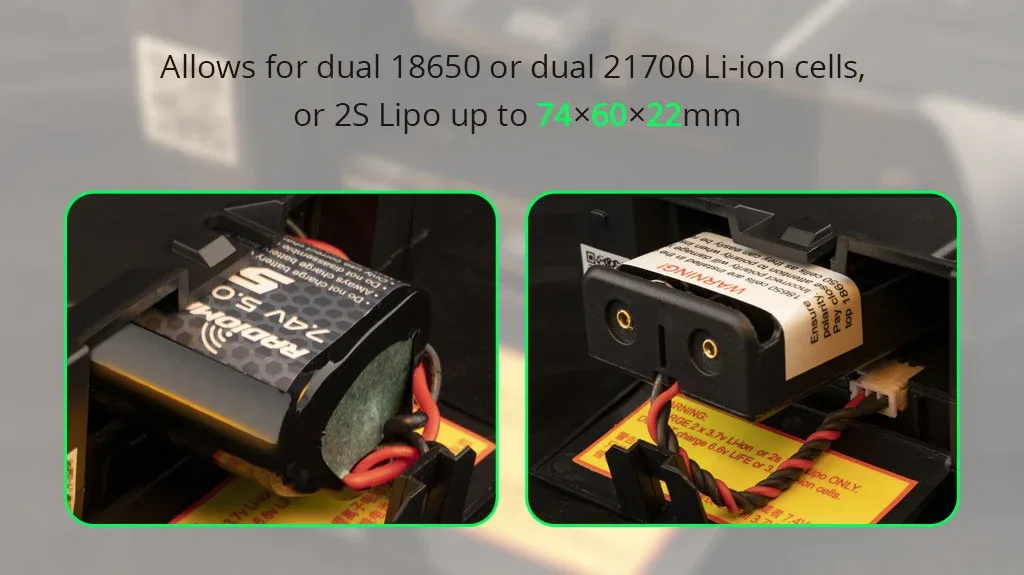

Large battery compartment

Enables the use of double lithium-ion cells 18650 or 21700 or 2S Lipo with dimensions up to 74 × 60 × 22 mm.

Radio review

Parcel includes

• 1 * TX12 Mark II Radio Controller
• 1 * Antenna
• 1 * USB-C cable
• 1 * Quick Start Guide
• 1 * sticker
