RadioMaster Ranger 2.4GHZ ExpressLRS RF Module (Combo Version)

RadioMaster Ranger 2.4GHZ ExpressLRS RF Module (Combo Version)

RadioMaster Ranger is the pinnacle of the ExpressLRS module design. Built not only to look great, but also to last thanks to a durable CNC-machined aluminum housing that supports a high-performance cooling system as a heatsink. The Ranger is up to any task and provides all the power and functionality you need.

Equipped with an OLED display, directional menu key and two assignable shortcut keys, Ranger can be customized and personalized on the fly to suit your needs.

The Ranger includes a T-antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. The included micromodule and nanomodule adapter ensures the Ranger is compatible with most radios currently on the market. Also included is a cable for use with CRSF-enabled Futaba radios.

Characteristics

• OLED display
• Durable CNC housing
• Built-in accelerometer
• Packet rate up to F-1000 Hz
• Wi-Fi and Bluetooth support
• Highly efficient cooling system
• 5-way navigation key and customizable shortcut buttons
• Micro and Nano adapters included
• Moxon and T antenna included
• CRSF cable for compatible Futaba radios included

Specification

• Article: ELRS Ranger 2.4 GHz Module
• Regulatory domain: ISM2400
• MCU: ESP32 (main), ESP8285
• RF chip: SX1281IMLTRT
• Frequency range: 2400MHz - 2480MHz
• Maximum packet rate: 500 Hz/F-1000 Hz (F-1000 Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25 Hz
• RF output power: default 100mW
• Module bay adapters: standard 5-pin JR socket and standard 8-pin Nano socket
• Futaba CRSF socket cable: included
• OLED screen: 64x128px
• Wi-Fi Support: Yes
• Bluetooth support: Yes
• 3-axis accelerometer: Yes (STK8BA58 MEMS accelerometer)
• Built-in RGB light strip
• XT30 Supply voltage: DC 6V - 16.8V
• Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
• Dimension: 95*51*25mm (without antenna)

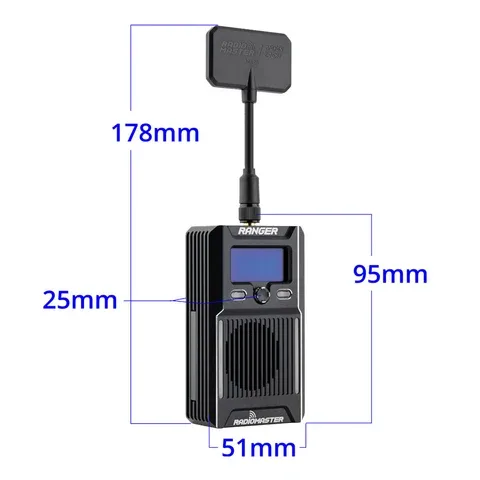

Size

Parcel includes

• 1 * RANGER Module
• 1 * Futaba CRSF Jack Cable
• 1 * JR adapter
• 1 * Nano adapter
• 1 * T antenna
• 1 * Moxon Antenna
• 1 * Hex Socket Screwdriver
• 3*M2*5 screws
• 1*Assembly Instruction
• 2 * RP1 ExpressLRS 2.4GHz Nano Receiver
• 1 * RP2 ExpressLRS 2.4GHz Nano Receiver
