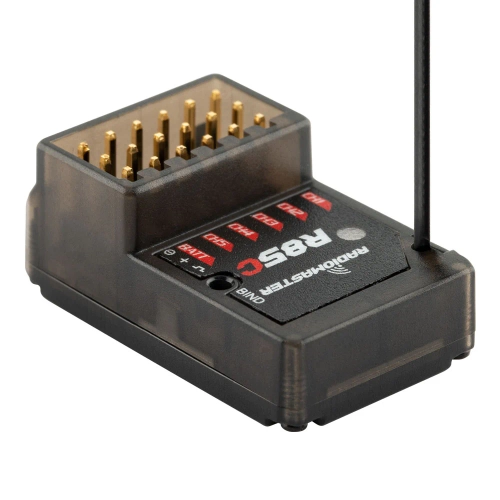

RadioMaster R85C D8/D16/SFHSS receiver (external antenna)

RadioMaster R85C D8/D16/SFHSS receiver

The R85C receiver is compatible with Frsky D8/D16 and Futaba SFHSS and offers a range suitable for many RC modellers. The built-in TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy of frequency control, compensating for temperature changes.

* Only suitable for RadioMaster multi-protocol radios with protocol tuning capabilities. Not compatible with FrSky radios.

Characteristics

• Compatible with Frsky D8/D16 and Futaba SFHSS
• 2.4G antenna with high sensitivity
• Built-in TCXO (temperature compensated crystal oscillator) ensures stable and accurate operation in any environment

Technical data

• Item: R85C receiver
• Power supply: DC 4.5 - 8.4V
• Frequency range: 2400-2483.5MHz
• Support protocol: D8/D16/SFHSS
• Output Channel: 5CH PWM
• Antenna type: 2.4G high sensitivity antenna
• Telemetry power: 100mW / 20dBm
• Weight: 5.55 grams
• Dimensions: 31.0*18.5*13.0mm

TCXO

TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy of frequency control by compensating for temperature changes. This ensures consistent and reliable signal reception, even in extreme temperatures. It also reduces frequency drift over time, ensuring long-term frequency stability and preventing signal degradation.
