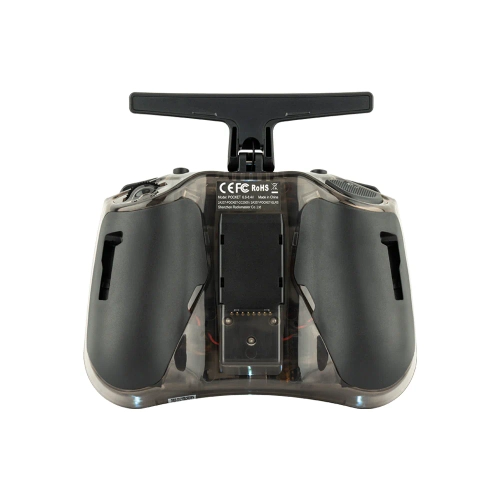

Name: RadioMaster Pocket ELRS Charcoal Radio Controller
Brand: RadioMaster
Price: 66.50 EUR
Availability: OutOfStock

RadioMaster Pocket ELRS Charcoal equipment

RadioMaster Pocket is a small, lightweight radio with high power. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come with EdgeTX software pre-installed. The Pocket also comes with removable rod ends and a collapsible antenna for easy transportation and storage. It is compatible with 18650 batteries, which provide long runtime for hours of fun.

RadioMaster Pocket is an excellent choice for pilots who are looking for a small, lightweight radio with all the advanced features you expect.

Characteristics

Available in ExpressLRS Backpack and MPM CC2500 versions
Pre-installed EdgeTX software
18650 batteries - all the power you need for hours of fun (batteries not included)
Portable and lightweight design with removable rod ends and foldable antenna
It has Hall effect gimbals as standard, ensuring smooth centering and precise response
Built-in LEDs help visualize switch positions (SA and SD)
Backlit LCD screen offering the perfect balance of size and functionality
Trim buttons for easy trimming of channels
External module pocket compatible with RadioMaster Nano and TBS Nano Crossfire/Nano Tracer modules
2 stylish graphite colors and a clear version, plus optional blue, pink, green and orange housing colors to match your style

Technical data

Article: RadioMaster Pocket
Physical dimensions: 156.6 * 65.1 * 125.3 mm (folded size) / 156.6 * 73.1 * 154.8 mm (unfolded size)
Weight: 288 grams
Operating frequency: 2.400 GHz-2.480 GHz
Internal RF options: multi-protocol CC2500/ELRS 2.4 GHz
Supported protocols: depends on the module
Operating voltage: 6.6-8.4V DC
Operating System: EdgeTX
Control channels: maximum 16 (depending on receiver)
Display: monochrome LCD 128*64
Battery: 2pcs 18650 batteries (not included)
Charging: Built-in USB-C QC3 charging
Firmware updateable: via USB or included SD card
Gimbal: Hall effect
Modular bay: Nano size (compatible with RadioMaster Nano, TBS Nano Crossfire / Nano Tracer modules)

Available in ExpressLRS and CC2500 versions

The CC2500 (standard) version supports all CC2500 protocols
ELRS (standard) comes pre-installed with ExpressLRS ISM FW (maximum power depends on hardware)

LBT version information

CC2500 LBT (Europe) version is limited to LBT FrSKY X/X2 LBT and HoTT LBT compatible protocols
ELRS LBT (Europe) version comes pre-installed with ExpressLRS CE UE LBT FW domain (output power limited to 100mw)

Gimbal adjustment

And LR
For M1/M2 switching. Turn clockwise to disable self-centering (throttle). Rotate counterclockwise to enable self-centering (elevator).
BT
To adjust the tension of the throttle stick. Rotate clockwise to increase the tension on the stick. Rotate counterclockwise to reduce the tension on the stick.
C UP-DOWN
Rotate clockwise to increase vertical tension on the stick.
Rotate counterclockwise to reduce the tension on the stick.
D LEFT-RIGHT
Rotate clockwise to increase the horizontal tension on the stick.
Rotate counterclockwise to reduce the tension on the stick.

Adjusting the gimbal in a pocket radio

Dimensions

Pocket dimensions

Radio review

Pocket Radio Controller Review

Package includes

1 * RadioMaster Pocket
1 * custom cover
1 * USB-C cable
1 * Screen Protector
1 * sticker
4*low tension springs
1*Manual
