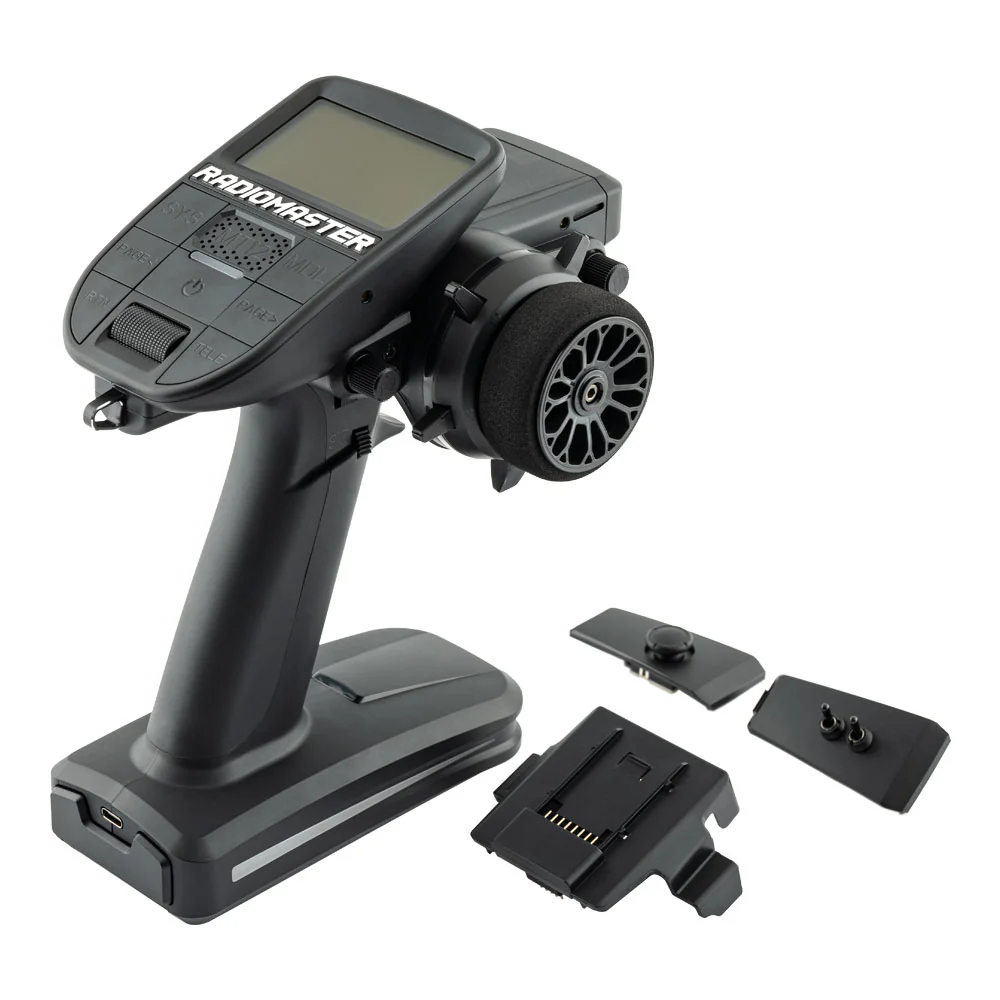

RadioMaster MT12 4in1 LBT RC Radio Controller Set + R85C Receiver

RadioMaster MT12 4in1 LBT RC Equipment Set + R85C Receiver

RadioMaster MT12 is a pioneering open source terrestrial radio and the first terrestrial radio officially supported by EdgeTX, ExpressLRS and multi-module design. Equipped with 10 physical inputs and the ability to support 16 or 32 channels in a 4-in-1 version, the MT12 is ready to work with a wide range of surface models, from cars and trucks to boats and more. With extensive customization options and a versatile operating system, MT12 stands out as a highly configurable terrestrial radio prepared to operate in virtually any scenario.

Characteristics

• Equipped with the powerful STM32F407VGT6 with 1MB Flash
• Pre-installed EdgeTX software
• QC3.0 fast charging supporting max. 2.0A
• Compact design with excellent ergonomics
• Oversized battery compartment – ​​2 x 18650 cells or 2s 7.4V 5000mAh battery (batteries not included)
• Standard Nano module compartment
• Standardized RadioMaster button layout
• Rotatable antenna
• Configurable primary switches or 4-way joystick included

MT12 specification

• Article: MT12 surface radio
• Physical dimensions: 177.8 * 118.4 * 207.8 mm
• Weight: 480 grams
• Operating frequency: 2.400 GHz-2.480 GHz
• RF internal options: 4-in-1 multiple protocols/2.4GHz ELRS
• Supported protocols: depends on the module
• Working current: 160mA for 4in1 / 320mA for ELRS
• Working voltage: DC 6.6-8.4V
• Operating System: EdgeTX
• Control channels: 16 as standard, expandable by 32 channels (only 4in1)
• Display: monochrome LCD 128*64
• Battery: 2 cells 18650 or 2s 7.4V 5000mAh battery (batteries not included)
• Charging: Built-in USB-C charging
• Firmware update method: via USB or SD card
• Wheel and trigger sensor: Hall effect
• Modular bay: Nano size (RadioMaster Ranger Nano module / RadioMaster RM 4-in-1 module / TBS Crossfire Nano module)

R85C specification (included with 4in1 version)

• Item: R85C receiver
• Power supply: DC 4.5 - 8.4V
• Frequency range: 2400-2483.5MHz
• Support protocol: D8/D16/SFHSS
• Output Channel: 5CH PWM
• Antenna type: 2.4G high sensitivity antenna
• Telemetry power: 100mw / 20dbm
• Weight: 5.7 grams
• Dimensions: 31.0*18.5*13.0mm

EdgeTX operating system

Pre-installed with EdgeTX, the MT12 features cutting-edge software to match its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop new features and optimize the user experience for surface models. We will continue to contribute and support projects like EdgeTX, ensuring that the concept of open standards continues.

Available with ExpressLRS and 4in1 versions

In addition to the popular internal 4-in-1 multi-function module, the MT12 is also available with an internal 2.4 GHz ExpressLRS (ELRS) module. Designed to provide reliable control over long distances, ultra-low latency and high refresh rates. ELRS is a revolutionary open source protocol that is taking the R/C industry by storm.

4in1 VERSION

One remote control for all your cars. The 4-in-1 internal RF system has protocols for many popular car brands and receivers.

Click here to view a list of supported protocols

Dimensions

Radio review

Instructional videos

To improve your experience with the MT12 Radio, we offer a series of instructional videos on how to use the MT12 Surface Radio.

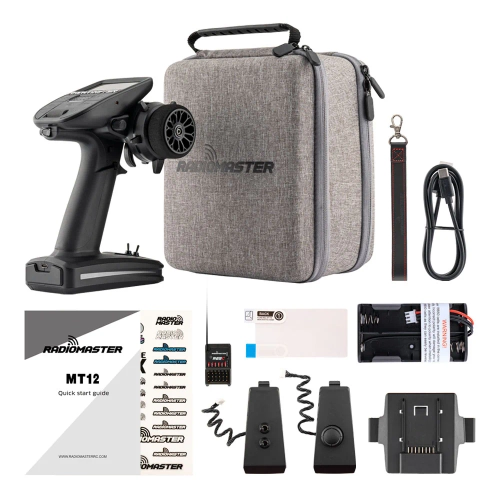

Parcel includes

• 1 * 4in1 version of MT12 surface radio
• 1 * R85C Receiver
• 1 * Dual Switch Expansion Module
• 1 * 4-way joystick extension module
• 1 * Nano adapter
• 1 * USB-C cable
• 1 * Leather Lanyard
• 1 * Custom RadioMaster Signature Case
• 1 * 18650 battery tray
• 1 * Screen Protector
• 1 * stickers
• 1*Manual
