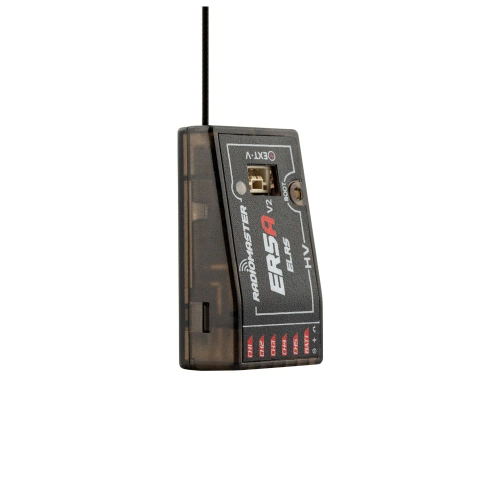

RadioMaster ER5A V2 2.4 GHz ELRS PWM receiver

RadioMaster ER5A V2 2.4 GHz ELRS PWM receiver

The ER5A V2 receiver is based on the high-performance, revolutionary ExpressLRS system, characterized by high reliability, very flexible configuration, ultra-fast response speed and very large reception range, providing a completely new user experience.

The ER5A V2 ELRS receiver can support up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. It is intended for aviation applications.

Characteristics

• Based on the revolutionary ExpressLRS system
• High performance, high reliability, flexible configuration, fast response and very long range
• Support for 5 PWM channels
• Automatically detects telemetry of external battery voltage or receiver battery voltage/ESC BEC
• Built-in TCXO (temperature compensated crystal oscillator) ensures stable and accurate operation in any environment
• Optimized, grounded PCB design
• Supports Wi-Fi updates and WEBUI configuration
• Compact size, easy to install. Perfect for aviation applications
• Compatible with all ExpressLRS 2.4 GHz modules and transmitters with built-in ExpressLRS 2.4 GHz

Specification

• Item: ER5A V2 2.4 GHz ELRS PWM Receiver
• Power supply: DC 4.5-8.4V
• Antenna type: High sensitivity antenna
• Wireless protocol: ELRS 3.3.0 pre-installed
• Channels: 5
• Telemetry voltage detection range: DC 4.0-35V
• RF Telemetry: Yes
• Telemetry power: 10mw
• Weight: 6.7 grams
• Size: 37.0*19.3*13.0mm
• Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4 GHz PWM RX

Size
