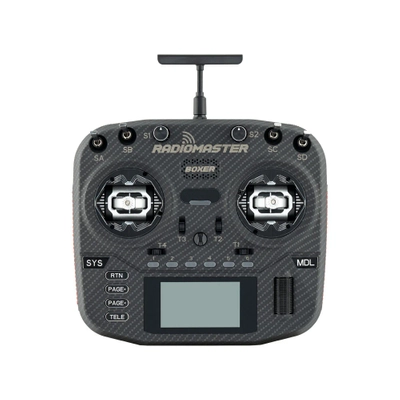

RadioMaster Boxer MAX ExpressLRS BLACK Radio Controller

RadioMaster Boxer MAX ExpressLRS BLACK equipment

Introducing the Boxer Max Radio - a high-performance remote control with a sleek carbon fiber design. Boxer Max comes standard with upgraded AG01 aluminum Hall effect gimbals and CNC buttons and rollers for high quality. The adjustable-length CNC metal foldable handle and upgraded leather handles provide a comfortable grip for long-term use. With all these features, the Boxer Max radio is the perfect choice for those looking for the highest performance, comfort and convenience.

Characteristics

• Optional 3 colors - black/red/gold
• Hall effect gimbal, aluminum CNC AG01
• Carbon fiber patterned casing
• CNC buttons and roller as standard
• CNC foldable metal stand with adjustable length
• Upgraded black leather handles
• Available with a built-in ExpressLRS backpack
• Equipped with powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Pre-installed EdgeTX software
• Internal ELRS module supporting 1000 Hz refresh rate
• Adjustable RF ELRS output
• Support QC3.0 MAX 2.0A fast charging
• Compact design with excellent ergonomics
• New low profile SE latching switch and SF momentary switch
• Oversized battery compartment - room for a 2S 6200 mAh pack, operating up to 20 hours (batteries not included)
• Standard JR module compartment
• Built-in cooling fan for internal module (ELRS version)
• Standardized RadioMaster button layout
• Versatile 6-position switch to access airplane mode
• Adjustable and removable T-shaped antenna
• Industry-first fabric handle for improved portability
• Interchangeable, ergonomic handles
• Redesigned SD card slot with new, improved, pre-loaded 512MB SD card
• Power sockets for external modules in the battery cover
• A RadioMaster carrying case and gimbal cover are included as standard to keep your radio safe on the move

Technical data

• Article: Radio BOXER Max
• Color: black/red/gold
• Size: 235*178*77mm
• Weight: 532.5 gram
• Frequency: 2.400 GHz-2.480 GHz
• Internal radio frequency: ELRS 2.4 GHz
• Supported protocols: depends on the module
• Cooling Fan: Built-in (ELRS version)
• Voltage range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ELRS (RF Module)
• Channels: Max. 16 channels (depending on receiver)
• Battery: 2-cell 7.4V lithium polymer / two 18650 3.7V lithium-ion cells (batteries not included)
• Display: 128*64 monochrome LCD display
• Gimbal: AG01 CNC indoor gimbal
• External module: compatible with JR / FrSKY / Crossfire
• Update method: USB/SD card and EdgeTX Companion PC software

EdgeTX operating system and ExpressLRS RF system installed

Pre-installed with EdgeTX and ExpressLRS, BOXER has cutting-edge software to match its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring that open standards concepts are carried into the future.

Package includes

• 1 * BOXER Max radio
• 1 * Carrying Case
• 1 * T antenna
• 1 * USB-C cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen key
• 2*M4*4 screws
• 4*low tension springs
• 1 * stickers
• 1*Manual
• 1 * 18650 cell basket (batteries are not included)
• 1 * RadioMaster Neck Strap
• 1 * Boxing Keychain
• 1 * Screen Protector
