RadioMaster AG01 CNC Hall Gimbal set BLUE
Available colors are purple, gold, blue, red and green. All colorful AG01 gimbals now come with Sticky360 gimbal tips pre-installed.
Key features
- Sicky360 gimbal stick tips - 360° Non-slip double ring geometry increases comfort and contact.
- Made of CNC machined aircraft aluminum.
- Non-contact Hall effect sensors for accurate control signals and precise centering.
- Quad precision bearings provide unrivaled stick feel.
- Upgraded package to better protect AG01 gimbals.
Specification
- Subject: AG01 CNC indoor gimbal sets
- Colors: red, blue, gold, green, purple
- Detection type: Hall
- Working voltage: DC 3.3V
- Linearity: real-time (no delays)
- Adjustable range of motion: 38°–54°
- Adjustable mode: Yes
- Adjustable Voltage: Yes
- Quadruple bearing: yes
- Temperature range: -20°C-85°C
- Size: 60*53*56mm
- Weight: 162 gram/set

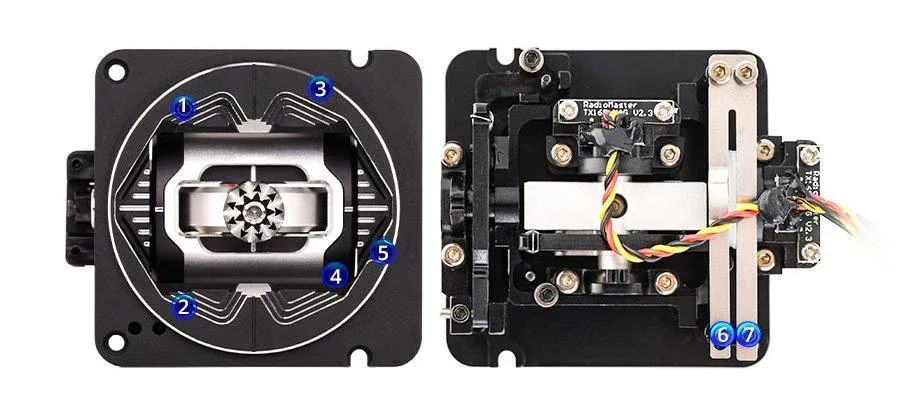

Externally adjustable
- ① Set the lower travel limit: Turn the screw clockwise to decrease the travel. Turn the screw counterclockwise to increase the stroke. Range of motion (38-54°)
- ② Set the upper travel limit: Turn the screw clockwise to decrease the travel. Turn the screw counterclockwise to increase the stroke. Range of motion (38-54°)
- ③ Spring tension up and down: Turn the screw
- clockwise to increase the spring tension up and down.
- Turn the screw counterclockwise to reduce the spring tension up and down.
- ④ Centering and Mode Adjustment: When the screw is turned clockwise to the lowest point, the gimbal will not be centered on its axis up and down when the stick is released. When the screw is turned counterclockwise to the highest point, the gimbal will center its axis up and down when the stick is released.
- ⑤ Left and right spring tension: Turn the screw clockwise to increase the tension of the left and right springs. Turn the screw counterclockwise to reduce the tension on the left and right springs.
- Throttle voltage adjustment: When there is no up and down voltage, the screw ⑥ adjusts the tension and the screw ⑦ adjusts the scale tension.

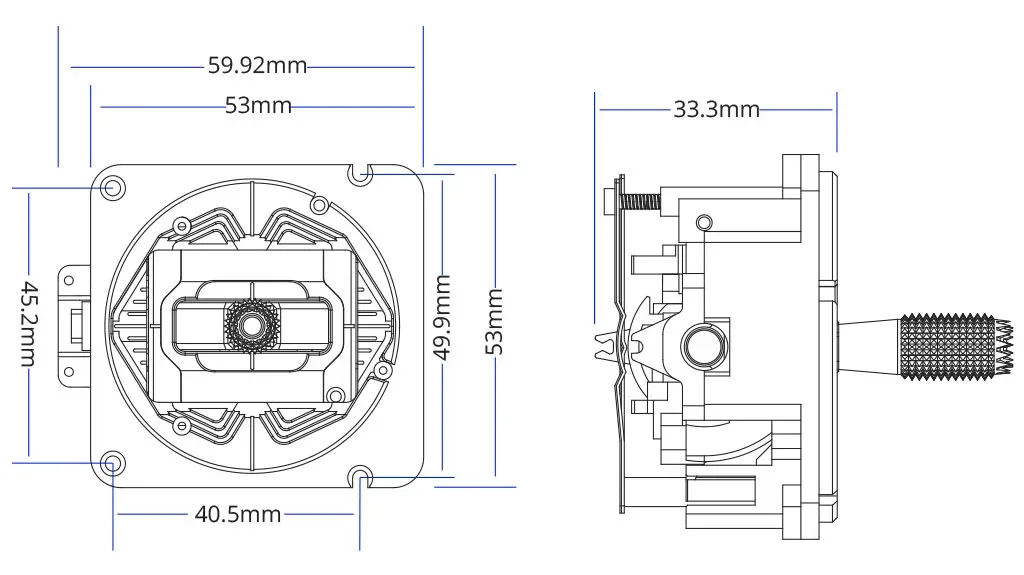

Size
Parcel includes
- 1 * AG01 CNC indoor gimbal (throttle)
- 1 * AG01 CNC indoor gimbal (centering)
- 2*set of softer TX16S tension springs
- 2 * hexagon socket screwdriver
- 1* and n manual
Specification RadioMaster AG01 CNC Hall Gimbal set BLUE
Brand
RadioMaster
Symbol
HP0157.AG01-SET-BLU
Producer code
5283659218995
Warranty
12 months
