Pigtail 2S Whoop BT2.0 (5pcs) BetaFPV

Pigtail 2S Whoop BT2.0 (5pcs) BetaFPV

This cable with dual BT2.0 connectors is designed for Type 2S Beta65XHD and Beta65X FPV drones. With the BT2.0 connector, it will solve the problem of voltage drop, and the discharging of the 1S lipo battery becomes more efficient. Pilots can enjoy longer flight times without the disruption of the low voltage warning.

Characteristics:

• Especially for 2S Whoop Beta65XHD and Beta65X FPV drones.
• Thanks to the lightweight and customized 22AWG wire, the drone will be lighter. The wire uses standard American 0.08mm*60 core. The diameter of the outer silicone layer is only 1.5mm, which is 0.2mm thinner than standard 22AWG wire.
• The BT2.0 connector has effectively reduced the internal resistance of the connector by upgrading the crimp contacts to a 1.0mm banana connector and increasing the cross-sectional area of ​​the 1.0mm banana connector.
• The BT2.0 connector supports 9A continuous current and 15A pulse, while the PH2.0 connector supports 4.5A continuous current. Provides you with a more perfect flight experience when you fly the 1S brushless drone.
• By using the BT2.0 connector, the problem of voltage drops can be solved, and the discharging of the 1S lipo battery becomes more efficient. Pilots can enjoy longer flight times without a low voltage warning.

Technical data:

• Item: 2S Whoop Cable Pigtail (BT 2.0)
• Connector: BT2.0
• Cable: 22AWG
• Length: 55mm (without plug)
• Weight: 1.5g
• Note: Blue represents the positive pole (+); White represents the negative pole (-)

BT2.0 connector

The BT2.0 connector, designed exclusively by BETAFPV, broke the bottleneck of the PH2.0 connector. The BT2.0 connector effectively reduces the internal resistance of the connector, allowing it to carry more current, which means it supports 9A continuous current (15A burst mode), providing more power and longer flight time on 1S brushless drones, while the PH2 .0 only supports 4.5A. Enjoy longer flight time without low voltage warning by solving the problem of voltage drops.

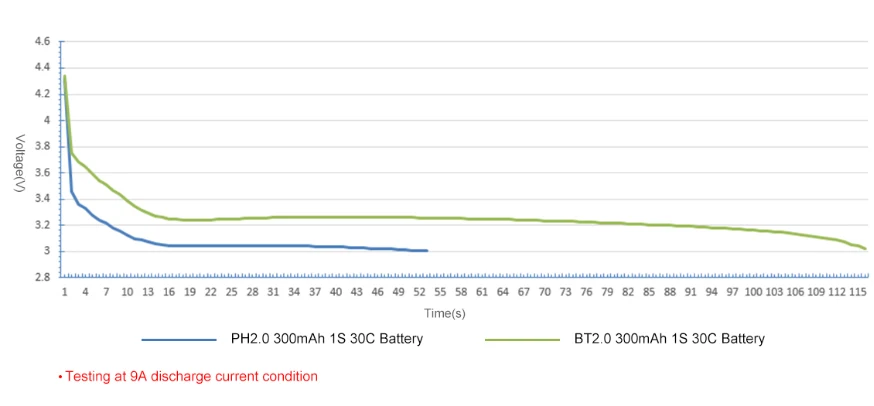

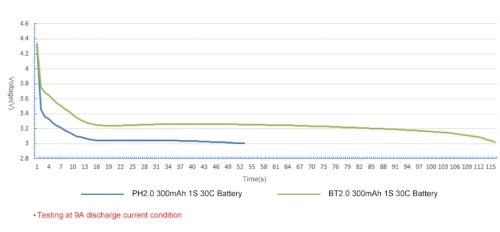

Below is a comparison chart of the BT2.0 connector and the PH2.0 connector (solid pin version) on the BETAFPV 1S 300mAh battery. In this test, the discharge current is 9A. It was seen to have double the time (about 2 minutes) with the BT2.0 connector.
