Osprey Antenna 5.8GHz 140mm ipexUFL - LHCP - Black

Osprey 5.8GHz 140mm ipexUFL Antenna - LHCP - Black

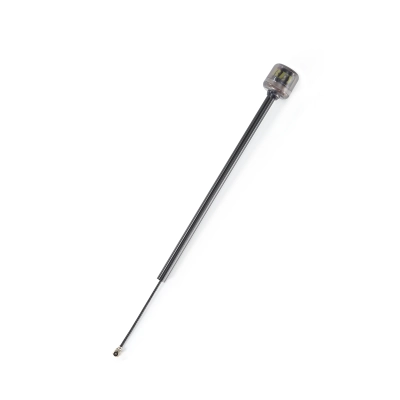

FlyFishRC Osprey Antenna – Lightweight and Efficient FPV Antenna

With its lightweight design and new 4-leaf structure, the FlyFishRC Osprey antenna provides excellent signal depth, high power, and clear transmission. It is now available for FPV pilots at an exceptionally attractive price.

The Osprey model stands out with its transparent casing, unique hybrid structure, and compact dimensions – 14.1 mm diameter x 14 mm height.

Despite its small size and low weight, the antenna offers impressive performance – a gain of 2.8dBi and 99% radiation efficiency. It outperforms most competing models, and its advanced design ensures nearly perfect circular polarization, resulting in better range and signal strength.

The frequency range of 5.6GHz-6.0GHz covers the entire 5.8GHz FPV band, guaranteeing a stable and clear signal regardless of the chosen frequency.

The casing is made of impact-resistant polycarbonate, and the sealed construction effectively protects the internal components of the antenna.

Specifications:

• Gain: 2.82dBi
• Frequency: 5.8GHz
• VSWR: ≤1.2:1
• Radiation Efficiency: 99%
• Polarization: RHCP
• Connector: UFL (Ipex 1)
• Head Dimensions: 14.1 mm diameter x 14 mm height
• Total Length: 154 mm
• Cable: RG1.13 coax protective cover
• Weight: 3.56 g

Package Contents:

• 1x FlyFishRC Osprey 5.8GHz ipex/UFL FPV Antenna - LHCP 140mm
