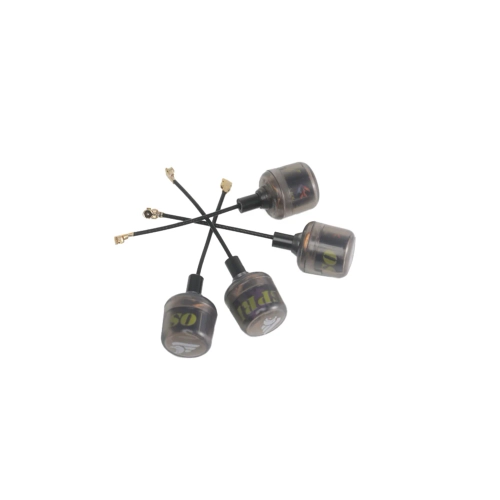

Osprey 5.8GHz 40mm Short Antenna ipex/UFL RHCP

Short Osprey Antenna 5.8GHz 40mm ipex/UFL RHCP

FlyFishRC Osprey Antenna – lightweight, efficient, and compact FPV antenna

With its lightweight construction and new 4-leaf design, the FlyFishRC Osprey antenna offers excellent signal depth, high power, and clear transmission, now available for pilots at an exceptionally attractive price.

The Osprey model stands out with its transparent casing, unique hybrid structure, and smaller size compared to other 5.8GHz CP antennas. The head dimensions are 14.1mm in diameter x 14mm in height.

Despite its small size and low weight, the antenna offers impressive performance – gain of 2.8dBi and up to 99% radiation efficiency. In many aspects, it surpasses competing models, and its advanced design ensures almost perfect circular polarization, resulting in better range and wider signal.

The frequency range of 5.6GHz-6.0GHz covers the entire 5.8GHz FPV band, guaranteeing a stable and clear signal regardless of the chosen frequency.

The casing is made of impact-resistant polycarbonate, and the sealed design effectively protects the internal components of the antenna.

Specifications:

• Gain: 2.82dBi
• Frequency: 5.8GHz
• VSWR: ≤1.2:1
• Radiation Efficiency: 99%
• Polarization: RHCP
• Connector: IPEX/UFL
• Head Dimensions: 14.1mm in diameter x 14mm in height
• Total Length: 40mm
• Cable: durable RG141 coax
• Color: transparent black
• Weight: 2.1g

Package Contents:

• 1x FlyFishRC Osprey 5.8GHz ipex/UFL Stubby Antenna – RHCP 40mm
