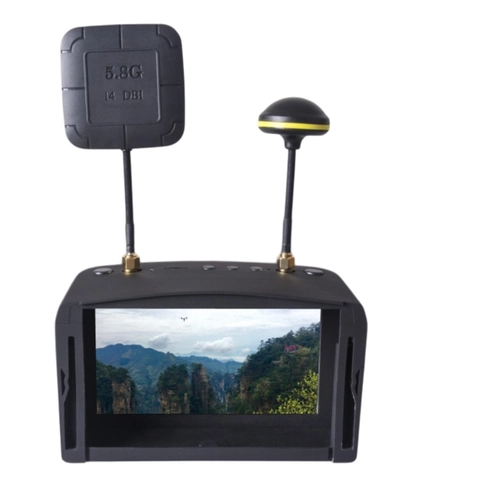

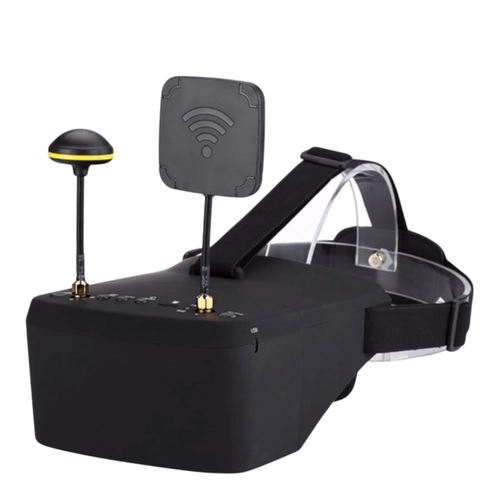

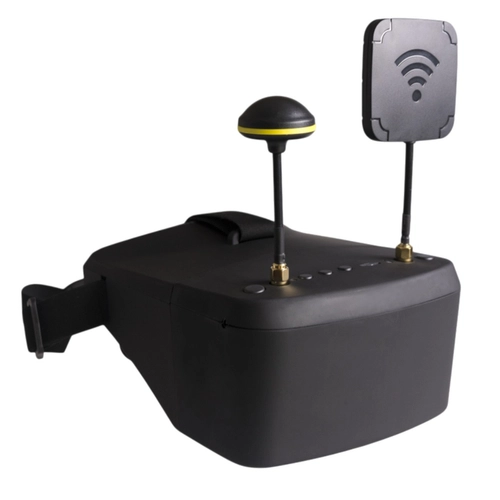

Kimpok Goggle FPV 800D

Kimpok Goggle FPV 800D – 5.8GHz FPV Goggles with DVR and 5-Inch LCD Screen

Kimpok Goggle FPV 800D is a practical analog FPV goggle set designed for hobby pilots who want a clear live view, low latency, and built-in flight recording without the need for an extra DVR unit. With a 5-inch LCD display, 40-channel 5.8GHz receiver, dual receiving module, and integrated DVR, this model is a great fit for FPV flying, drone setup, bench testing, and reviewing recorded footage after each session.

The Kimpok 800D combines ease of use with the features FPV users actually need: 800 x 480 resolution, auto frequency search, RaceBand support, and a built-in 7.4V 1430mAh battery. It is a solid choice for anyone looking for dependable analog FPV goggles for casual flights, training, and hobby drone use.

Main Benefits of Kimpok Goggle FPV 800D

• 5-inch LCD screen for comfortable FPV viewing.
• 800 x 480 px resolution for a clear and readable image.
• Low latency under 20 ms for near real-time video response.
• 5.8GHz receiver with 40 channels, including RaceBand.
• Dual receiver module for improved signal stability.
• Built-in DVR for recording FPV video directly to a TF card.
• Support for TF cards up to 32GB for convenient footage storage.
• Built-in 7.4V 1430mAh battery for portable operation.
• Auto channel scan for faster setup.
• Fresnel 2.8x lens for a larger viewing experience in a compact headset design.

5-Inch LCD Screen and Low-Latency FPV Viewing

Kimpok Goggle FPV 800D features a 5-inch LCD display with 800 x 480 px resolution and a 16:9 aspect ratio, delivering a sharp and natural video view during FPV sessions. The 300 cd/m² brightness with LED backlighting helps keep the image visible and comfortable to watch, while the 2.8x Fresnel lens enlarges the image without excessive distortion.

With video latency below 20 ms, the image reaches the pilot almost instantly. That makes a real difference during dynamic FPV flying, obstacle avoidance, and precise control when every split second matters.

• 5-inch LCD display for immersive FPV viewing.
• 16:9 format for a natural widescreen image.
• 300 cd/m² brightness for clear visibility.
• Under 20 ms latency for responsive real-time flying.
• 2.8x Fresnel lens for enhanced image magnification.

5.8GHz Receiver, 40 Channels, and More Stable Signal Reception

These FPV goggles come with a sensitive built-in 5.8GHz receiver supporting 40 channels, including RaceBand. This makes it easier to match your goggles with a compatible VTX and reduce interference when multiple FPV systems are operating nearby.

The dual receiver module helps improve signal stability, while the automatic frequency scan quickly finds an active channel. It is especially useful during first-time setup, VTX changes, or when switching between different models.

Built-In DVR for Recording Your FPV Flights

The built-in DVR recorder allows you to save analog FPV footage directly to a TF card. It is a useful feature for archiving flights, analyzing your route, checking signal quality, or reviewing camera settings after a session.

The goggles support TF cards up to 32GB, with a Class 10 card recommended. Recordings are saved in AVI format using MJPEG compression at 30 fps. Users can also choose the recording size, enable or disable audio recording, and set the length of individual files.

• Built-in DVR for direct FPV video recording.
• TF card support up to 32GB.
• AVI recording format.
• MJPEG compression.
• 30 fps recording for smooth playback.
• Selectable recording sizes: VGA, D1, or HD.
• Optional audio recording on or off.

Built-In Battery and User-Friendly Operation

Kimpok 800D goggles are powered by an integrated 7.4V 1430mAh Li-ion polymer battery. Battery life depends on how you use the goggles: approximately 2.5 hours with DVR enabled and around 3.5 hours with DVR turned off. Charging is done via the DC055 connector using 12V DC power.

Operation is simple and intuitive thanks to the buttons placed on the housing. You can quickly access the menu, start auto scan, begin recording, switch bands, and change channels. The menu supports 8 languages, and the goggles also offer an external video input and audio output.

Technical Specifications

What’s Included and Important Information Before Use

The Kimpok Goggle FPV 800D set includes FPV goggles with a built-in battery, a head strap, and the antennas included in the package. It is a ready-to-use base for receiving analog 5.8GHz video transmission—you only need a compatible VTX transmitter and a memory card if you want to use the DVR recording function.

• Kimpok 800D FPV goggles with built-in LCD screen – 1 pc
• Omnidirectional antenna – 1 pc
• Directional antenna – 1 pc
• Head strap – 1 pc
• Built-in 7.4V 1430mAh battery – 1 pc

The goggles should only be charged through the DC055 port using 12V DC. This product is not a toy and is recommended for users aged 14 and above. Avoid using it in wet environments. Please note that the audio output and AV video input do not work at the same time, and the DVR does not record video fed through the AV port.
