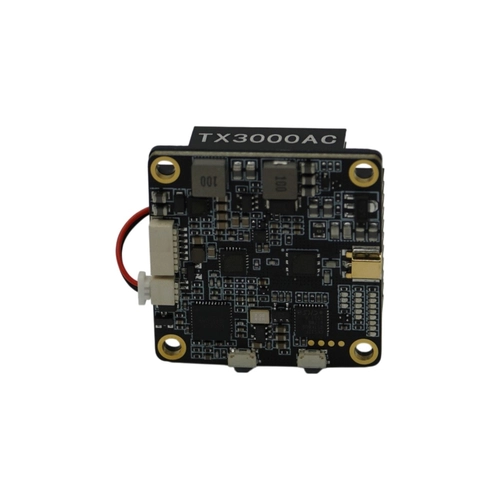

Kimpok Analog TX3000AC Transmitter

Kimpok TX3000AC is a high-power analog FPV video transmitter designed for hobby pilots who need strong, stable video transmission in more demanding setups. With adjustable output power up to 3000 mW, Smart Audio support, OSD configuration, and a built-in cooling fan, this VTX is a great choice for freestyle, long-range projects, and custom FPV drone builds.

The All Channels version gives you broad frequency flexibility, making it easier to match your VTX to your FPV receiver, reduce interference, and fine-tune your setup without taking the whole model apart. If you want a powerful analog VTX with practical everyday features, the TX3000AC is built to deliver.

Key Benefits of the Kimpok TX3000AC

• Up to 3000 mW output power for strong analog FPV signal performance.
• 6 selectable power levels for tuning the transmitter to your flying conditions.
• Smart Audio support for easy setup through OSD.
• Pit Mode for safer bench setup and race-day preparation.
• Built-in cooling fan to help maintain stable operation at higher power.
• All Channels version with 10 bands and 8 channels per band.
• 5 V camera output for convenient integration in FPV builds.
• 30.5 x 30.5 mm mounting pattern for compatibility with many popular FPV frames.

Adjustable Power up to 3000 mW

The Kimpok TX3000AC lets you choose from six transmission power levels, so you can easily match output power to the way you fly. Lower settings are useful for setup, bench testing, and short-range flights, while higher settings offer more signal reserve when flying in tougher conditions or over longer distances.

This flexibility makes the TX3000AC a practical analog VTX for pilots who want better control over signal strength, heat management, and power usage. It also helps you operate within local radio regulations where required.

• 25 mW – ideal for setup, testing, and close-range work.
• 250 mW – a practical option for shorter FPV flights.
• 500 mW – a balanced setting between signal strength and power draw.
• 1000 mW – higher output for more challenging environments.
• 2000 mW – strong signal performance for longer-distance flying.
• 3000 mW – maximum output for long-range style applications.

Smart Audio, OSD Control, and Pit Mode

Thanks to Smart Audio support, you can change the channel, band, and power level directly from your OSD. This is especially useful in FPV drones where the transmitter is mounted deep inside the frame and physical button access is limited after assembly.

The unit also supports Pit Mode, which is handy when setting up your gear before flight or working around other pilots. A soft-start function activates the power amplifier after about 5 seconds, helping reduce the risk of stress on the module when powering up.

• Smart Audio support for convenient OSD-based configuration.
• Change power, channel, and band without direct access to the transmitter.
• Pit Mode for safer setup and service work.
• Soft-start delay of around 5 seconds.
• Direct control via Up and Down buttons on the module.

All Channels Version for Flexible Frequency Selection

The Kimpok TX3000AC All Channels version offers a wide frequency selection with 10 bands and 8 channels per band. That gives you plenty of flexibility when matching the transmitter to your FPV receiver or finding a cleaner frequency in environments where multiple systems are in use.

Current settings are shown using LED indicators, so you can quickly check your configuration without connecting a computer. The transmitter uses 8 blue LEDs for channels, 5 green LEDs for bands, and 3 red LEDs for power level indication.

Built-In Cooling, Power Input, and Compact Mounting Format

The TX3000AC features a built-in cooling fan to help keep the transmitter working reliably at higher output levels. This is especially important in high-performance VTX modules, which can generate significant heat during operation. For safe use, always connect the antenna before powering on the unit and do not remove the cooling fan.

The transmitter supports an input voltage of 14–28 V, with the manufacturer recommending at least a 6S battery. It also provides a 5 V output for a camera with a load below 500 mA. The compact 36 x 36 mm board size and 30.5 x 30.5 mm mounting hole pattern make installation easier in many popular FPV frames.

What’s Included

The package includes the essential parts needed to connect the transmitter in a typical FPV setup. The antenna should be selected separately based on your receiver, intended use, and preferred operating range. Before installation, it is a good idea to double-check the power wiring, video input, and Smart Audio line.

• Kimpok TX3000AC analog transmitter – 1 pc
• Connection cable – 1 pc
• MMCX pigtail cable – 1 pc

Important Usage Notes

Always connect the antenna before turning on the transmitter. Do not remove the cooling fan, and make sure the module has proper airflow, especially when running at higher power levels. The transmitter may become hot during operation, so avoid touching it directly right after power-up. Use only frequencies and output power levels that are allowed under your local radio regulations.
