Kimpok Analog Transmitter KP-T2402

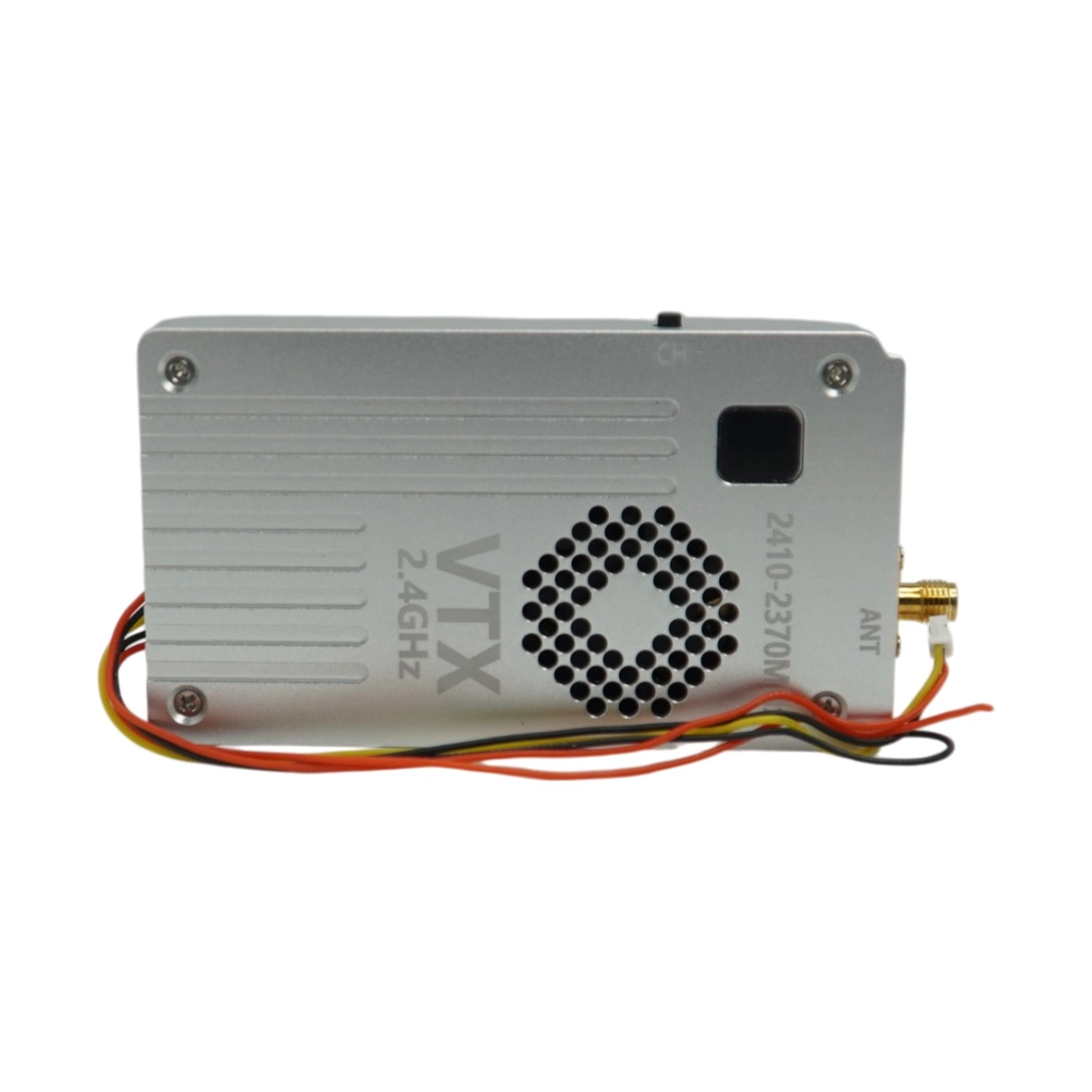

Kimpok KP-T2402 Analog FPV Video Transmitter 2.4GHz 2W

The Kimpok KP-T2402 is a powerful analog FPV video transmitter designed for drones, UAV platforms, RC models, and custom video transmission projects that need a stable image link in the 2.4GHz band. With 2W output power, it offers a stronger signal reserve than entry-level low-power transmitters, making it a great choice for hobbyists building their own FPV setup and looking for dependable analog video performance.

This analog VTX is made for users who want to create a custom FPV video system with carefully selected antennas, receiver, and power supply. The KP-T2402 operates on 8 channels in the 2370-2410MHz range, runs on DC 12V, and draws approximately 900mA. It is a practical solution wherever low-latency analog video, straightforward installation, and operation outside the common 5.8GHz FPV band are important.

2W Output Power for a More Stable FPV Video Link

The standout feature of the Kimpok KP-T2402 is its 2W transmission power. This gives you more signal headroom compared to 100mW or 1W transmitters, which can be especially useful in more demanding hobby FPV builds. If you are putting together your own analog camera system and want a stronger, more stable video feed, this model is a solid pick.

• 2W output power - stronger signal for more demanding FPV configurations.
• Analog video transmission - low latency that matters during real-time flying and testing.
• 2.4GHz operating band - an alternative to the more common 5.8GHz FPV gear.
• Reliable VTX operation - suitable for custom-built analog video systems.
• Great for drones and UAVs - a practical choice for RC models, test platforms, and FPV projects.

8 Channels in the 2370-2410MHz Range

The Kimpok KP-T2402 supports 8 selectable channels across the 2370-2410MHz frequency range. This gives you more flexibility when matching the transmitter with a compatible receiver and the right antenna setup. Channel selection is especially important in hobby projects where the video link needs to be tuned to a specific radio environment and the rest of the onboard equipment.

• 8 working channels - easier frequency matching in an analog FPV video system.
• 2370-2410MHz frequency range - operation in the 2.4GHz band.
• Built for analog FPV - designed to transmit video from an analog camera.
• Custom system friendly - lets you choose the receiver and antennas for your build.
• Stable video path - with proper installation and matching accessories, it provides a dependable FPV view.

DC 12V Power Input and Metal Housing

The KP-T2402 is powered by DC 12V and consumes around 900mA. This is important when planning installation in a drone or UAV platform, as the transmitter requires a stable power source with sufficient current capacity. Its slim metal housing helps with installation and supports heat dissipation during operation.

• DC 12V input - easy to integrate into builds with a separate video system power supply.
• Approx. 900mA current draw - an important parameter when designing the power setup.
• 98 x 55 x 18mm dimensions - larger housing sized for 2W operation.
• Approx. 104g weight - useful to know when planning balance and center of gravity.
• Modular-style enclosure - convenient for FPV systems, UAV projects, and fixed video transmission setups.

Kimpok KP-T2402 Technical Specification

Package Contents and Recommended Use

The Kimpok KP-T2402 is a good fit for hobby users building an analog 2.4GHz FPV system and needing a 2W transmitter for a stronger video link. It works well in projects where signal stability, low latency, and the freedom to choose your own receiver and antenna setup matter most.

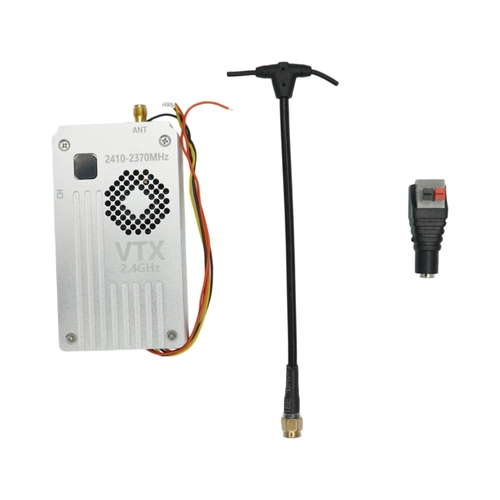

• Kimpok KP-T2402 analog transmitter - 1 pc.

Important: Before powering on the transmitter, make sure a compatible antenna is connected, use a receiver that supports the same frequency range, and provide a stable DC 12V power source. You should also verify that the selected frequency range and transmission power comply with your local radio regulations.
