Frame Channel for BetaFPV Pavo20 (Gray - Transparent)

BETAFPV Pavo20 Frame Duct (Transparent Grey)

Upgrade or refresh your BETAFPV Pavo20 with this lightweight and durable frame duct in transparent grey, designed for pilots who want reliable protection, clean airflow, and a modern cinewhoop look. Built for the Pavo20 Brushless Whoop Frame, this 2-inch platform was developed for DJI O3 setups under 150 g and is also compatible with Caddx Vista and RunCam Link. Thanks to its redesigned structure, reinforced protective ducts, and aerodynamic layout, it helps deliver better durability and a more confident flying experience.

Key Features

• Designed for BETAFPV Pavo20 – a dedicated duct/frame component for the Pavo20 Brushless Whoop platform.
• Transparent grey finish – stylish, modern look that gives your cinewhoop a distinctive appearance.
• Optimized for DJI O3 cinewhoop builds – developed for a 2-inch setup weighing under 150 g.
• Compatible with popular HD VTX systems – supports DJI O3, Caddx Vista, and RunCam Link.
• Durable PA12 construction – strong, impact-resistant material built for demanding hobby use.
• Reinforced aerodynamic ducts – improved protection while helping maintain efficient airflow.
• Integrated HD VTX mount – easier installation with less need for screw adjustment.
• 4-point camera side panel protection – helps protect the lens and keeps camera angle more stable during harder flights.
• ND filter support – convenient compatibility for pilots shooting smoother cinematic footage.
• Secure battery strap slot – open battery mounting slot with side limiters for a firm and stable fit.

Note: 2–4S compatibility applies to the Pavo20 frame platform. The Pavo20 quadcopter itself supports 3S batteries only.

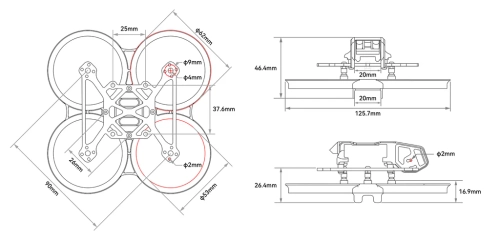

Specifications

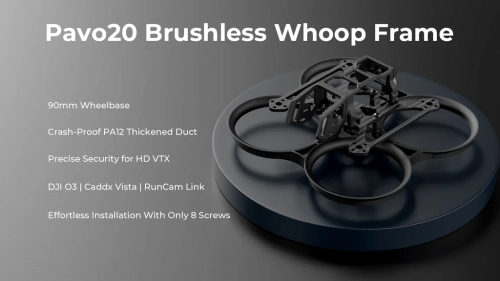

• Product: Pavo20 Brushless Whoop Frame
• Wheelbase: 90 mm
• Material: PA12 / PP
• Weight: 26.7 g (with HD VTX mount), 13.8 g (protective duct), 4.1 g (HD VTX mount only)

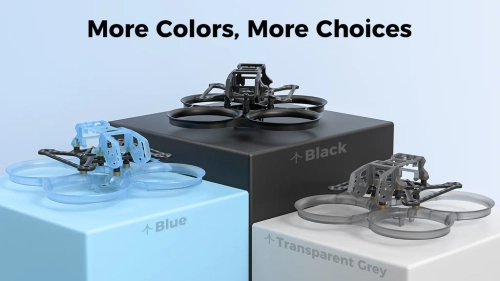

• Color: Black / Blue / Transparent Grey
• Top plate thickness: 2 mm
• Camera size: 19 mm / 20 mm
• Camera filter support: Yes
• FC mounting: 26 × 26 mm, suitable for standard whoop FCs
• Motor mounting: 4-M2-φ9 mm
• Battery slot width: 20 mm

Compatible HD VTX Systems

The Pavo20 platform supports several popular HD video transmission systems, making it a flexible choice for FPV pilots. It is compatible with DJI O3 Air Unit for high-quality HD recording and transmission, Caddx Vista for low-latency FPV performance, and RunCam Link for versatile digital FPV builds.

Precision Protection for HD Camera Setups

The side camera panels and 4-point mounting structure are designed to better protect the lens during flights while making ND filter installation quick and easy. This helps maintain consistent camera positioning even after more aggressive flying. The integrated brass nut construction, formed using injection molding, improves installation convenience and reduces the need for repeated screw adjustment. The open battery strap slot fits a wide range of battery sizes, while side limiters help prevent battery movement in flight.

Note: 2–4S compatibility refers to the Pavo20 frame only. The Pavo20 quadcopter supports 3S batteries only.

Vibration behavior and recommended solutions for the Pavo20 are similar to those found on the Pavo Pico. If you are building around the DJI O3 system, it is worth reviewing vibration-related setup guidance for the Pavo Pico DJI O3 platform as well.

Integrated HD VTX Mount

The integrated HD VTX mount uses a brass nut design for easier assembly and a more secure fit. Paired with half-thread screws, it minimizes the need for readjustment, improves anti-vibration performance, and helps maintain a more stable HD image in flight. It is also compatible with the Pavo Pico platform.

Pavo Series COB LED Strip Support

The Pavo Series COB LED Strip is a 5V LED strip measuring 560 mm x 4 mm, created to add extra visibility and style to your build. It can be securely mounted to the frame for improved visibility in low-light conditions or night flying, while also giving your cinewhoop a custom look. Available colors include Ice Blue, White, Green, and Red, with mix-and-match options for even more personalization.

DJI O3 Camera ND Filter Support

The BETAFPV ND Filter for DJI O3 Camera is designed specifically for the Pavo20 and Pavo Pico Brushless Whoop platforms. These lightweight filters are made from high-quality optical glass and help reduce the amount of light entering the lens, allowing for improved exposure control and more cinematic footage during flight. They are easy to install and make a great addition for pilots using the DJI O3 Air Unit.

Recommended Parts

• FC & ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
• Motors: 1103 | 8000KV / 8500KV / 11000KV
• Propellers: GF 2015-2B, GF 2020-4B
• Battery: 2S–4S 450mAh–650mAh, LAVA 4S 450mAh 75C, LAVA 4S 550mAh 75C
• VTX: DJI O3, Caddx Vista, RunCam Link
• Filter: BETAFPV ND Filter

Package Contents

• Pavo20 Brushless Whoop Frame | Whoop Duct
• 1 x Pavo20 Whoop Duct
• 1 x 130 mm Battery Strap
• 2 x Anti-slip Battery Pads
