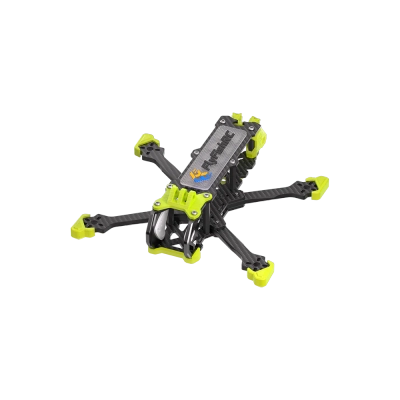

FlyFishRC Volador VX3 3'' O4 Pro Freestyle frame (yellow)

FlyFishRC Volador VX3 3" O4 Pro Freestyle Frame (Yellow)

Meet the FlyFishRC Volador VX3 3" O4 Pro freestyle frame in a bold yellow finish — a compact FPV platform built to deliver a flight feel inspired by larger 5-inch quads, while keeping the build clean, lightweight, and highly practical. Designed for hobby pilots who want sharp handling, solid compatibility, and a tidy setup, this frame makes building an FPV drone easier and more enjoyable from the start.

The Squashed X geometry gives you excellent control and balanced freestyle performance, while broad support for both analog and HD systems makes it a flexible choice for different build styles. Carefully designed TPU components help create a more integrated, organized, and visually polished final build.

For DJI users, the frame includes a specially designed silicone damping plate for the DJI O4 Air Unit camera, helping reduce unwanted “jello” in DVR footage. It is also compatible with 19mm / 20mm camera formats, giving you more freedom when choosing your FPV setup.

The structure combines high-strength CNC aluminum alloy parts with premium T700 carbon fiber plates. The carbon features a super-smooth finish and evenly chamfered edges, which not only looks great but also helps protect wires and battery straps from damage during builds and hard sessions.

The kit comes with the essential accessories needed for both analog and HD builds, and the Loctite-treated mounting hardware adds extra reliability. Its compact construction also helps minimize resonance for a more refined flying experience.

Key features:

• 3" freestyle frame with a responsive, locked-in flight character
• Squashed X layout for excellent control and balanced handling
• Compatible with analog and HD FPV systems
• Silicone-damped mount designed for the DJI O4 Air Unit camera
• Supports 19mm / 20mm FPV cameras
• Premium T700 carbon fiber with smooth, chamfered edges
• High-strength CNC aluminum side plates for added durability
• Integrated TPU parts for a cleaner and more professional-looking build
• Loctite-applied mounting hardware for improved reliability
• Compact design engineered to reduce resonance

VX3 / VX3.5 specification:

• Arm thickness: 3.5 mm
• Top plate thickness: 2 mm
• Center plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 3.5 mm
• CNC side plate thickness: 5 mm
• Propeller size: 3–3.5 inch
• Material: T700 carbon fiber plate
• FPV camera width: 19mm / 20mm
• VX3 weight: 68.3 g (with TPU parts)
• VX3.5 weight: 70.5 g (with TPU parts)
• Color: Yellow / Black
• VX3 overall dimensions: 118 × 135 mm, wheelbase: 144 mm
• VX3.5 overall dimensions: 127.5 × 148 mm, wheelbase: 160 mm
• Stack mounting holes: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• VTX mounting holes: 20 × 20 mm / 25.5 × 25.5 mm (M2)

What’s included:

• 1× Volador VX3 / VX3.5 frame kit
