Frame channel for BetaFPV Pavo20

Frame channel for BetaFPV Pavo20

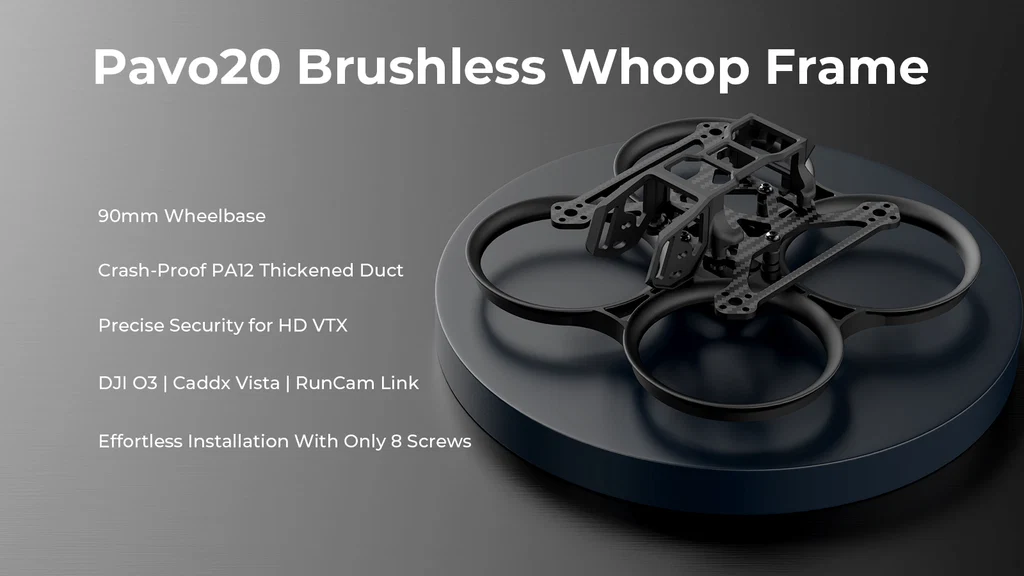

The Pavo20 Brushless Whoop frame is designed for a 2-inch DJI O3 cinewhoop weighing less than 150 g. It is also compatible with Caddx Vista and RunCam Link and has undergone a comprehensive redesign to guarantee precise protection. The frame, made of crash-resistant PA12 material, has a reinforced whoop channel with a cross-section that has been ingeniously designed according to aerodynamic principles, providing excellent synergy with the improved 3S power system. This combination provides an unparalleled level of thrust that exceeds all expectations. Undoubtedly, it becomes the best choice for demanding pilots who want to take their DJI O3 cinewhoop experience to unprecedented heights.

Features

• Integrated injection molded HD VTX mounting bracket eliminates the hassle of adjusting screw tightening and seamless installation. The original transmission antenna can be mounted directly on the frame kit.
• Constructed of crash-resistant PA12 thickened whoop duct. Reinforced cross-sectional design increases strength and crashworthiness, taking advantage of aerodynamic principles and working perfectly with the improved power system.
• The camera's side panel and 4-point mount design effectively protects the lens, while allowing easy installation of ND filters, eliminating any concerns about angle deviation after intensive flights.
• Open battery strap opening, including side stop holes, provides secure and stable battery placement to accommodate a wide range of batteries. DIY enthusiasts can even use 2~4S batteries.

Note: 2-4S is for Pavo20 frame, this Pavo20 quadrocopter only supports 3S batteries.

Specification

• Item: Pavo20 Brushless Whoop Frame
• Wheelbase: 90mm
• Material: PA12/PP
• Weight: 26.7 g (with HD VTX mount), 13.8 g (Whoop channel), 4.1 g (HD VTX mount only)

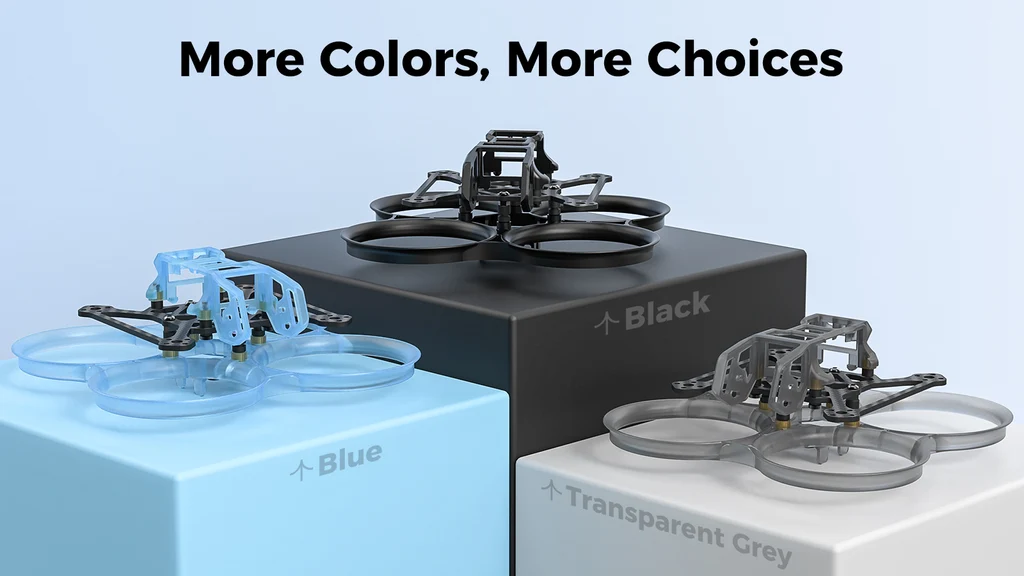

• Color: Black/Blue/Transparent Gray
• Thickness of the top plate: 2mm
• Camera: 19mm/20mm
• Camera Filter: Support
• FC mount: 26×26 mm, suitable for conventional whoop FC
• Motor mount: 4-M2-φ9mm
• Battery slot width: 20 mm
